Manual control

It is possible to use the VG10 completely without URCAP and script commands. This is

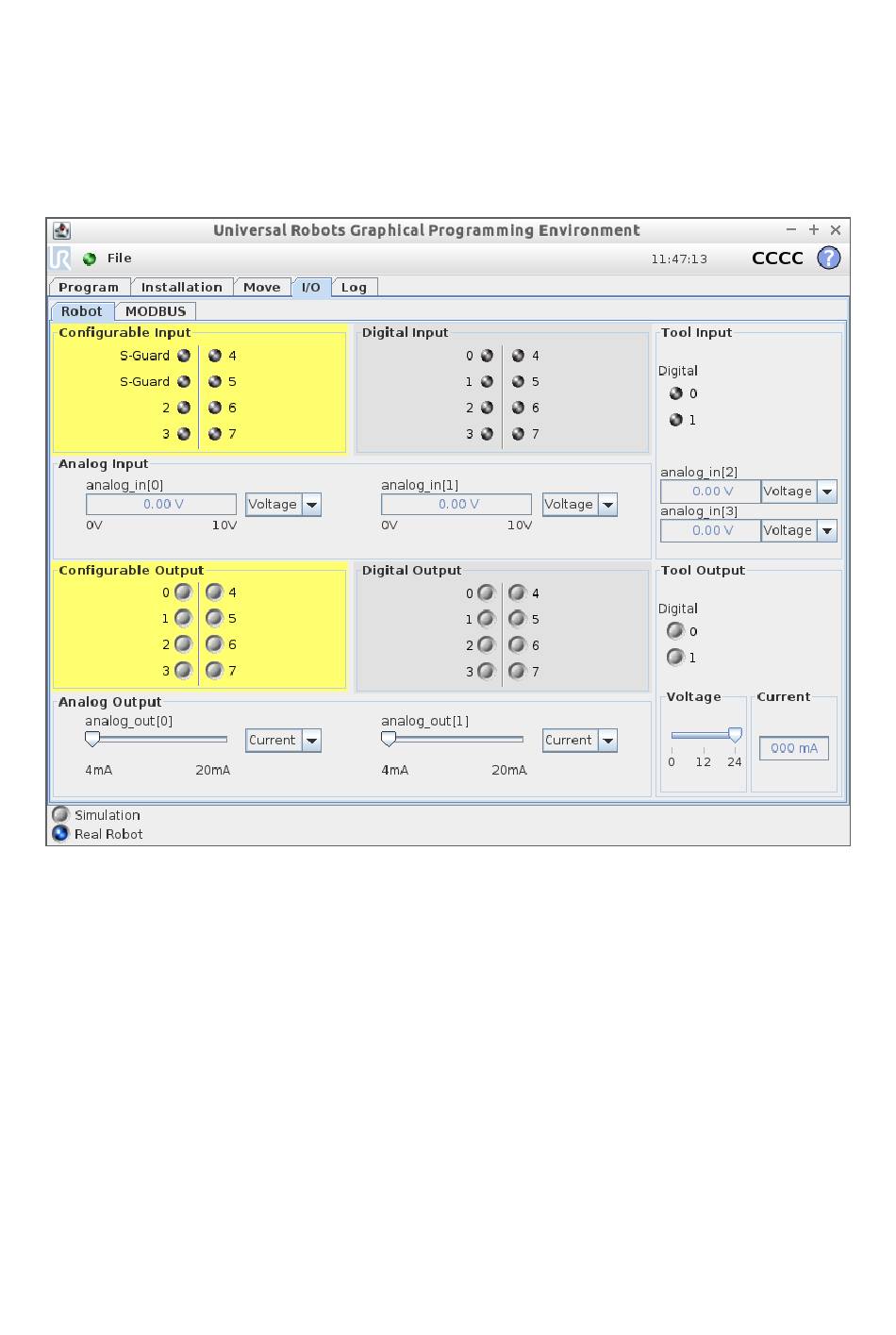

done by controlling the UR tool I/O directly, see UR tool I/O tab on the right side of
the screenshot below.
The UR I/O tab provides some basic manual features:
•
TAI0 = Analog_in[2] = Vacuum in channel A (1V per 10% vacuum)
•
TAI1 = Analog_in[3] = Vacuum in channel B (1V per 10% vacuum)
•
TO0 = Tool_digital_out[0] = On/Off control channel A (vacuum preset to 60%)
•
TO1 = Tool_digital_out[1] = On/Off control channel B (vacuum preset to 60%)
•
TI0 = Tool_digital_input[0] = Vacuum present channel A (Vacuum > 40%)
•
TI1 = Tool_digital_input[1] = Vacuum present channel B (Vacuum > 40%)
To use the basic manual features, the following must be observed:
•
Tool digital I/O only works without the URCap installed
•
The tool analog input range must be set to voltage [0-10V]
•
The tool voltage must be set to 24V
•
Reset the VG10 by turning the tool voltage off (0V) and then on again (24V)
