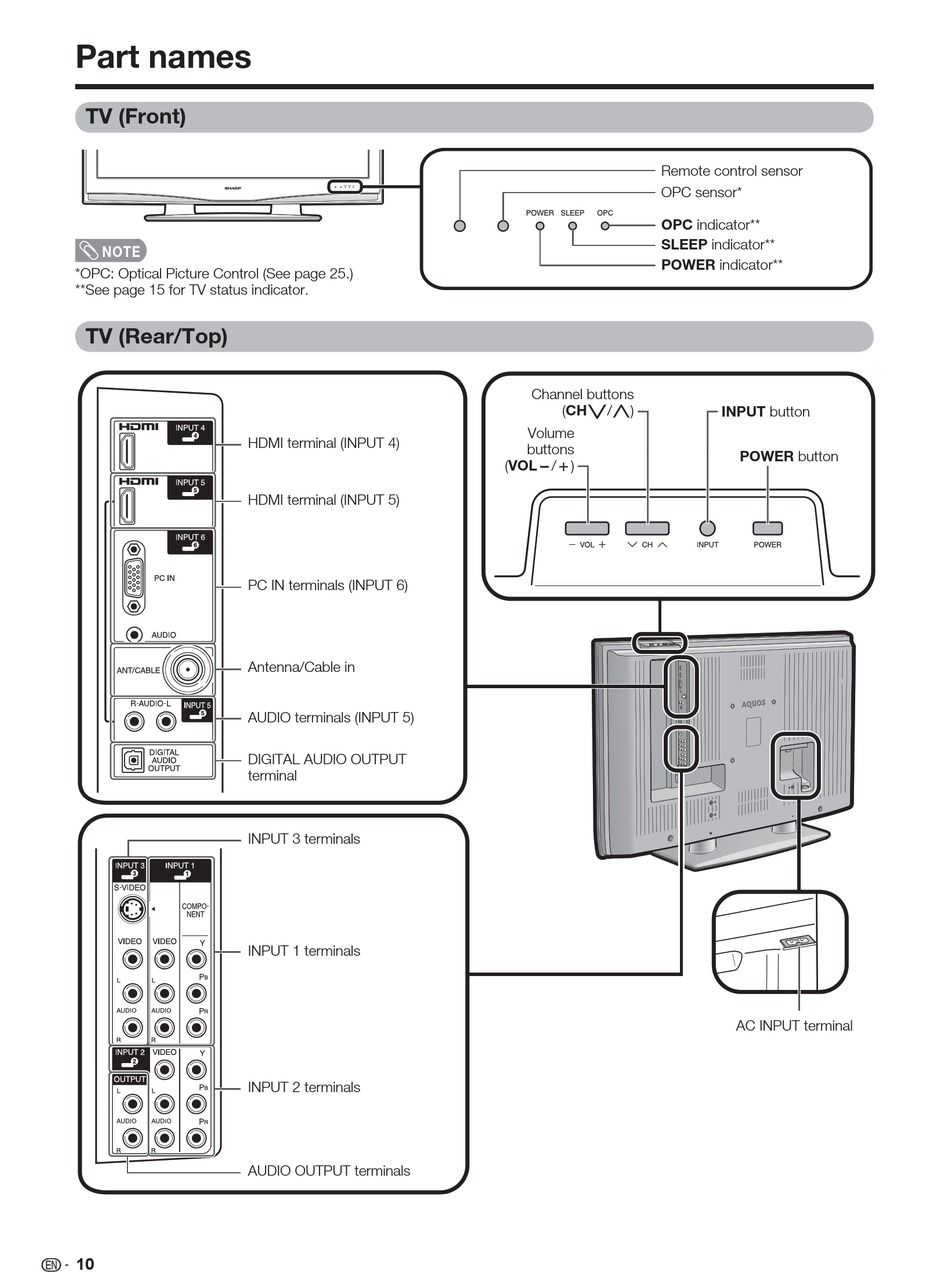

Part names

TV (Front)

NOTE
*OPC: Optical Picture Control (See page 25.)
**See page 15 for TV status indicator.

TV (Rear/Top)

HDMI terminal (INPUT 4)
HDMI terminal (INPUT 5)
PC IN terminals (INPUT 6)
Antenna/Cable in
AUDIO terminals (INPUT 5)
DIGITAL AUDIO OUTPUT
terminal
INPUT 3 terminals
INPUT 1 terminals
INPUT 2 terminals
AUDIO OUTPUT terminals
10
Remote control sensor
OPC sensor*
OPC indicator**
SLEEP indicator**
POWER indicator**
Channel buttons
(CH
/
)
Volume
buttons
(VOLl/k)
INPUT button
POWER button
AC INPUT terminal
