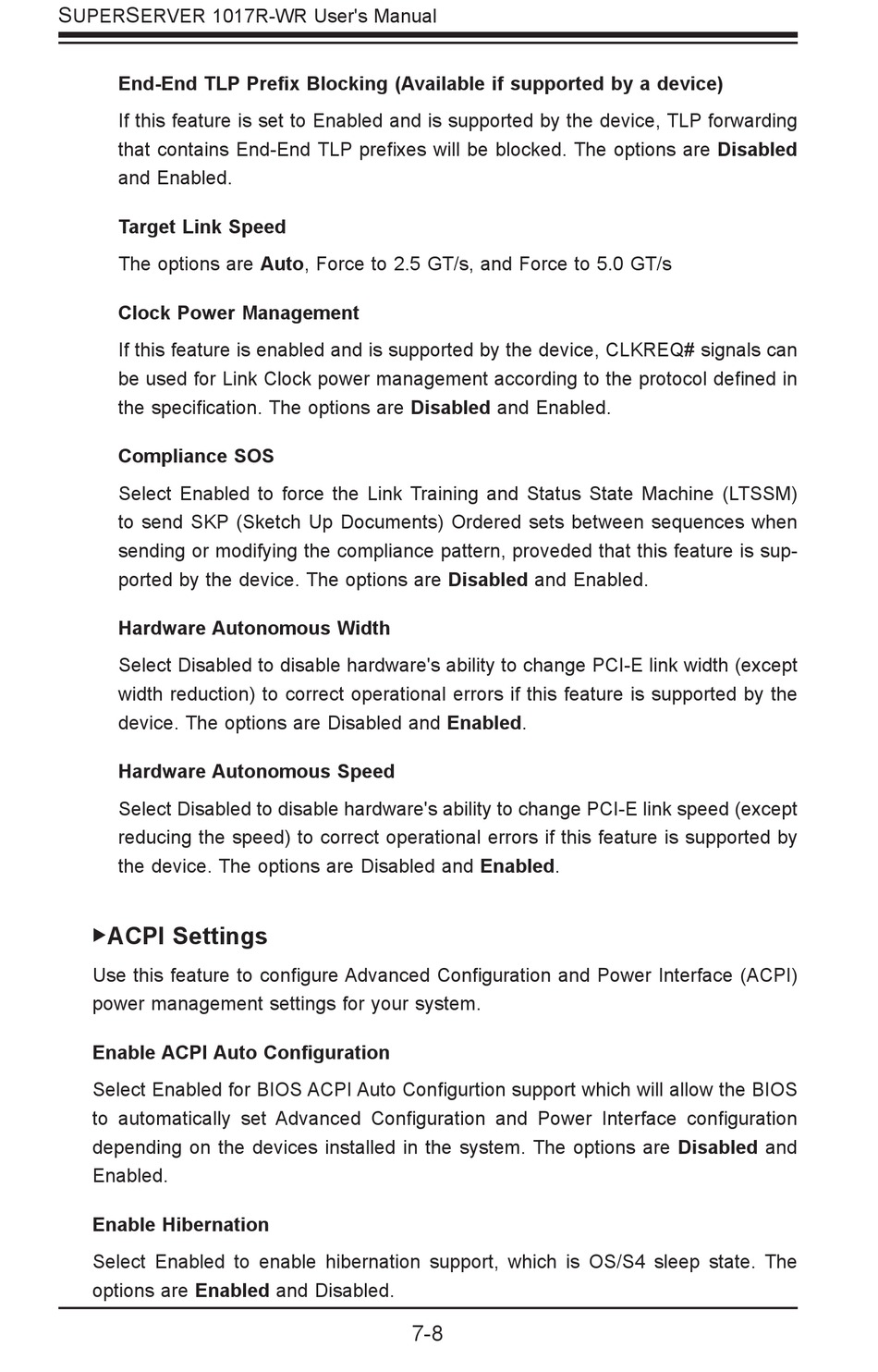

ERVER 1017R-WR User's Manual
End-End TLP Prefix Blocking (Available if supported by a device)
If this feature is set to Enabled and is supported by the device, TLP forwarding
that contains End-End TLP prefixes will be blocked. The options are Disabled
and Enabled.
Target Link Speed
The options are Auto, Force to 2.5 GT/s, and Force to 5.0 GT/s
Clock Power Management
If this feature is enabled and is supported by the device, CLKREQ# signals can
be used for Link Clock power management according to the protocol defined in
the specification. The options are Disabled and Enabled.
Compliance SOS
Select Enabled to force the Link Training and Status State Machine (LTSSM)
to send SKP (Sketch Up Documents) Ordered sets between sequences when
sending or modifying the compliance pattern, proveded that this feature is sup-
ported by the device. The options are Disabled and Enabled.
Hardware Autonomous Width
Select Disabled to disable hardware's ability to change PCI-E link width (except
width reduction) to correct operational errors if this feature is supported by the
device. The options are Disabled and Enabled.
Hardware Autonomous Speed
Select Disabled to disable hardware's ability to change PCI-E link speed (except
reducing the speed) to correct operational errors if this feature is supported by
the device. The options are Disabled and Enabled.
ACPI Settings
Use this feature to configure Advanced Configuration and Power Interface (ACPI)
power management settings for your system.
Enable ACPI Auto Configuration
Select Enabled for BIOS ACPI Auto Configurtion support which will allow the BIOS
to automatically set Advanced Configuration and Power Interface configuration
depending on the devices installed in the system. The options are Disabled and
Enabled.
Enable Hibernation
Select Enabled to enable hibernation support, which is OS/S4 sleep state. The
options are Enabled and Disabled.
7-8
