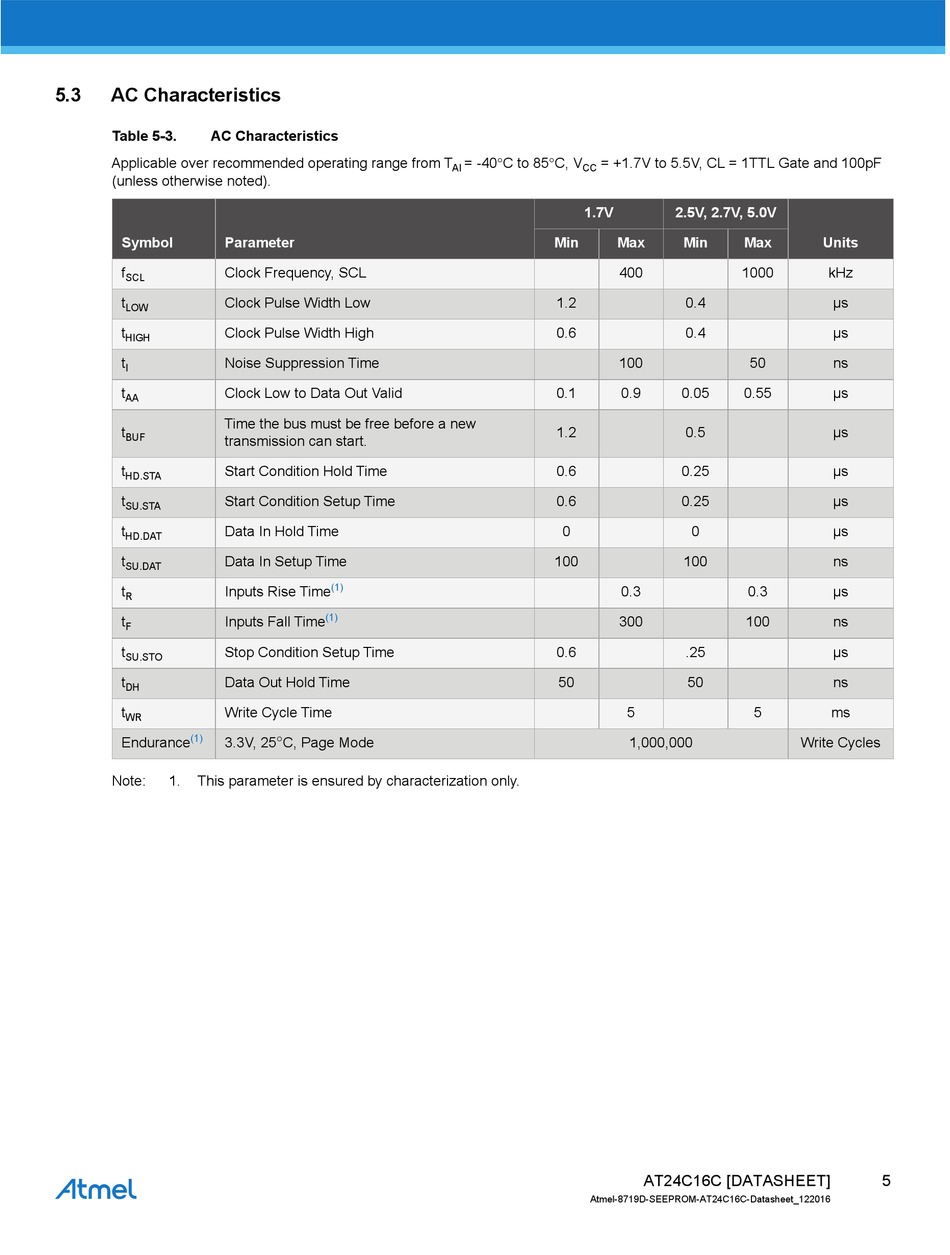

5.3 AC Characteristics
Table 5-3. AC Characteristics
Applicable over recommended operating range from T
(unless otherwise noted).
Symbol Parameter
f Clock Frequency, SCL
SCL
t Clock Pulse Width Low
LOW
t Clock Pulse Width High
HIGH
t Noise Suppression Time
I
t Clock Low to Data Out Valid
AA
Time the bus must be free before a new
t
BUF
transmission can start.
t Start Condition Hold Time
HD.STA
t Start Condition Setup Time
SU.STA
t Data In Hold Time
HD.DAT
t Data In Setup Time
SU.DAT
t Inputs Rise Time
R
t Inputs Fall Time
F
t Stop Condition Setup Time
SU.STO
t Data Out Hold Time
DH
t Write Cycle Time
WR
(1)
Endurance 3.3V, 25
Note: 1. This parameter is ensured by characterization only.
AI
(1)
(1)

C, Page Mode
= -40C to 85C, V = +1.7V to 5.5V, CL = 1TTL Gate and 100pF
CC
1.7V
Min Max
400
1.2
0.6
100
0.1 0.9
1.2
0.6
0.6
0
100
0.3
300
0.6
50
5
1,000,000
Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016
2.5V, 2.7V, 5.0V
Min Max
1000
0.4
0.4
50
0.05 0.55
0.5
0.25
0.25
0
100
0.3
100
.25
50
5
Write Cycles
AT24C16C [DATASHEET]
Units
kHz
μs
μs
ns
μs
μs
μs
μs
μs
ns
μs
ns
μs
ns
ms
