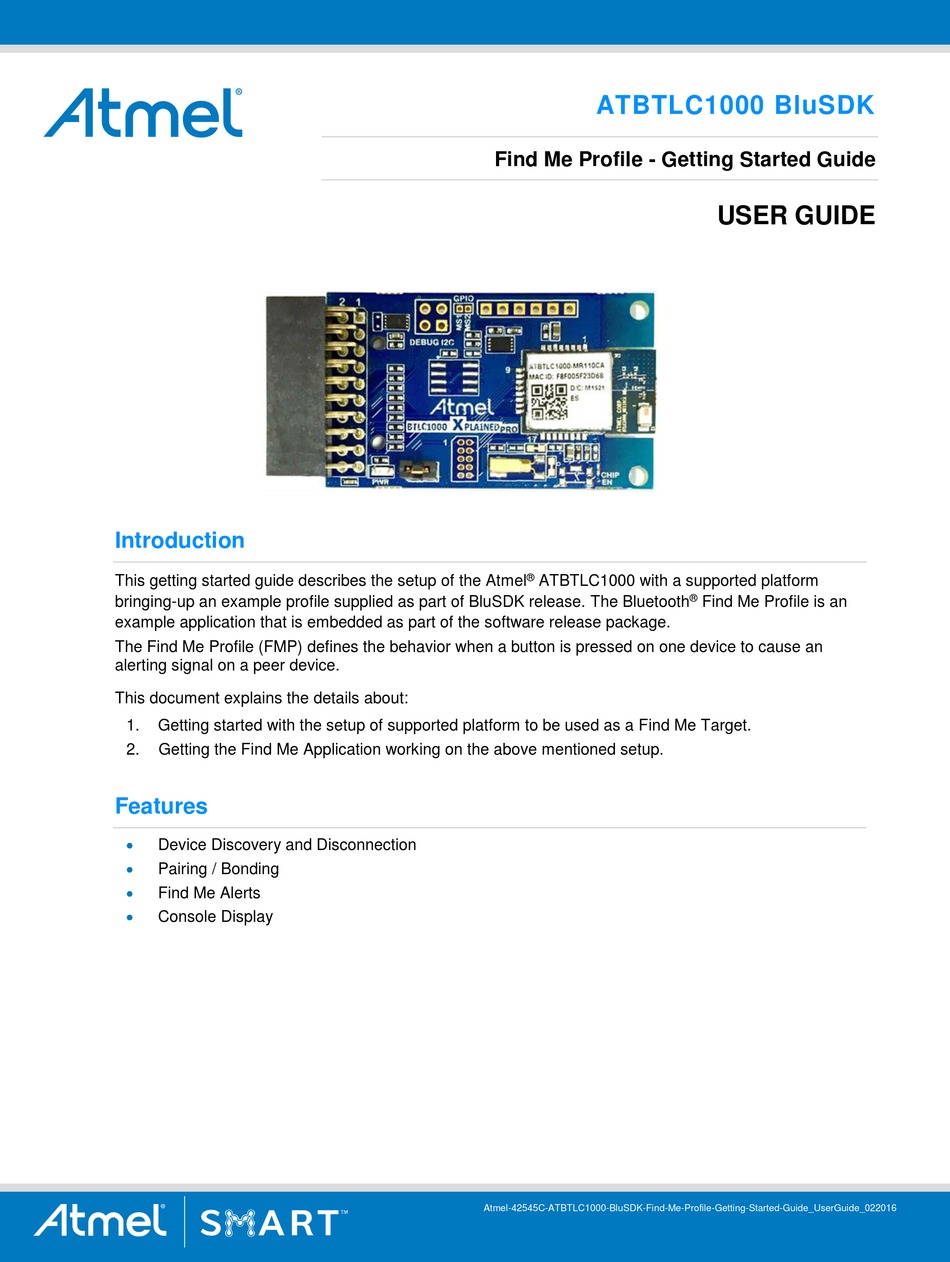

Introduction
This getting started guide describes the setup of the Atmel
bringing-up an example profile supplied as part of BluSDK release. The Bluetooth
example application that is embedded as part of the software release package.
The Find Me Profile (FMP) defines the behavior when a button is pressed on one device to cause an
alerting signal on a peer device.
This document explains the details about:
1.
Getting started with the setup of supported platform to be used as a Find Me Target.
2.
Getting the Find Me Application working on the above mentioned setup.
Features
Device Discovery and Disconnection
Pairing / Bonding
Find Me Alerts
Console Display
ATBTLC1000 BluSDK
Find Me Profile - Getting Started Guide
®
ATBTLC1000 with a supported platform
Atmel-42545C-ATBTLC1000-BluSDK-Find-Me-Profile-Getting-Started-Guide_UserGuide_022016
USER GUIDE
®
Find Me Profile is an
Advertisement
Table of Contents
Related Manuals for Atmel BluSDK ATBTLC1000
Summary of Contents for Atmel BluSDK ATBTLC1000
- Page 1 Find Me Profile - Getting Started Guide USER GUIDE Introduction ® This getting started guide describes the setup of the Atmel ATBTLC1000 with a supported platform ® bringing-up an example profile supplied as part of BluSDK release. The Bluetooth Find Me Profile is an example application that is embedded as part of the software release package.
-
Page 2: Table Of Contents
Build Procedure ............................. 6 Console Logging ....................... 10 Running the Demo ..................... 10 BluSDK Software Architecture.................. 13 ATMEL EVALUATION BOARD/KIT IMPORTANT NOTICE AND DISCLAIMER ..14 10 Revision History ......................15 ATBTLC1000 BluSDK Find Me Profile – Getting Started Guide [USER GUIDE] Atmel-42545C-ATBTLC1000-BluSDK-Find-Me-Profile-Getting-Started-Guide_UserGuide_022016... -
Page 3: Demo Setup
Demo Setup Figure 1-1. Demo Setup for Find Me Profile ATBTLC1000+ iPhone/Android Supported Atmel MCU (Find Me Target) Atmel Smart Connect App BLE Link (Find Me Locator) Supported Hardware Platforms and IDEs BluSDK – Supported Hardware and IDEs Table 2-1. Supported... -

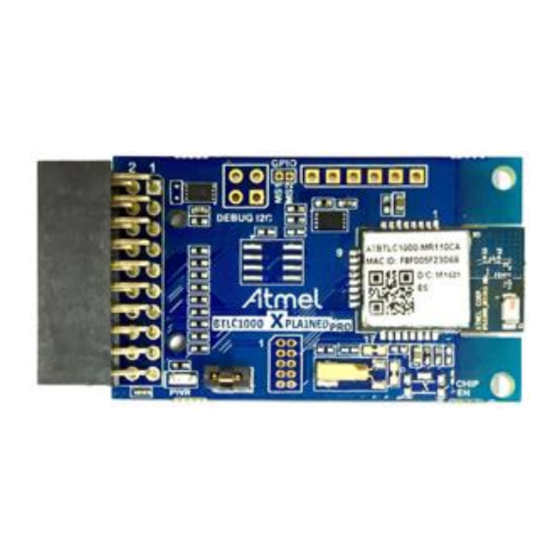

Page 4: Hardware Setup
ATBTLC1000 Xplained Pro Extension Connected to a SAM L21 Xplained Pro SAM D21 Xplained Pro Find Me Target Setup Figure 3-2. ATBTLC1000 Xplained Pro Extension Connected to a SAM D21 Xplained Pro ATBTLC1000 BluSDK Find Me Profile – Getting Started Guide [USER GUIDE] Atmel-42545C-ATBTLC1000-BluSDK-Find-Me-Profile-Getting-Started-Guide_UserGuide_022016... -
Page 5: Sam G55 Xplained Pro Find Me Target Setup
ATBTLC1000 Xplained Pro Extension Connected to a SAM G55 Xplained Pro SAM 4S Xplained Pro Find Me Target Setup Figure 3-4. ATBTLC1000 Xplained Pro Extension Connected to a SAM 4S Xplained Pro ATBTLC1000 BluSDK Find Me Profile – Getting Started Guide [USER GUIDE] Atmel-42545C-ATBTLC1000-BluSDK-Find-Me-Profile-Getting-Started-Guide_UserGuide_022016... -
Page 6: Find Me Target
Software Setup Installation Steps Atmel Studio installation [Atmel Studio 7.0 (build 594) Installer – with .NET] http://www.atmel.com/tools/atmelstudio.aspx. (Note: SAM L21 Rev B/SAM D21/SAM G55/SAM 4S part pack is built-in as part of Atmel Studio 7.0) Atmel USB Driver Installer from http://www.atmel.com/tools/atmelstudio.aspx. - Page 7 Figure 5-1. Creating a New Project Select “SAML,32-bit” in device family, enter “Find Me” in search window and expand Atmel Corp. Projects. The location and the name of the project can be selected in the respective fields. Click OK. ATBTLC1000 BluSDK Find Me Profile – Getting Started Guide [USER GUIDE]...
- Page 8 Building the Find Me Application Download the application via the USB to the SAM L21 board by using the Device Programming option available in Tools as mentioned below. ATBTLC1000 BluSDK Find Me Profile – Getting Started Guide [USER GUIDE] Atmel-42545C-ATBTLC1000-BluSDK-Find-Me-Profile-Getting-Started-Guide_UserGuide_022016...
- Page 9 Figure 5-5. Flashing the Find Me Application Once the application is flashed the Find Me Target Application is ready for usage. ATBTLC1000 BluSDK Find Me Profile – Getting Started Guide [USER GUIDE] Atmel-42545C-ATBTLC1000-BluSDK-Find-Me-Profile-Getting-Started-Guide_UserGuide_022016...
-
Page 10: Console Logging
On a BLE compatible Android phone or an iPhone , enable Bluetooth in the Settings page. Start the Atmel Smart Connect App and scan for devices. ATMEL-FMP will be appear amongst the devices scanned. Click on ATMEL-FMP to connect to the SAM L21 or supported platform + ATBTLC1000 device. - Page 11 Figure 7-2. ATMEL-FMP in Device Discovery Atmel Smart Connect App Once connected, the client side will request for the pairing procedure with iPhone. The console log provides a guidance for the user to enter the pass-key on iPhone. Figure 7-3.
- Page 12 Sending Alerts to Find Me Target ATMEL-FMP Note: A BLE compatible Android phone with the Atmel Smart Connect App can also be used to run the demo as described above. The Android version of the Smart Connect app provides the same look and feel as the iOS mobile app described above.
-
Page 13: Blusdk Software Architecture
BLE subsystem for the ATBTLC1000 configuration. The External host can be supported platform. The application in this example is ANCS Profile. Figure 8-1. BluSDK Software Architecture ATBTLC1000 BluSDK Find Me Profile – Getting Started Guide [USER GUIDE] Atmel-42545C-ATBTLC1000-BluSDK-Find-Me-Profile-Getting-Started-Guide_UserGuide_022016... -
Page 14: Atmel Evaluation Board/Kit Important Notice And Disclaimer
User indemnifies Atmel from any claim arising from user's handling or use of this evaluation board/kit. Except for the limited purpose of internal development and evaluation as specified above, no license, express or implied, by estoppel or otherwise, to any Atmel intellectual property right is granted hereunder. -
Page 15: Revision History
Figure 3.4 is updated with SAM4S Xplained Pro Image. Section 5.1 Installation Steps are updated. Figure 3-1 is updated. 42545B 11/2015 The screenshots in Chapter 5 are updated. 42545A 09/2015 Initial document release. ATBTLC1000 BluSDK Find Me Profile – Getting Started Guide [USER GUIDE] Atmel-42545C-ATBTLC1000-BluSDK-Find-Me-Profile-Getting-Started-Guide_UserGuide_022016... - Page 16 DISCLAIMER: The information in this document is provided in connection with Atmel products. No licens e, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND COND ITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON -INFRINGEMENT.
