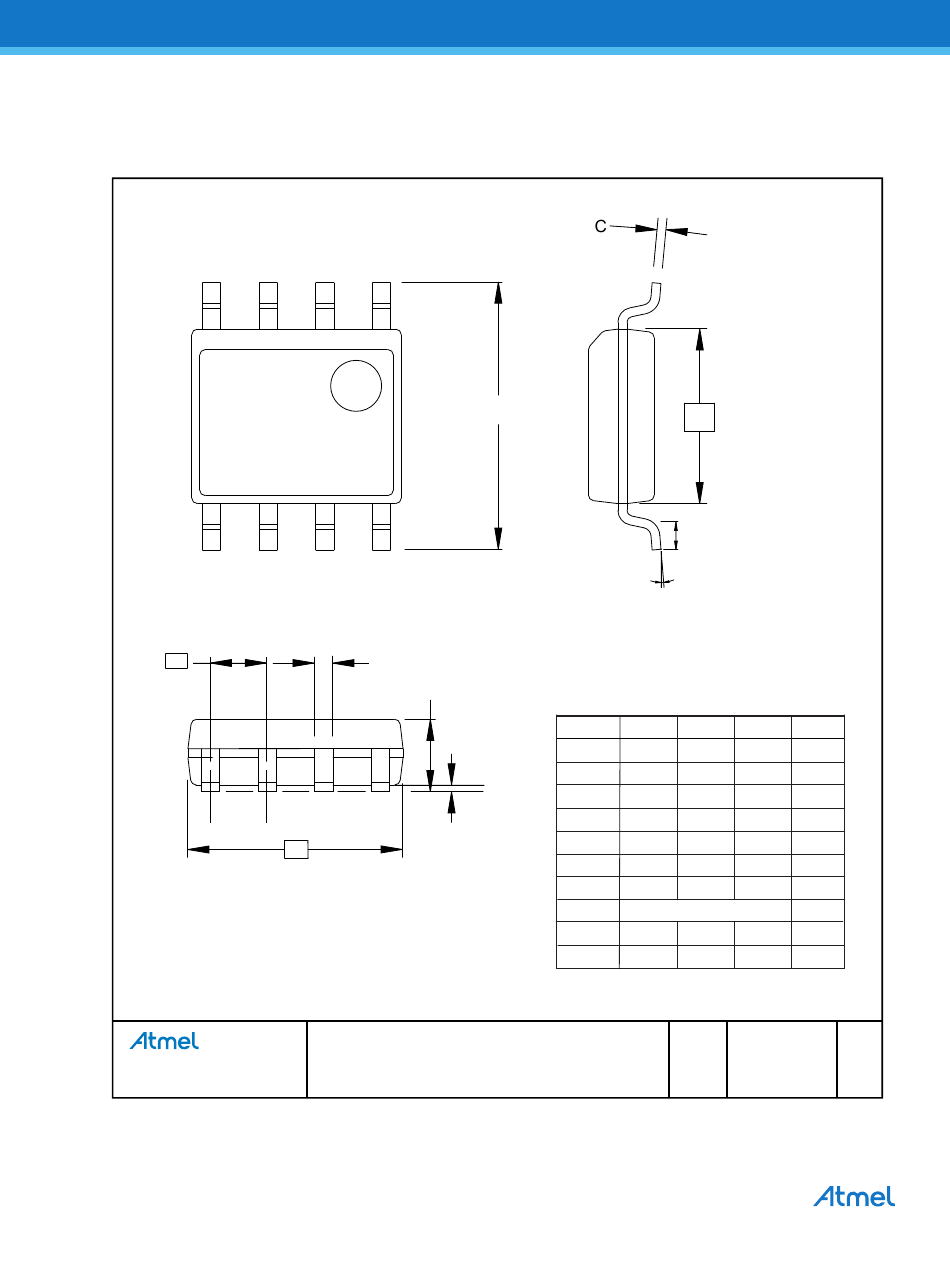

13.2 8S1 — 8-lead JEDEC SOIC
TOP VIEW
e
Notes: This drawing is for general information only.
Refer to JEDEC Drawing MS-012, Variation AA
for proper dimensions, tolerances, datums, etc.
Package Drawing Contact:
packagedrawings@atmel.com
AT24C16C [DATASHEET]
16
Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016
1
N
b
D
SIDE VIEW
TITLE
8S1, 8-lead (0.150" Wide Body), Plastic Gull Wing
Small Outline (JEDEC SOIC)
E
A
SYMBOL
A1
A
A1
b
C
D
E1
E
e
L
Ø Ø
E1
L
Ø
END VIEW
COMMON DIMENSIONS
(Unit of Measure = mm)
MIN MAX
NOM
1.35 – 1.75
0.10 – 0.25
0.31 – 0.51
0.17 – 0.25
4.80 – 5.05
3.81 – 3.99
5.79 – 6.20
1.27 BSC
0.40 – 1.27
0° – 8°
GPC DRAWING NO. REV.
SWB 8S1
NOTE
6/22/11
G
