High-performance ee pld

Advertisement

Quick Links

Features
Industry-standard Architecture
– Emulates Many 20-pin PALs
– Low-cost Easy-to-use Software Tools
High-speed Electrically-erasable Programmable Logic Devices
– 10 ns Maximum Pin-to-pin Delay
Several Power Saving Options
Device
I
CC
ATF16V8B
ATF16V8BQ
ATF16V8BQL
CMOS and TTL Compatible Inputs and Outputs
– Input and I/O Pull-up Resistors
Advanced Flash Technology
– Reprogrammable
– 100% Tested
High-reliability CMOS Process
– 20 Year Data Retention
– 100 Erase/Write Cycles
– 2,000V ESD Protection
– 200 mA Latchup Immunity
Commercial, and Industrial Temperature Ranges

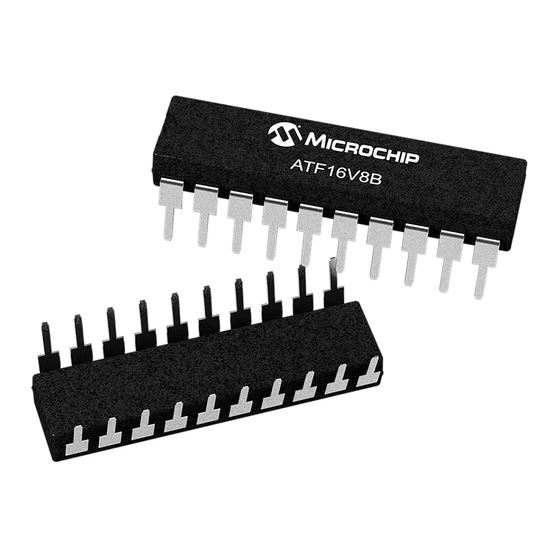

Dual-in-line and Surface Mount Packages in Standard Pinouts
PCI-compliant
Green Package Options (Pb/Halide-free/RoHS Compliant) Available
1. Description
The ATF16V8B is a high-performance CMOS (electricallyerasable) programmable
logic device (PLD) that utilizes Atmel's proven electrically-erasable Flash memory
technology. All speed ranges are specified over the full 5V ± 10% range for industrial
temperature ranges, and 5V ± 5% for commercial temperature ranges.
Several low-power options allow selection of the best solution for various types of
power-limited applications. Each of these options significantly reduces total system
power and enhances system reliability.
The ATF16V8Bs incorporate a superset of the generic architectures, which allows
direct replacement of the 16R8 family and most 20-pin combinatorial PLDs. Eight out-
puts are each allocated eight product terms. Three different modes of operation,
configured automatically with software, allow highly complex logic functions to be
realized.
®
, Standby
I
, Active
CC
50 mA
55 mA
35 mA
40 mA
5 mA
20 mA
High-
performance
EE PLD
ATF16V8B
ATF16V8BQ
ATF16V8BQL
0364J–PLD–7/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATF16V8B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atmel ATF16V8B

  • Page 1 1. Description The ATF16V8B is a high-performance CMOS (electricallyerasable) programmable logic device (PLD) that utilizes Atmel’s proven electrically-erasable Flash memory technology. All speed ranges are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ± 5% for commercial temperature ranges.
  • Page 2: Pin Configurations

    Block Diagram 2. Pin Configurations Table 2-1. Pin Configurations (All Pinouts Top View) Pin Name Function Clock Logic Inputs Bi-directional Buffers Output Enable +5V Supply Figure 2-1. TSSOP Figure 2-2. DIP/SOIC I/CLK I/CLK I9/OE I9/OE Figure 2-3. PLCC ATF16V8B/BQ/BQL 0364J–PLD–7/05...
  • Page 3: Absolute Maximum Ratings

    ATF16V8B/BQ/BQL 3. Absolute Maximum Ratings* *NOTICE: Stresses beyond those listed under “Absolute Temperature Under Bias.........-55 C to +125 Maximum Ratings” may cause permanent dam- age to the device. This is a stress rating only and Storage Temperature ........-65 C to +150...
  • Page 4 Output High Voltage = Min Com., Ind. or V Output High Voltage = -4.0 mA = Min Note: 1. Not more than one output at a time should be shorted. Duration of short circuit test should not exceed 30 sec. ATF16V8B/BQ/BQL 0364J–PLD–7/05...
  • Page 5 ATF16V8B/BQ/BQL AC Waveforms Note: 1. Timing measurement reference is 1.5V. Input AC driving levels are 0.0V 3.0V, unless otherwise specified. AC Characteristics Symbol Parameter Units Input or Feedback to 8 outputs switching Non-Registered Output Clock to Feedback Clock to Output...
  • Page 6: Pin Capacitance

    Test fixture and Probe capacitance Pin Capacitance Table 4-1. Pin Capacitance (f = 1 MHz, T = 25°C Units Conditions = 0V = 0V Note: 1. Typical values for nominal supply voltage. This parameter is only sampled and is not 100% tested. ATF16V8B/BQ/BQL 0364J–PLD–7/05...
  • Page 7: Power-Up Reset

    Reset Voltage Preload of Registered Outputs The ATF16V8B’s registers are provided with circuitry to allow loading of each register with either a high or a low. This feature will simplify testing since any state can be forced into the registers to control test sequencing.
  • Page 8 I/O, combinatorial output, or dedicated input. The ATF16V8B can be configured in one of three different modes. Each mode makes the ATF16V8B look like a different device. Most PLD compilers can choose the right mode automat- ically.
  • Page 9: Software Support

    The User Signature is accessible regardless of the state of the security fuse. 10. Software Support Atmel-WinCUPL is a free tool, available on Atmel’s web site and can be used to design in all members of the Atmel ATF16V8B family of SPLDs. Table 10-1...
  • Page 10 11.1 ATF16V8B Registered Mode PAL Device Emulation/PAL Replacement. The registered mode is used if one or more regis- ters are required. Each macrocell can be configured as either a registered or combinatorial output or I/O, or as an input. For a registered output or I/O, the output is enabled by the OE pin, and the register is clocked by the CLK pin.
  • Page 11 ATF16V8B/BQ/BQL Figure 11-3. Registered Mode Logic Diagram 0364J–PLD–7/05...
  • Page 12 11.2 ATF16V8B Complex Mode PAL Device Emulation/PAL Replacement. In the complex mode, combinatorial output and I/O functions are possible. Pins 1 and 11 are regular inputs to the array. Pins 13 through 18 have pin feedback paths back to the AND-array, which makes full I/O capability possible. Pins 12 and 19 (outermost macrocells) are outputs only.
  • Page 13 ATF16V8B/BQ/BQL Figure 11-5. Complex Mode Logic Diagram 0364J–PLD–7/05...
  • Page 14 11.3 ATF16V8B Simple Mode PAL Device Emulation/PAL Replacement. In the Simple Mode, 8 product terms are allocated to the sum term. Pins 15 and 16 (center macrocells) are permanently configured as combinato- rial outputs. Other macrocells can be either inputs or combinatorial outputs with pin feedback to the AND-array.
  • Page 15 ATF16V8B/BQ/BQL Figure 11-7. Simple Mode Logic Diagram 0364J–PLD–7/05...
  • Page 16 12. Test Characterization Data SUPPLY CURRENT vs. INPUT FREQUENCY ATF16V8BL/BQL (VCC = 5V, TA = 25C) SUPPLY CURRENT vs. INPUT FREQUENCY ATF16V8B/BQ (VCC = 5V, TA = 25C) ATF16V8B ATF16V8B ATF16V8BQL ATF16V8BQ FREQUENCY (MHz) FREQUENCY (MHz) SUPPLY CURRENT vs. SUPPLY VOLTAGE...
  • Page 17 ATF16V8B/BQ/BQL NORMALIZED TPD vs. SUPPLY VOLTAGE (TA=25°C) 1.15 ATF16V8B/BQ ATF16V8BQL 0.85 4.50 4.75 5.00 5.25 5.50 SUPPLY VOLTAGE (V) NORMALIZED TCO vs. SUPPLY VOLTAGE(TA=25°C) 1.15 ATF16V8B/BQ ATF16V8BQL 0.85 4.50 4.75 5.00 5.25 5.50 SUPPLY VOLT AGE (V) 0364J–PLD–7/05...
  • Page 18 ATF16V8B/BQ/BQL 0364J–PLD–7/05...
  • Page 19 ATF16V8B-15JI ATF16V8B-15PI 20P3 Industrial ATF16V8B-15SI (-40°C to 85°C) ATF16V8B-15XI Note: The last time buy date is Sept. 30, 2005 for shaded parts. 13.2 ATF16V8B Green Package Options (Pb/Halide-free/RoHS Compliant) (ns) (ns) (ns) Ordering Code Package Operation Range ATF16V8B-10JU ATF16V8B-15JU Industrial...
  • Page 20 “I” to the “C” device (7 ns “C” = 10 ns “I”) and de-rate power by 30%. Package Type 20-lead, Plastic J-leaded Chip Carrier (PLCC) 20P3 20-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP) 20-lead, 0.300" Wide, Plastic Gull-Wing Small Outline (SOIC) 20-lead, 4.4 mm Wide, Plastic Thin Shrink Small Outline (TSSOP) ATF16V8B/BQ/BQL 0364J–PLD–7/05...
  • Page 21: Packaging Information

    ATF16V8B/BQ/BQL 15. Packaging Information 15.1 20J – PLCC PIN NO. 1 1.14(0.045) X 45˚ 1.14(0.045) X 45˚ 0.318(0.0125) IDENTIFIER 0.191(0.0075) D2/E2 0.51(0.020)MAX 45˚ MAX (3X) COMMON DIMENSIONS (Unit of Measure = mm) NOTE SYMBOL 4.191 – 4.572 2.286 – 3.048 0.508...
  • Page 22 Mold Flash or Protrusion shall not exceed 0.25 mm (0.010"). 0.203 – 0.356 – – 10.922 0.000 – 1.524 2.540 TYP 1/23/04 TITLE DRAWING NO. REV. 2325 Orchard Parkway 20P3, 20-lead (0.300"/7.62 mm Wide) Plastic Dual 20P3 San Jose, CA 95131 Inline Package (PDIP) ATF16V8B/BQ/BQL 0364J–PLD–7/05...
  • Page 23 ATF16V8B/BQ/BQL 15.3 20S – SOIC Dimensions in Millimeters and (Inches). Controlling dimension: Inches. JEDEC Standard MS-013 0.51(0.020) 0.33(0.013) 7.60 (0.2992) 10.65 (0.419) 10.00 (0.394) 7.40 (0.2914) PIN 1 ID PIN 1 1.27 (0.050) BSC 13.00 (0.5118) 2.65 (0.1043) 12.60 (0.4961) 2.35 (0.0926)
  • Page 24 0.20 (0.008) 0.09 (0.004) 0º ~ 8º 0.75 (0.030) 0.45 (0.018) 10/23/03 TITLE DRAWING NO. REV. 2325 Orchard Parkway 20X, (Formerly 20T), 20-lead, 4.4 mm Body Width, San Jose, CA 95131 Plastic Thin Shrink Small Outline Package (TSSOP) ATF16V8B/BQ/BQL 0364J–PLD–7/05...
  • Page 25: Revision History

    ATF16V8B/BQ/BQL 16. Revision History 16.1 0364J 1. ATF16V8B-25 JC/PC/SC/XC/JI/PI/SI/XI were obseleted in August 1999 ATF16V8BQL-25 JC/PC/SC/XC/JI/PI/SI/XI were obseleted in August 1999 These devices were removed from Section 13. ”ATF16V8B Ordering Information” on page 19 Section 14. ”ATF16V8BQ/BQL Ordering Information” on page 2.
  • Page 26 Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI- TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY...
