13.6 5TS1 — 5-lead SOT23
SEATING
1. Dimension D does not include mold flash, protrusions or gate burrs. Mold flash,
protrusions or gate burrs shall not exceed 0.15 mm per end. Dimension E1 does
not include interlead flash or protrusion. Interlead flash or protrusion shall not
exceed 0.15 mm per side.
2. The package top may be smaller than the package bottom. Dimensions D and E1
are determined at the outermost extremes of the plastic body exclusive of mold
flash, tie bar burrs, gate burrs and interlead flash, but including any mismatch
between the top and bottom of the plastic body.
3. These dimensions apply to the flat section of the lead between 0.08 mm and 0.15
mm from the lead tip.
4. Dimension "b" does not include dambar protrusion. Allowable dambar protrusion
shall be 0.08 mm total in excess of the "b" dimension at maximum material
condition. The dambar cannot be located on the lower radius of the foot. Minimum
space between protrusion and an adjacent lead shall not be less than 0.07 mm.
This drawing is for general information only. Refer to JEDEC
Drawing MO-193, Variation AB for additional information.
Package Drawing Contact:
packagedrawings@atmel.com
AT24C16C [DATASHEET]
20
Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016
e1
5
E1
1 2
TOP VIEW
b
PLANE
D
SIDE VIEW
TITLE

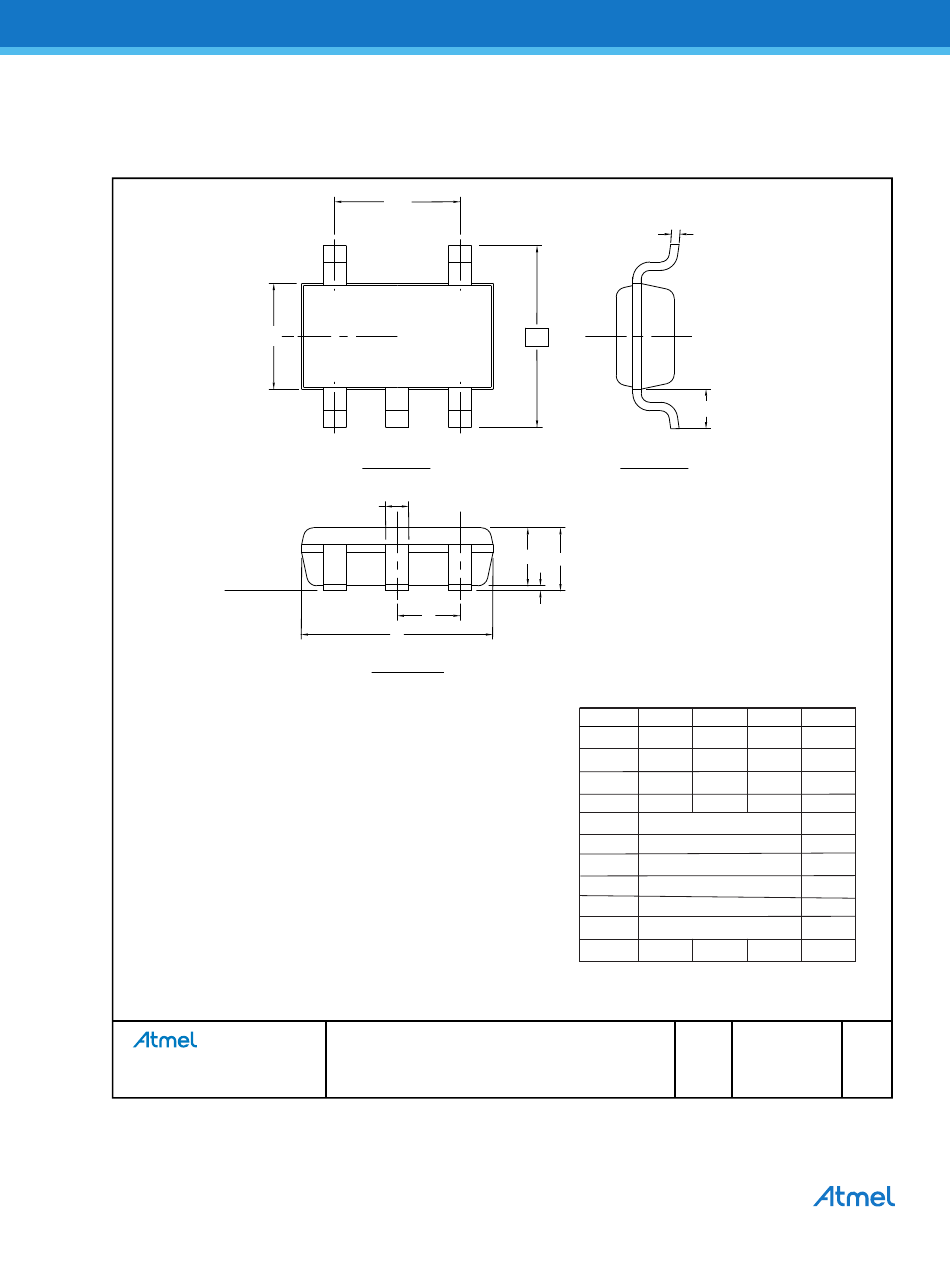

5TS1, 5-lead 1.60mm Body, Plastic Thin
Shrink Small Outline Package (Shrink SOT)
4
E
3
A2
A
A1
e
SYMBOL
A
A1
A2
c
D
E
E1
L1
e
e1
b
C
C
L
L1
END VIEW
COMMON DIMENSIONS
(Unit of Measure = mm)
MIN NOM MAX
- - 1.00
0.00 - 0.10
0.70 0.90 1.00
0.08 - 0.20
2.90 BSC
2.80 BSC
1.60 BSC
0.60 REF
0.95 BSC
1.90 BSC
0.30 - 0.50
GPC DRAWING NO.
TSZ
5TS1
NOTE
3
1,2
1,2
1,2
3,4
5/31/12
REV.
D
