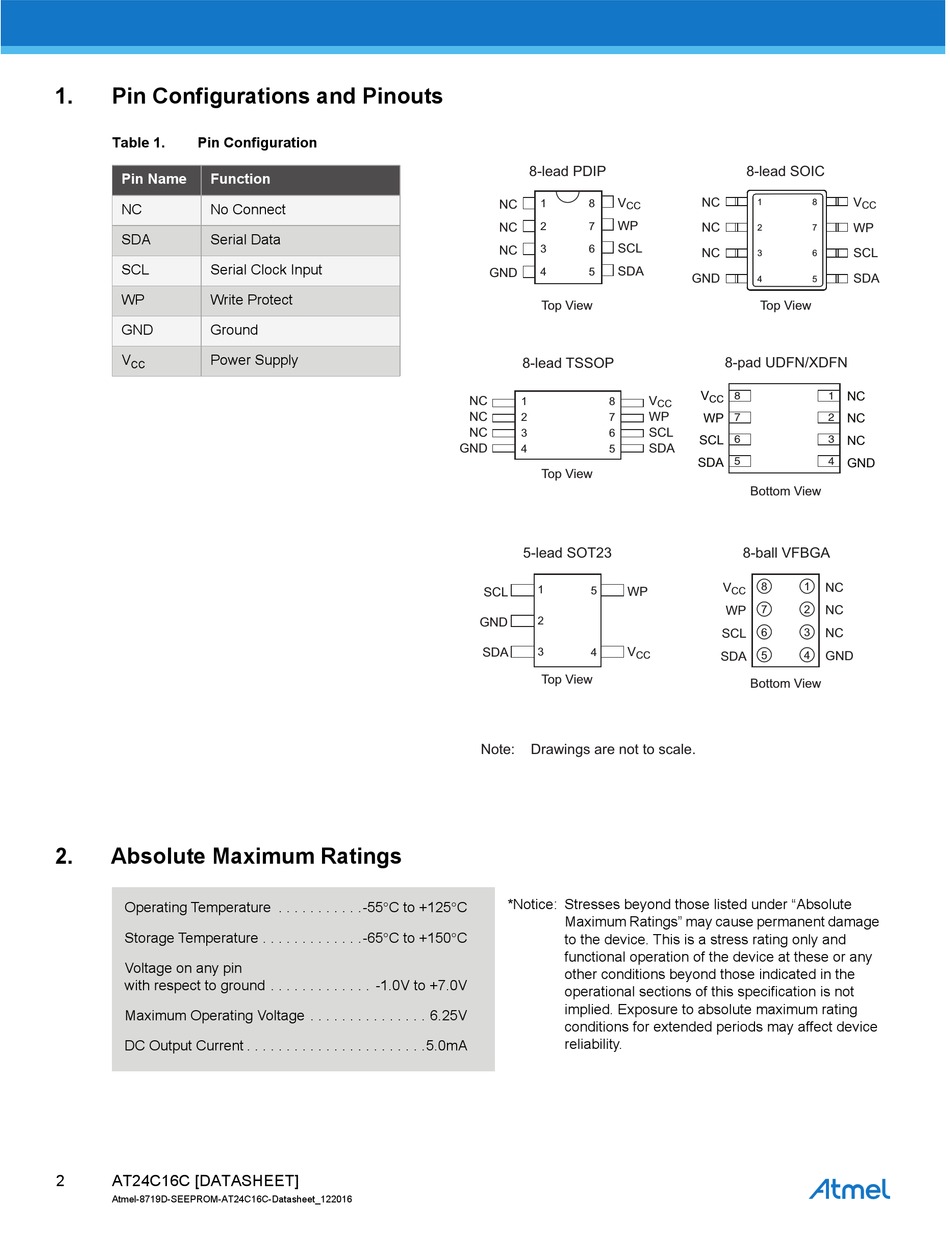

Pin Configurations and Pinouts
Table 1.
Pin Configuration
Pin Name
Function
NC
No Connect
SDA
Serial Data
SCL
Serial Clock Input
WP
Write Protect
GND
Ground
V
Power Supply
CC
2.
Absolute Maximum Ratings
Operating Temperature . . . . . . . . . . .-55C to +125C
Storage Temperature . . . . . . . . . . . . .-65C to +150C
Voltage on any pin
with respect to ground . . . . . . . . . . . . . -1.0V to +7.0V
Maximum Operating Voltage . . . . . . . . . . . . . . . 6.25V
DC Output Current . . . . . . . . . . . . . . . . . . . . . . .5.0mA
AT24C16C [DATASHEET]
2
Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016
8-lead PDIP
V
1
8
NC
CC
WP
2
7
NC
SCL
3
6
NC
SDA
4
5
GND
Top View
8-lead TSSOP
NC
1
8
NC
2
7
NC
3
6
GND
4
5
Top View
5-lead SOT23
1
5
WP
SCL
2
GND
SDA
3
V
4
CC
Top View
Note:
Drawings are not to scale.
*Notice: Stresses beyond those listed under "Absolute
Maximum Ratings" may cause permanent damage
to the device. This is a stress rating only and
functional operation of the device at these or any
other conditions beyond those indicated in the
operational sections of this specification is not
implied. Exposure to absolute maximum rating
conditions for extended periods may affect device
reliability.
8-lead SOIC
NC
1
8
NC
2
7
NC
3
6
GND
4
5
Top View
8-pad UDFN/XDFN
V
8
CC
V
CC
WP
WP
7
SCL
6
SCL
SDA
5
SDA
Bottom View
8-ball VFBGA
V
8
1
NC
CC
WP
7
2
NC
SCL
6
3
NC
SDA
5
4
GND
Bottom View
V
CC
WP
SCL
SDA
1
NC
2
NC
3
NC
4
GND
