I2c-compatible, 2-wire serial eeprom 16-kbit 2048 x 8

Advertisement

Quick Links

I

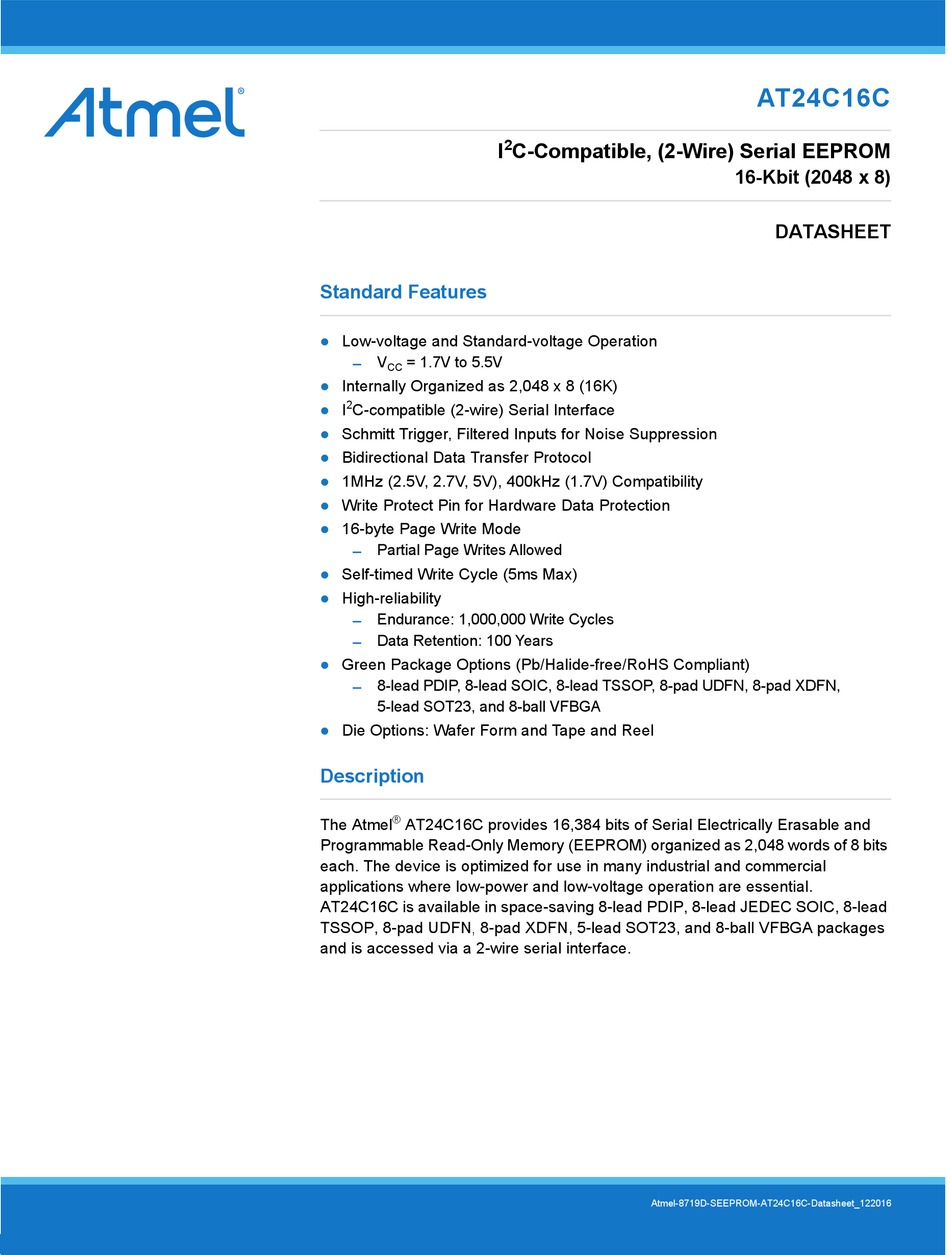

Standard Features

Low-voltage and Standard-voltage Operation
̶
V
= 1.7V to 5.5V
CC
Internally Organized as 2,048 x 8 (16K)
2
I
C-compatible (2-wire) Serial Interface
Schmitt Trigger, Filtered Inputs for Noise Suppression
Bidirectional Data Transfer Protocol
1MHz (2.5V, 2.7V, 5V), 400kHz (1.7V) Compatibility
Write Protect Pin for Hardware Data Protection
16-byte Page Write Mode
̶
Partial Page Writes Allowed
Self-timed Write Cycle (5ms Max)
High-reliability
̶
Endurance: 1,000,000 Write Cycles
̶
Data Retention: 100 Years
Green Package Options (Pb/Halide-free/RoHS Compliant)
̶
8-lead PDIP, 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN,
5-lead SOT23, and 8-ball VFBGA
Die Options: Wafer Form and Tape and Reel
Description
®
The Atmel
AT24C16C provides 16,384 bits of Serial Electrically Erasable and
Programmable Read-Only Memory (EEPROM) organized as 2,048 words of 8 bits
each. The device is optimized for use in many industrial and commercial
applications where low-power and low-voltage operation are essential.
AT24C16C is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead
TSSOP, 8-pad UDFN
8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA packages
,
and is accessed via a 2-wire serial interface.
2
C-Compatible, (2-Wire) Serial EEPROM
Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016
AT24C16C
16-Kbit (2048 x 8)
DATASHEET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT24C16C and is the answer not in the manual?

Questions and answers

Summary of Contents for Atmel AT24C16C

  • Page 1: Standard Features

    The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. AT24C16C is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN 8-pad XDFN, 5-lead SOT23, and 8-ball VFBGA packages and is accessed via a 2-wire serial interface.
  • Page 2: Absolute Maximum Ratings

    Maximum Operating Voltage ....6.25V conditions for extended periods may affect device reliability. DC Output Current ..... . .5.0mA AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 3: Block Diagram

    Serial Data (SDA): The SDA pin is bidirectional for serial data transfer. This pin is open-drain driven and may be wire-ORed with any number of other open-drain or open-collector devices. Device/Page Addresses: The AT24C16C does not use the device address pins, which limits the number of devices on a single bus to one (see Section 7.
  • Page 4: Memory Organization

    Memory Organization AT24C16C, 16K Serial EEPROM: Internally organized with 128 pages of 16 bytes each, the 16K requires a 11-bit data word address for random word addressing. Pin Capacitance Table 5-1. Pin Capacitance Applicable over recommended operating range from T = 25°C, f = 1.0MHz, V...
  • Page 5 Inputs Rise Time μs Inputs Fall Time Stop Condition Setup Time μs SU.STO Data Out Hold Time Write Cycle Time  Endurance 3.3V, 25 C, Page Mode 1,000,000 Write Cycles Note: This parameter is ensured by characterization only. AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 6: Device Operation

    Stop Condition: A low-to-high transition of SDA with SCL high is a Stop Condition. After a read sequence, the Stop Condition command will place the EEPROM in a standby power mode. Figure 6-2. Start Condition and Stop Condition Definition Start Stop Condition Condition AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 7 DATA IN DATA OUT Start Acknowledge Condition Standby Mode: The AT24C16C features a low-power standby mode which is enabled: Upon power-up.  After the receipt of the Stop Condition and the completion of any internal operations.  2-wire Software Reset: After an interruption in protocol, power loss or system reset, any 2-wire part can be reset by following these steps: Create a Start Condition (if possible).
  • Page 8 SCL: Serial Clock, SDA: Serial Data I/O 8th bit WORDn Start Stop Condition Condition Note: The write cycle time t is the time from a valid Stop Condition of a Write sequence to the end of the internal clear/write cycle. AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 9: Device Addressing

    The EEPROM will respond with a zero after each data word received. The microcontroller must terminate the Page Write sequence with a Stop Condition (see Figure 8-2). AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 10: Read Operations

    EEPROM, the current address data word is serially clocked out. The microcontroller does not respond with an input zero but does generate a following Stop Condition (see Figure 9-1). Figure 9-1. Current Address Read Device Address Data SDA Line AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 11 Sequential Read will continue. The Sequential Read operation is terminated when the microcontroller does not respond with a zero but does generate a following Stop Condition. Figure 9-3. Sequential Read Device Data (n) Data (n + 1) Data (n + 2) Data (n + x) Address SDA Line AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 12: Ordering Code Detail

    = Green, Matte Sn Lead Finish, Industrial Temperature Range (-40˚C to +85˚C) = 11mil Wafer Thickness Package Option = PDIP = JEDEC SOIC = TSSOP = UDFN = XDFN = SOT23 = VFBGA WWU = Wafer Unsawn AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 13: Product Markings

    @ = Country of Assembly AAA...A = Atmel Wafer Lot Number H: Industrial/NiPdAu U: Industrial/Matte Tin/SnAgCu Trace Code Atmel Truncation XX = Trace Code (Atmel Lot Numbers Correspond to Code) AT: Atmel Example: AA, AB..YZ, ZZ ATM: Atmel ATML: Atmel 12/6/16 TITLE DRAWING NO.
  • Page 14: Ordering Information

    AT24C16C-WWU11M Wafer Sale Note 1 Note: For Wafer sales, please contact Atmel Sales. Package Type 8-lead, 0.300" wide, Plastic Dual Inline Package (PDIP) 8-lead, 0.150" wide, Plastic Gull Wing Small Outline (JEDEC SOIC) 8-lead, 4.40mm body, Plastic Thin Shrink Small Outline Package (TSSOP) 8MA2 8-pad, 2.00mm x 3.00mm body, 0.50mm pitch, Plastic Ultra Thin Dual Flat No Lead (UDFN)
  • Page 15: Packaging Information

    6. b2 and b3 maximum dimensions do not include Dambar protrusions. Dambar protrusions shall not exceed 0.010 (0.25 mm). 07/31/14 TITLE DRAWING NO. REV. 8P3, 8-lead, 0.300” Wide Body, Plastic Dual Package Drawing Contact: In-line Package (PDIP) packagedrawings@atmel.com AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 16 Refer to JEDEC Drawing MS-012, Variation AA Ø Ø 0° – 8° for proper dimensions, tolerances, datums, etc. 6/22/11 TITLE DRAWING NO. REV. 8S1, 8-lead (0.150” Wide Body), Plastic Gull Wing Package Drawing Contact: Small Outline (JEDEC SOIC) packagedrawings@atmel.com AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 17 0.07mm. 0.09 0.20 5. Dimension D and E1 to be determined at Datum Plane H. 2/27/14 TITLE DRAWING NO. REV. 8X, 8-lead 4.4mm Body, Plastic Thin Package Drawing Contact: Shrink Small Outline Package (TSSOP) packagedrawings@atmel.com AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 18 4. The Pin #1 ID on the Bottom View is an orientation feature on the thermal pad. 11/26/14 TITLE DRAWING NO. REV. 8MA2, 8-pad 2 x 3 x 0.6mm Body, Thermally 8MA2 Package Drawing Contact: Enhanced Plastic Ultra Thin Dual Flat No-Lead Package (UDFN) packagedrawings@atmel.com AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 19 1.80 0.15 2.10 2.20 2.30 0.15 0.20 0.25 0.40 TYP 1.20 REF 0.35 0.26 0.30 End View 9/10/2012 DRAWING NO. TITLE REV. 8ME1, 8-pad (1.80mm x 2.20mm body) 8ME1 Package Drawing Contact: Extra Thin DFN (XDFN) packagedrawings@atmel.com AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 20 This drawing is for general information only. Refer to JEDEC 0.30 0.50 Drawing MO-193, Variation AB for additional information. 5/31/12 TITLE DRAWING NO. REV. 5TS1, 5-lead 1.60mm Body, Plastic Thin 5TS1 Package Drawing Contact: Shrink Small Outline Package (Shrink SOT) packagedrawings@atmel.com AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 21 3. Solder ball composition shall be 95.5Sn-4.0Ag-.5Cu. 1.00 BSC 0.25 REF 6/11/13 TITLE DRAWING NO. REV. 8U3-1, 8-ball, 1.50mm x 2.00mm body, 0.50mm pitch, 8U3-1 Package Drawing Contact: Very Thin, Fine-Pitch Ball Grid Array Package (VFBGA) packagedrawings@atmel.com AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
  • Page 22: Revision History

    Add the UDFN Expanded Quantity Option. 8719C 01/2015 Update the 8X, 8MA2, 8P3, and 8U3-1 package outline drawings, the ordering information section, and the disclaimer page. Minor grammatical corrections. 8719B 07/2013 Update Atmel logos and template. 8719A 09/2010 Initial document release. AT24C16C [DATASHEET] Atmel-8719D-SEEPROM-AT24C16C-Datasheet_122016...
