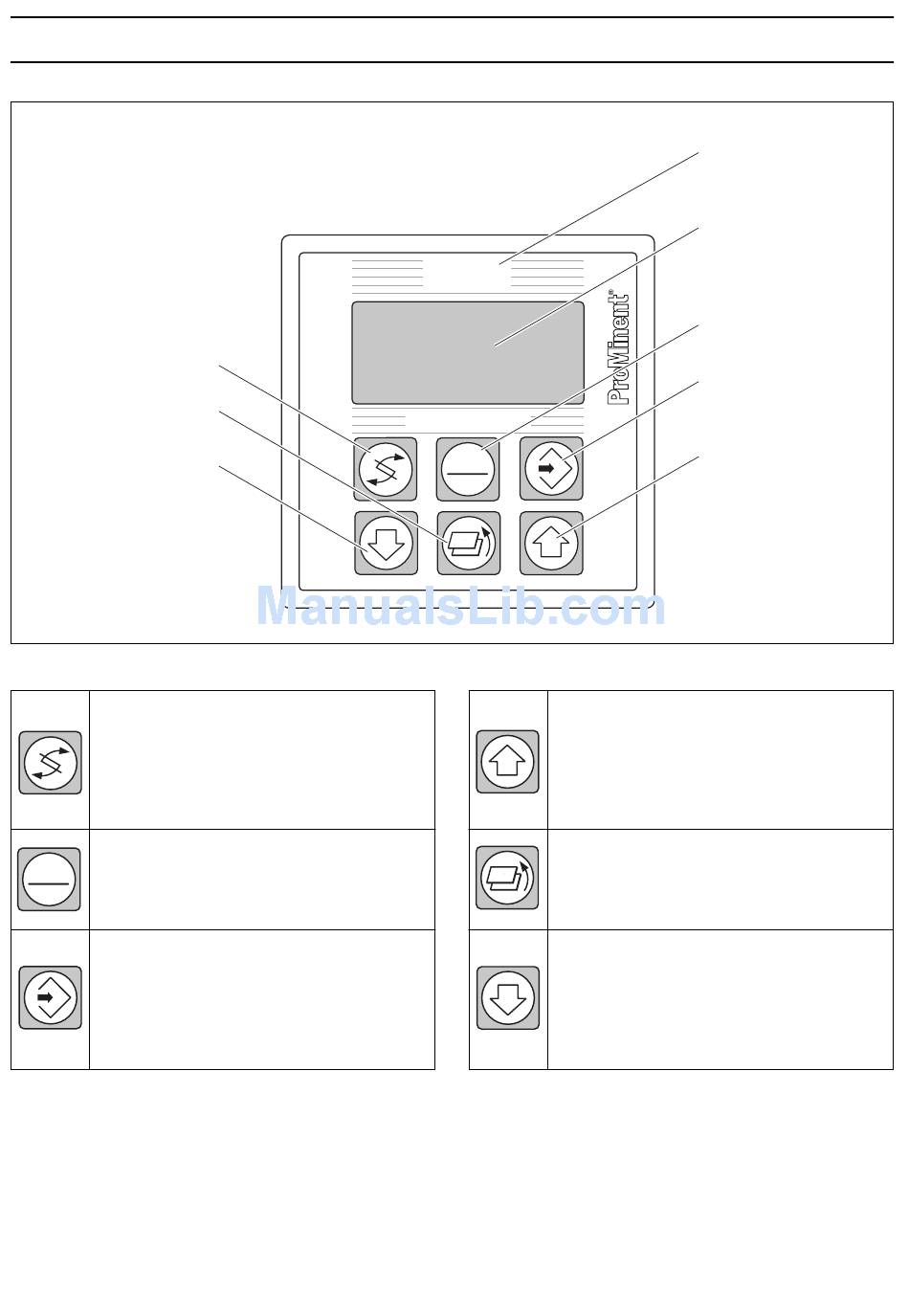

Device Overview / Controls

Push-button
"Change display"
Push-button
"Branch back"
Push-button
"Down"
CHANGE DISPLAY menu button
To change over within a menu level
and to change from one variable to
another within a menu point.
START/STOP menu button
STOP
Start/stop of control and metering
START
function.
ENTER menu button
To accept, confirm or save a displayed
value or status. For alarm acknow-
ledgement.
4
mA
®
DULCOMETER
STOP
START
UP menu button
To increase a displayed numerical value
and to change variables (flashing
display)
BRANCH BACK menu button
Back to permanent display or to start
of relevant setting menu.
DOWN menu button
To decrease a displayed numerical
value and to change variables (flashing
display).
Display field
Measured variable
Standard signal
(0/4–20 mA)
Graphic display
Push-button
"Start/stop"
Push-button
"Enter"
Push-button
"Up"
