3 ASSEMBLING THE MOWERS TO THE
TRIPLO FRAME
First make sure that the alterations to the mowers (as
mentioned earlier) have been done.
• Attach the front mower to the front of the tractor as this
will double as a counterweight for the rear assembly.
• Attach the frame to the back of the tractor.
• Attach the hydraulics to the tractor: the single tube
attached to the electric valves will feed the single acting
cylinders on the mowers. The two remaining tubes will
feed the double acting cylinders on the TRIPLO frame.
• Attach the PTO shaft to the tractor, check the minimum and
maximum overlap and shorten the shafts if needed*.
• Lift the frame and remove the three stands, they can be
stored on top of the frame.
• Now lower the frame and pick up the rear mower(s). For
more information, refer to the F/FC operator's manual
chapter 2 "Mounting behind the tractor".
• Attach the PTO shafts between mowers and frame, check
the minimum and maximum overlap and shorten the shafts
if needed*.

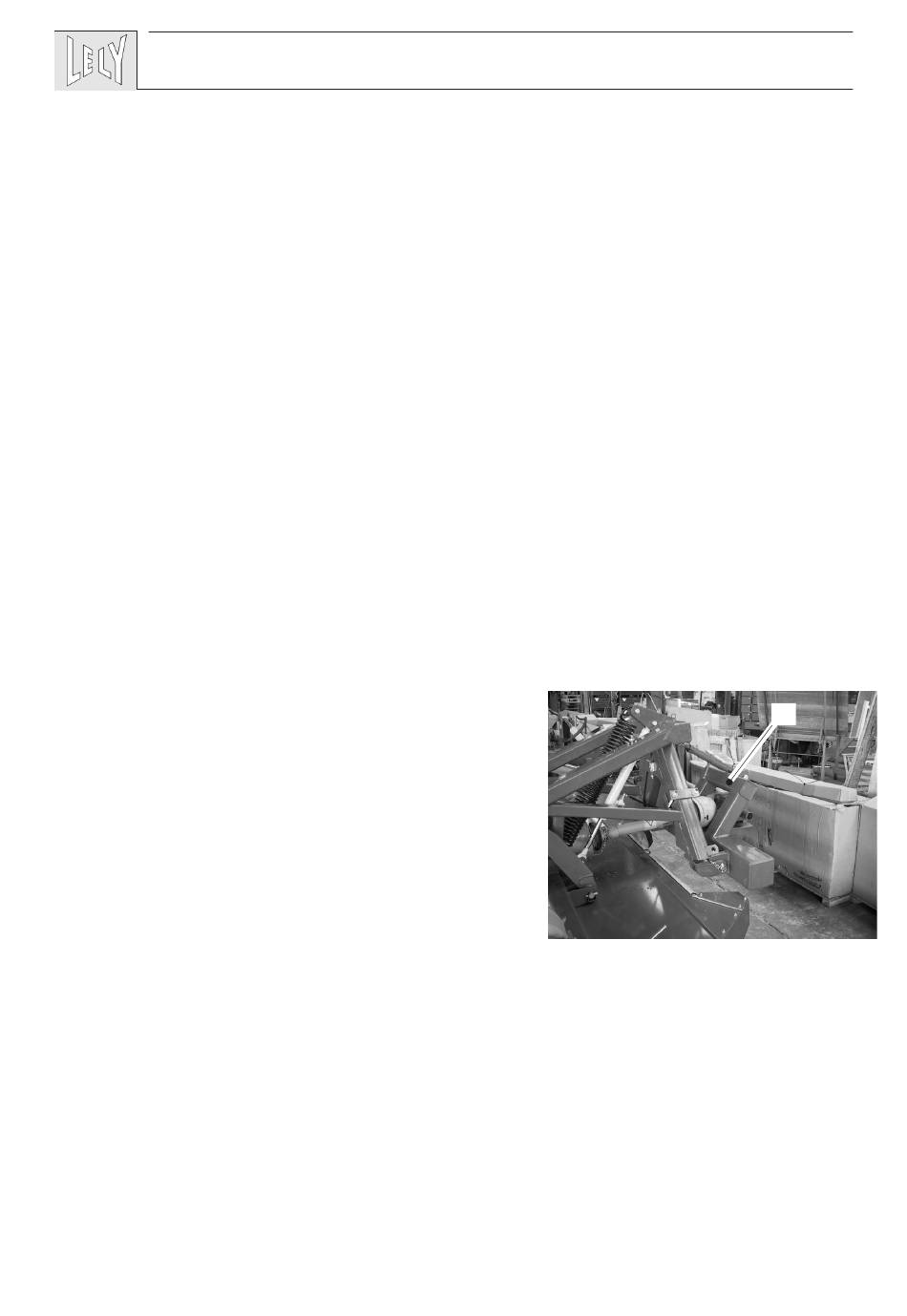

• Use the supplied fixture clamps (A) to secure the
connection between mower and frame.
• Install the control box in the tractor cabin and connect it to
a 12 V power supply.
*
Consult the instruction supplied with the PTO-shaft.
7
A
