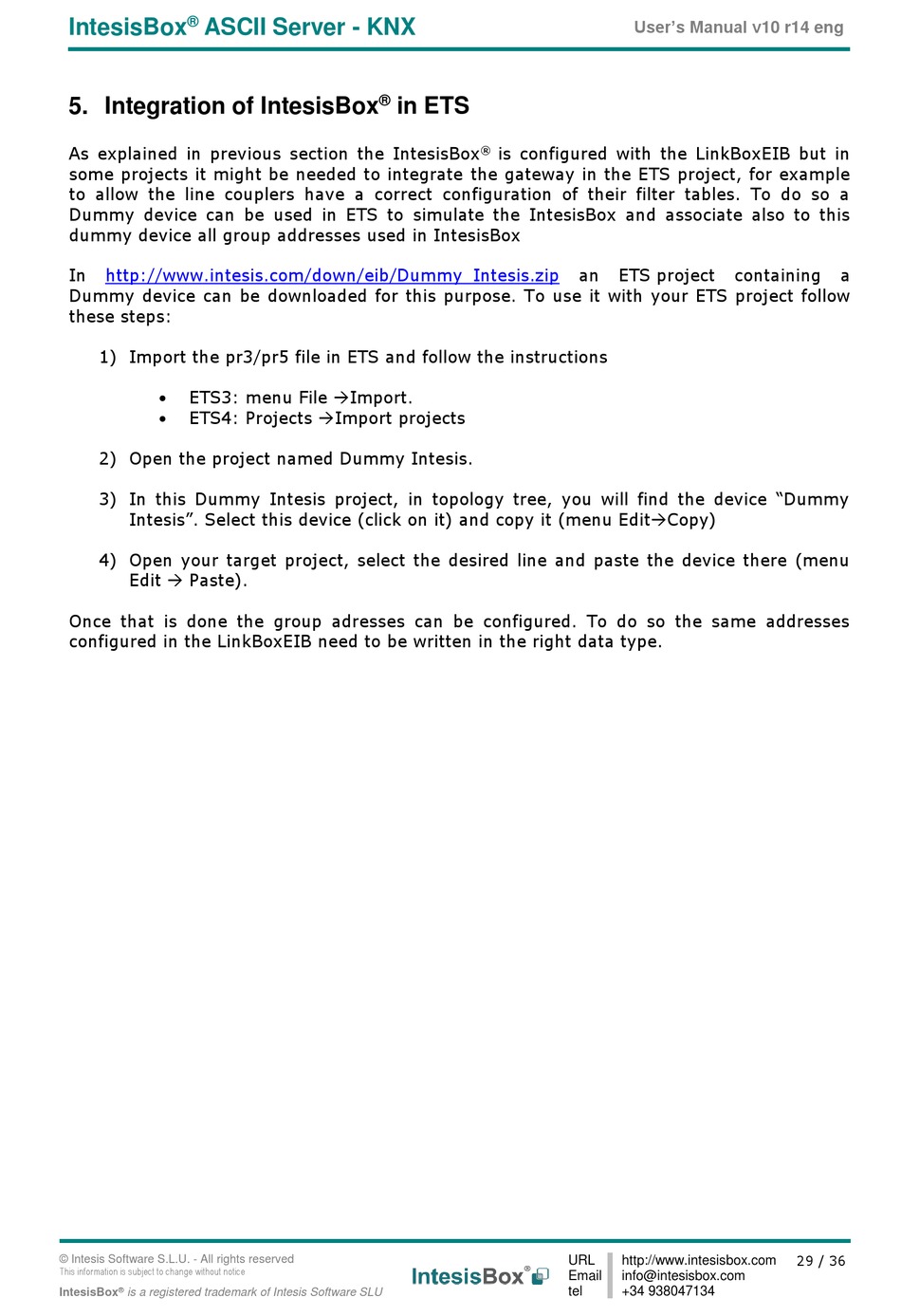

5. Integration of IntesisBox
As explained in previous section the IntesisBox
some projects it might be needed to integrate the gateway in the ETS project, for example
to allow the line couplers have a correct configuration of their filter tables. To do so a
Dummy device can be used in ETS to simulate the IntesisBox and associate also to this
dummy device all group addresses used in IntesisBox
In http://www.intesis.com/down/eib/Dummy_Intesis.zip
Dummy device can be downloaded for this purpose. To use it with your ETS project follow
these steps:
1) Import the pr3/pr5 file in ETS and follow the instructions
• ETS3: menu File Import.
• ETS4: Projects Import projects
2) Open the project named Dummy Intesis.
3) In this Dummy Intesis project, in topology tree, you will find the device "Dummy
Intesis". Select this device (click on it) and copy it (menu EditCopy)
4) Open your target project, select the desired line and paste the device there (menu
Edit  Paste).
Once that is done the group adresses can be configured. To do so the same addresses
configured in the LinkBoxEIB need to be written in the right data type.
