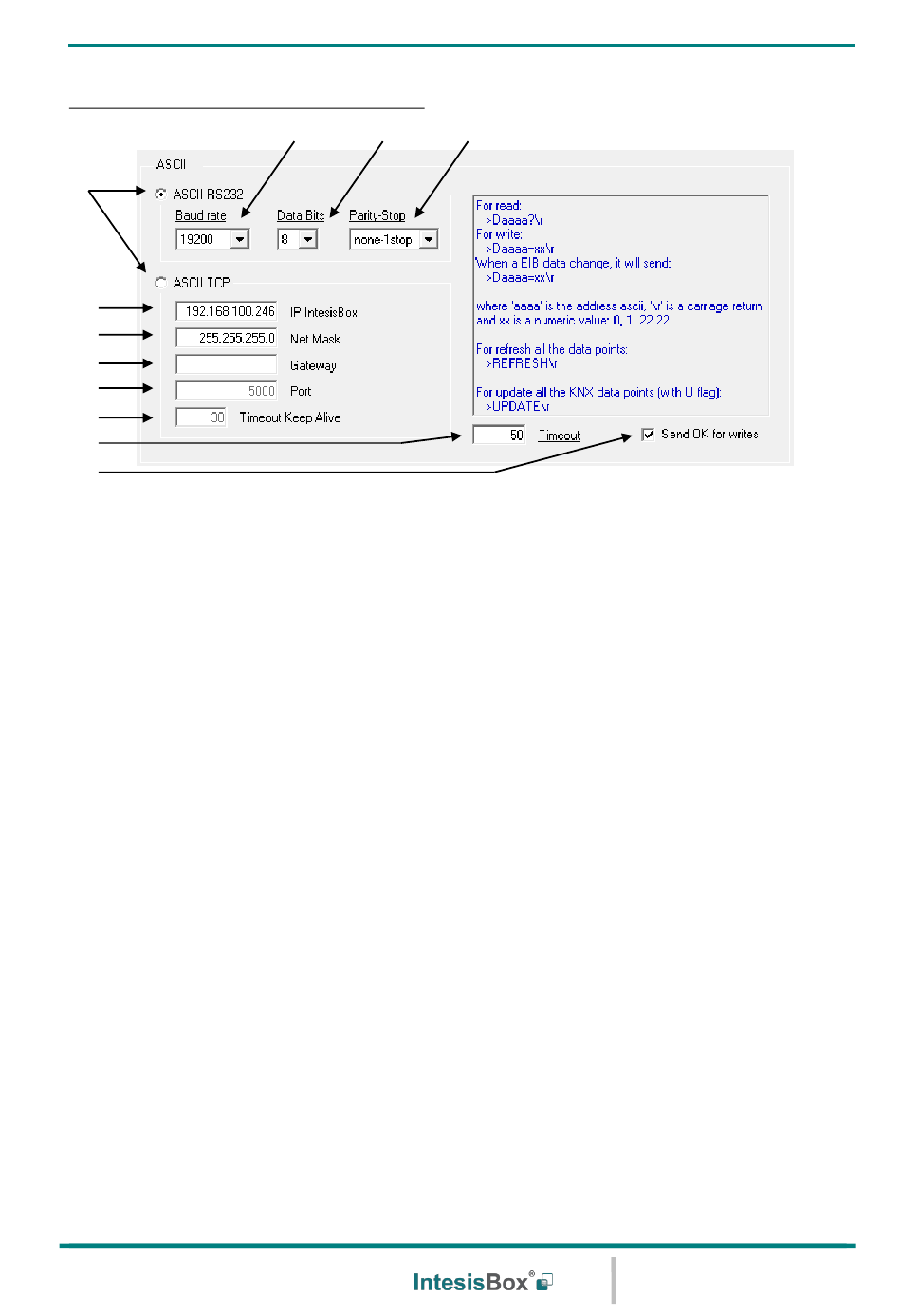

ASCII interface configuration parameters:
1
5
6
7
8
9
10
11
1. Select the type of ASCII port used: ASCII over EIA-232 or ASCII over Ethernet (TCP/IP).
(Both ASCII ports cannot be used simultaneously)
2. Enter the ASCII EIA-232 baud rate to use.
3. Enter the ASCII EIA-232 data bits to use.
4. Enter the ASCII EIA-232 parity bit to use.
5. Enter the IP address for the gateway (supplied by the network administrator).
6. Enter the IP NetMask for the gateway (supplied by the network administrator).
7. Enter the Default gateway address (Router address) in case the gateway (IntesisBox) is
in a different sub network than the other ASCII TCP/IP devices (supplied by the network
administrator). Leave this blank if there is no need of a router address.
8. Enter the ACII port number to use for ASCII over Ethernet (TCP/IP).
9. Enter the "Time without activity" (in 0..65535 seconds) to send the "Keep Alive" packet,
if set to "0" this function is disabled (no packet will be send).
10. Enter the timeout (in 0..2000 milliseconds) to wait for sending consecutive spontaneous
ASCII frames.
11. Check this if you want the gateway to respond with >OK\r after receiving a successful
write messages.
