IntesisBox
ASCII Server - KNX

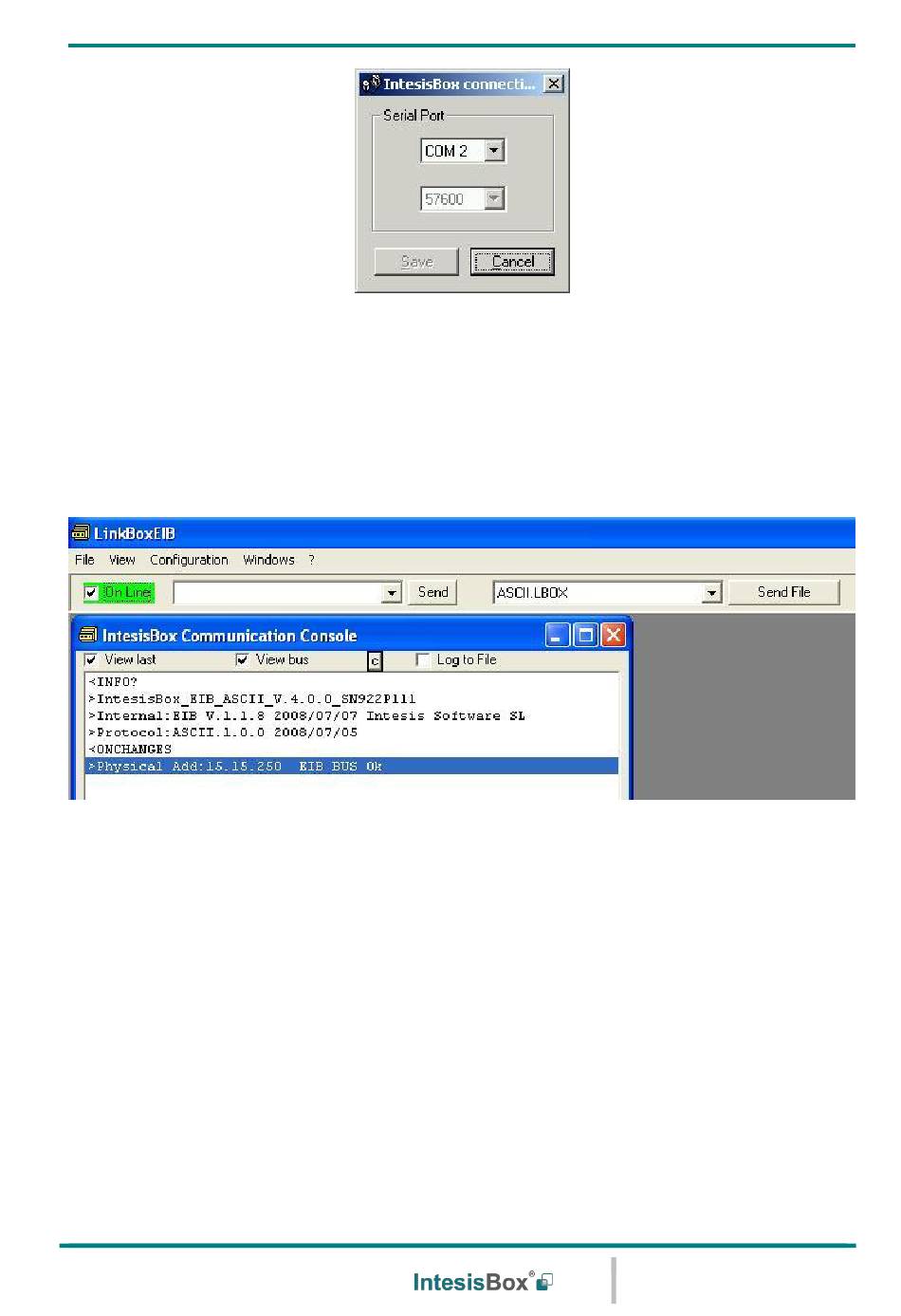

1. Check the checkbox off-line under the menu bar (it will change automatically to on-
line) and LinkBoxEIB will ask for INFO about the IntesisBox connected to it via the
serial connection, if the connection is ok then IntesisBox will respond with its
identification (this can be monitored in the IntesisBox Communication Console
window, as showed below).
Once connected to the IntesisBox, all the options of LinkBoxEIB are fully operative.
To monitor the communication between IntesisBox and the KNX system, select the menu
View -> Bus -> EIB. The EIB communication Viewer window will be opened. This window
shows in real time all the communication frames between IntesisBox and the KNX system as
well as debugging messages referent to the internal protocol (KNX) sent by IntesisBox.
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox
®
is a registered trademark of Intesis Software SLU
User's Manual v10 r14 eng
URL
http://www.intesisbox.com
Email
info@intesisbox.com
tel
+34 938047134
15 / 36
