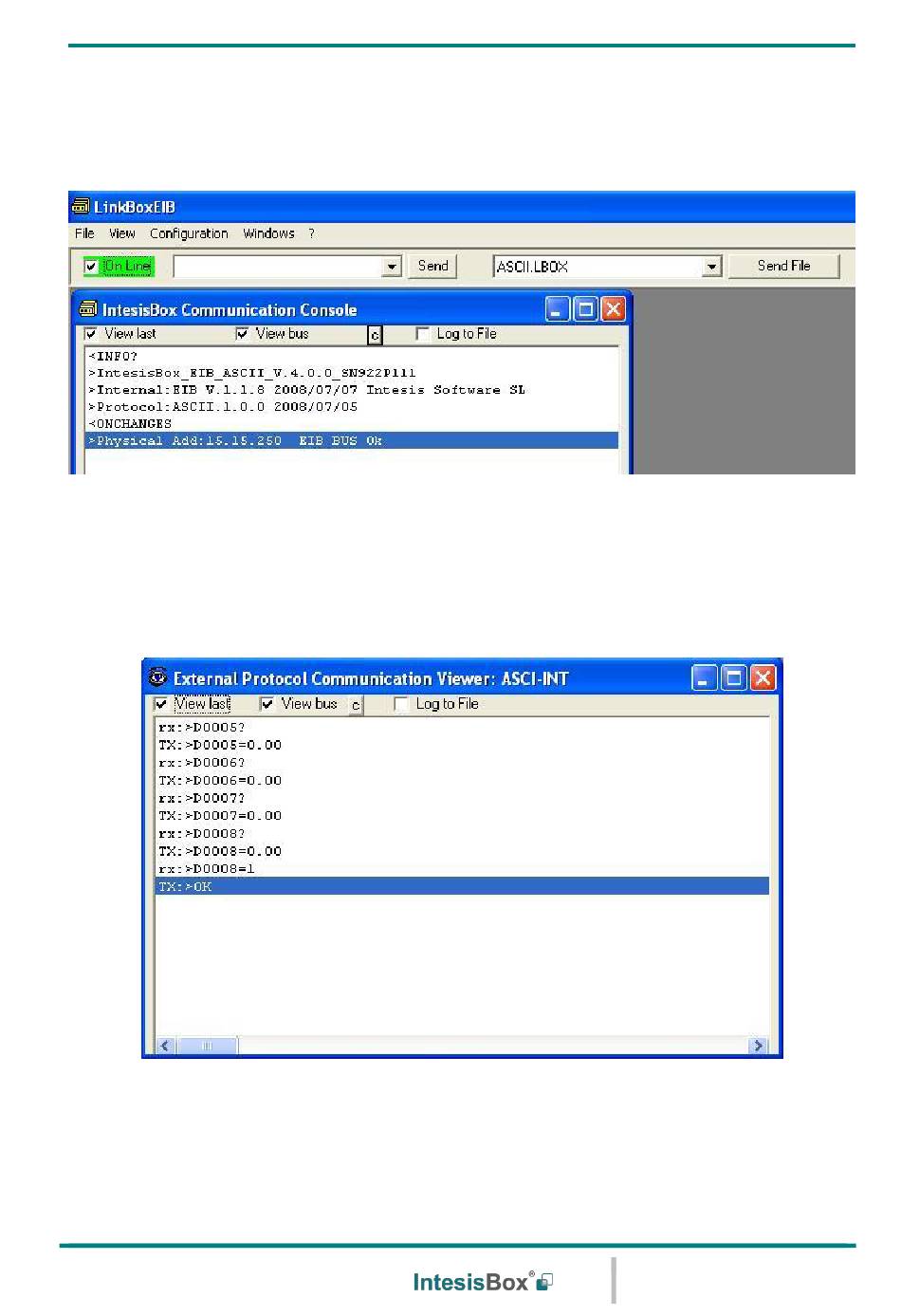

7. Open LinkBoxEIB, create a new project selecting a copy of the one named DEMO
ASCII and give it the name desired, select the serial port used to connect to the
gateway (menu Configuration -> Connection) and switch working mode to on-line
(checkbox off-line/on-line). The IntesisBox identification must appear in the
IntesisBox communication console window as showed below.
8. Open the ASCII Communication Viewer window (menu View -> Bus -> ASCII), force
some point's polling from the ASCII device connected to IntesisBox, and check that
there is communication activity, some TX frames and some other RX frames. This
means that the communication with the ASCII device is ok. In case there is no
communication activity between IntesisBox and the ASCII device check that ASCII
device is operative and well connected to the IntesisBox.
9. Open the KNX Protocol Communication Viewer window (menu View -> Bus -> EIB)
and check that there is communication activity, some TX frames and some other RX
frames as showed in the figure below. This means that the communication with the
KNX system is ok.
