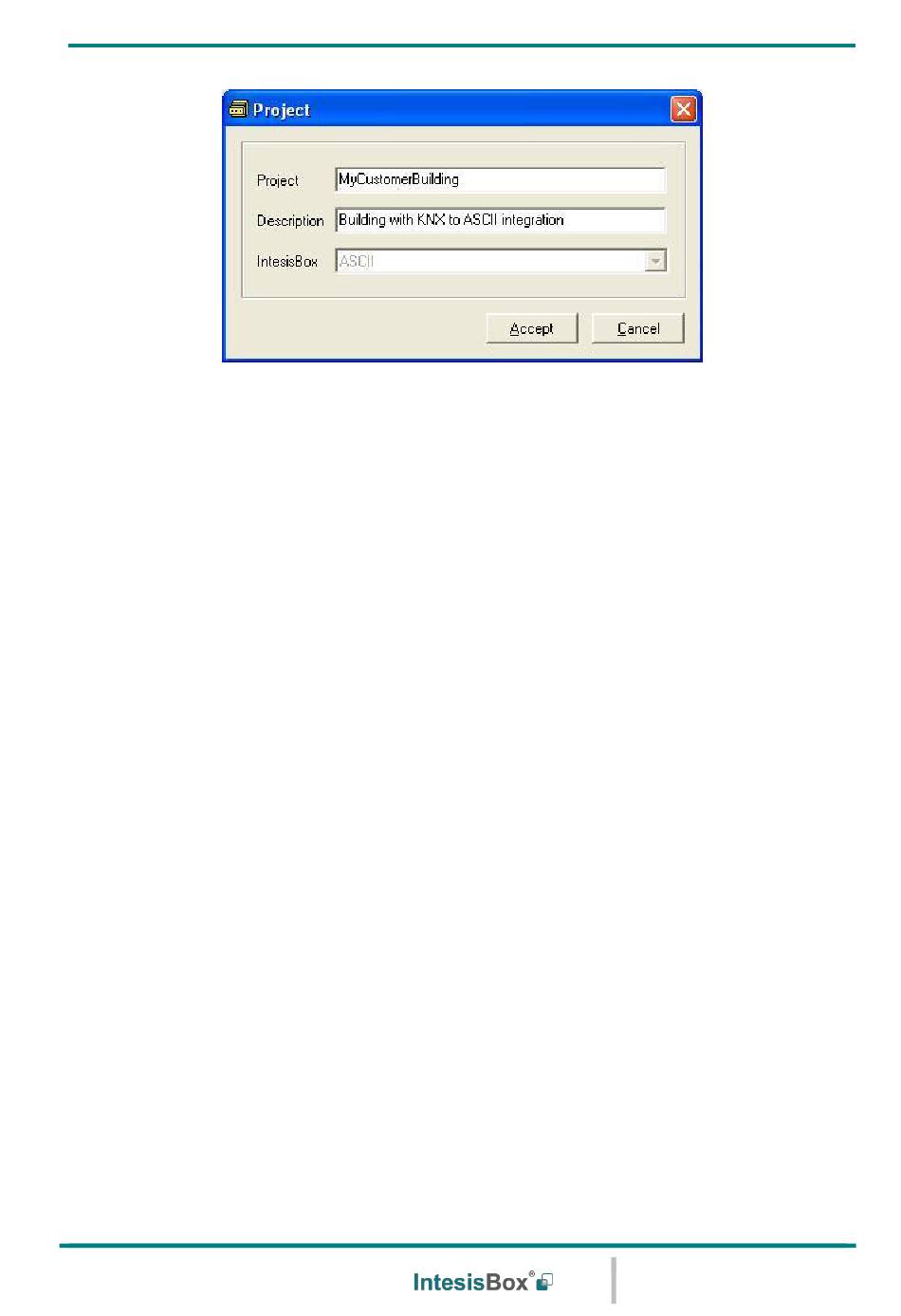

On Accept, a new folder will be created inside the projects folder with the name given to the
project, this folder will contain the template configuration files if the project is a brand new
one, or a copy of the configuration files if it is a copy of a selected one.
A description of the files created for an ASCII protocol based project can be found in section
Files below in this document.
From all the possibilities of LinkBoxEIB, only changes in configuration for the integration and
configuration file generation can be performed while disconnected from IntesisBox (working
off-line), allowing you to do these tasks in the office more comfortably. Before any
monitoring or downloading action to IntesisBox can be performed, the connection between
IntesisBox and the PC running LinkBoxEIB must be established (working on-line). To do so
follow these steps:
1. Make sure IntesisBox is powered-up a correctly connected to the KNX system via the
EIB bus and to the ASCII system via the EIA-232 connection or TCP/IP connection
(consult details for connection and pin assignments in section Connections of this
document).
2. Connect a free PC serial port to IntesisBox's serial port marked as
the standard serial cable supplied with IntesisBox or make your own cable following
the pin assignments specified in section Connections in this document).
If using the Ethernet connection, connect an Ethernet cable between the
port of the IntesisBox and the PC or the corresponding Ethernet interface (Check
Connections section in this document for more information).
3. If using the
the connection to IntesisBox. Use menu Configuration -> Connection.
If using the
corresponding IP.
