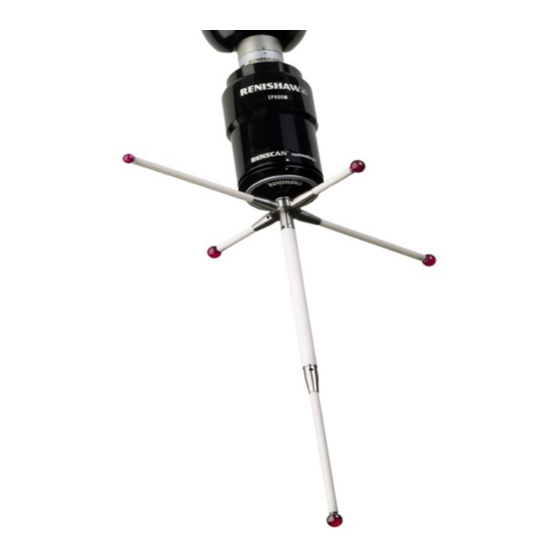

Scanning probe system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SP600 installation and user's guide
www.renishaw.com
SP600 installation and user's guide
Document part number H-1000-5175-06-B
Issued 01 2018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renishaw SP600

Summary of Contents for Renishaw SP600

  • Page 1 SP600 installation and user's guide www.renishaw.com SP600 installation and user's guide Document part number H-1000-5175-06-B Issued 01 2018...

  • Page 2: General Information

    Renishaw distributor. Warranty Renishaw plc warrants its equipment for a limited period (as set out in our Standard Terms and Conditions of Sale) provided that it is installed exactly as defined in associated Renishaw documentation. Prior consent must be obtained from Renishaw if non-Renishaw equipment (e.g. interfaces and/or cabling) is to be used or substituted.
  • Page 3 Renishaw probes and associated systems are precision tools used for obtaining precise measurements and must therefore be treated with care. Changes to Renishaw products Renishaw reserves the right to improve, change or modify its hardware or software without incurring any obligations to make changes to Renishaw equipment previously sold. Packaging...

  • Page 4: Eu Declaration Of Conformity

    SP600 installation and user's guide www.renishaw.com EU declaration of conformity Contact Renishaw plc or visit www.renishaw.com/productcompliance for the full EU declaration. Issued 01 2018...

  • Page 5: Equipment Label (47Cfr Section 15.19)

    2. This device must accept any interference received, including interference that may cause undesired operation. Information to user (47CFR section 15.21) The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user's authority to operate the equipment.

  • Page 6: International Safety Instructions

    SP600 installation and user's guide www.renishaw.com International safety instructions BG ‐ ПРЕДУПРЕЖДЕНИЕ Моля, обърнете на приложение 1 и прочетете инструкциите за безопасност на вашия собствен език, преди за разопаковате и монтирате този продукт. CZ ‐ VÝSTRAHA Před rozbalením a instalací tohoto výrobku si přečtěte bezpečnostní pokyny ve vlastním jazyce uvedené v příloze 1. DA - ADVARSEL Læs sikkerhedsinstrukserne i Appendix 1 før udpakning og installation af dette produkt! DE - WARNHINWEIS Bevor Sie dieses Produkt auspacken und installieren, konsultieren Sie bitte Anhang 1 und lesen Sie die Sicherheitshinweise in Ihrer Sprache.
  • Page 7 SP600 installation and user's guide www.renishaw.com HU ‐ FIGYELMEZTETÉSEK A termék kicsomagolása és telepítése előtt olvassa el az 1. számú függelékben található, az Ön anyanyelvén hozzáférhető biztonsági utasításokat. IT - AVVISO Prima di aprire ed installare questo prodotto, leggere le istruzioni di sicurezza nella vostra lingua riportate nell'Appendice 1 JA ‐ 警告 この製品を箱から取り出し設置する前に、付録 1 に記載された安全性に関する注意書きをお読みください。 LT ‐ ĮSPĖJIMAS Prieš išpakuodami ir įdiegdami produktą, turite grįžti prie 1 priedo ir perskaityti nurodymus dėl saugos savo kalba. LV ‐ BRĪDINĀJUMS Pirms šā izstrādājuma izsaiņošanas un uzstādīšanas izskatiet 1. pielikumā norādītās drošības instrukcijas savā valodā. MT - TWISSIJA Jekk jogħġbok mur f'appendiċi 1 sabiex taqra l­istruzzjonijiet tas­sigurtà fil­lingwa tiegħek qabel ma tispakkja u tinstalla dan il­prodott.
  • Page 8 SP600 installation and user's guide www.renishaw.com SV - VARNING Gå till bilaga 1 och läs säkerhetsinstruktionerna på ditt eget språk innan du packar upp och installerar denna produkt. 中文 ‐ 警告 在拆包和安装本产品之前，请翻到附录1，阅读中文版安全说明。 TW ‐ 警告 在拆開和安裝本產品之前，請翻頁至附錄 1 閱讀母語的安全指示。 Issued 01 2018...
  • Page 9 Safety Permanent magnets are used in some components of the SP600 / M / Q system. It is important to keep them away from items which may be affected by magnetic fields, e.g. data storage systems, pacemakers and watches etc. There is no overtravel protection in the +Z axis other than an endstop.

  • Page 10: Principles Of Operation

    This document is intended as a guide to initial installation, integration and use of the Renishaw SP600 family of analogue measurement probes. It assumes that you will be using the Renishaw AC1 or AC2 analogue counter PC card to interface the probe. If you intend to handle probe interfacing yourself then details of probe signals, power requirements etc.

  • Page 11: Product Range

    AC1 and AC2 interface cards. It is intended for use when the SP600 probe is used in a machine tool for scanning applications. For CMM usage the size of the overtravel unit make it unsuitable and the low forces applied by a CMM make it unnecessary.

  • Page 12: Scr600 Stylus Changing Rack

    SCR600 stylus changing rack The SCR600 is a stylus changing rack for use with the SP600 / M / Q. It does not require any electrical connection for operation. A mechanism in the base provides overtravel protection in the probe entry direction. The rack can house up to four stylus modules and any number of racks can be used in a system.
  • Page 13 SP600 installation and user's guide www.renishaw.com AC1 analogue counter PC card The Renishaw AC1 PC interface card is simple to install and connects directly to a standard Renishaw multiwire probe signal cable. Performs probe management functions Communicates status information to the host PC...

  • Page 14: Probe Dimensions

    SP600 installation and user's guide www.renishaw.com Probe dimensions Probe dimensions SP600 SP600M Issued 01 2018...
  • Page 15 SP600 installation and user's guide www.renishaw.com SP600Q quill mount SP600Q Issued 01 2018...

  • Page 16: Technical Specification

    Stylus length 150 mm (5.9 in) 5.6 V/mm 4.8 V/mm 4.1 V/mm 6.3 V/mm 5.1 V/mm 4.3 V/mm 5 V/mm 5 V/mm 5.3 V/mm The SP600 is designed to have 5 V/mm @ 100 mm stylus tip. Issued 01 2018...

  • Page 17: Application - Scanning

    SP600 installation and user's guide www.renishaw.com Application - scanning The probe stylus moves across the surface of the work piece of known or unknown profile by servo control of the CMM with regard to stylus deflection. This is ideal for the inspection or modelling of forms and shapes which are not standard geometric elements, are complex or which require full profile measurement (i.e.

  • Page 18: Probe Installation

    The shank is inserted into a mechanical fixing mechanism and tightened into place, with the Renishaw emblem facing the front of the CMM. The probe cable should then be connected to the external hirose connector on the side of the SP600.

  • Page 19: Sp600Q Probe

    The SP600Q is mounted directly onto the quill using four M3 screws as shown below. The cable (PL82V) is connected using a hirose connector at the probe end. The Renishaw logo must be facing to the front of the CMM.

  • Page 20: Scr600 Mounting Plate Insert

    SCR600 mounting plate insert When using SCR600 with any of the range of SP600 probes with an aquablast finish it is necessary to fit these inserts otherwise problems may occur with the port lids staying open after a stylus change.

  • Page 21: Scr600 Installation

    It is recommended that the stylus changing port units (SCP600) are attached to the rail using the following procedure where it is assumed that the MRS / MRS2 system is correctly installed. For full details, please refer to the MRS / MRS2 installation and user's guide (Renishaw part number H-1000-5088 / 5255): 1.

  • Page 22: Datuming Scr600

    SP600 installation and user's guide www.renishaw.com Datuming SCR600 Software alignment for the SCR600 This section describes the suggested software alignment routine to find the positions of the SCR600 ports. These instructions assume that the SCR600 has the X-axis as its docking axis.

  • Page 23: Position Of Docking Target Co-Ordinates

    SP600 installation and user's guide www.renishaw.com Step 4 - Establishing docking centre for ports 2 to 4 Using the centre of port 1 as a reference, add 53.5 mm (2.11 in) to establish the docking centre for port 2 (Y2) Using the centre of port 2 as a reference, add 53.5 mm (2.11 in) to establish the docking centre for port 3 (Y3)

  • Page 24: Scr600 Pick Up / Put Down Routine

    No change No change Activate the probe X(s) = Safe position to start change cycle Y(n) = Y axis position for port n CAUTION: When using a SCR600 always load stylus modules automatically with the CMM and SP600. Issued 01 2018...

  • Page 25: Datuming Scp600

    SP600 installation and user's guide www.renishaw.com Datuming SCP600 NOTE: As the SCP600 port is of modular design, it is suggested that the following routine is completed under manual control for each port installed. The following is the recommended procedure for locating and datuming the SCP600 after it is fitted to the MRS rail, and is in position on the CMM table.

  • Page 26: Scp600 Pick Up / Put Down Routines

    SP600 installation and user's guide www.renishaw.com SCP600 pick up / put down routines NOTE: The following section assumes that the datum created in 'Datuming the SCP600' is the axis system that the machine is working in. Put down routine The following table lists the recommended procedure for putting down a stylus module on the SCP600. All dimensions are absolute and given in mm.
  • Page 27 Styli The SP600 uses standard Renishaw M4 thread styli, that thread into the stylus holder (SH600-STD or SH600-EXT). Styli can be changed manually by screw or by exchange of the kinematic stylus holder using the SCR600 or SCP600 stylus change rack.

  • Page 28: Probe Measurement Range

    SP600 installation and user's guide www.renishaw.com Probe measurement range The measurement range of the probe is dependent on the following parameters: Nominal range of the probe Mass of the moving structure 50 g (1.94 oz) Spring rate of the moving structure 135 g/mm (4.76 oz/mm)

  • Page 29: Typical Stylus Tip Measuring Range

    SP600 installation and user's guide www.renishaw.com Typical stylus tip measuring range The table below gives an example of a typical probe's measuring range (at the stylus tip) for a range of stylus masses and probe orientations. Stylus mass Probe orientation 4.6 g...

  • Page 30: Ac2 Interface Card

    SP600 installation and user's guide www.renishaw.com AC2 interface card The AC2 card is a 16-bit ISA expansion card that is designed to fit into one of the 16-bit expansion slots provided in a PC. The AC2 contains static sensitive components. Observe anti-static handling precautions, including the use of earth straps during handling and installation.
  • Page 31 SP600 installation and user's guide www.renishaw.com PC function Address Switch (SW1) way 1 Switch (SW1) way 2 Switch (SW1) way 3 Switch (SW1) way 4 Games adaptor 0200 PC expansion port 0210 Prototype adaptor 0280 Prototype adaptor 0300 Not defined...
  • Page 32 AC2 screening The AC2 adopt the standard screening arrangement for IBM style PCs, shown below. If the host PC screening is different to this arrangement, then the accuracy of the SP600 / AC2 system may be impaired. Issued 01 2018...

  • Page 33: System Connection

    System connection The SP600 probe connects to the AC2 via the PH10M PLUS or PH6M head and standard multiwire cables. This cable connects directly to the PH10M PLUS or PH6M head via a micro 'D' and terminates in a 15-way high-density 'D' which connects directly to the rear panel of the AC2 card.
  • Page 34 SP600 installation and user's guide www.renishaw.com SP600M and PH10M PLUS with AC2 Overtravel unit As the overtravel unit cannot be used, one of the following is required : Ignore the overtravel bit of the AC2 status byte Link pins 17 and 18 of the 26-way high density D connector...
  • Page 35 SP600 installation and user's guide www.renishaw.com SP600M and PH10M PLUS with AC2, PI 7-3 and IS1-2 SP600M with two wire touch-trigger probe Issued 01 2018...
  • Page 36 SP600 installation and user's guide www.renishaw.com Issued 01 2018...

  • Page 37: Using The Ac2 Card

    8-bit ISA bus interface in I/O space X,Y and Z measurement channels with a resolution of 12 bits Integral measurement event timer Detection of a connected SP600 / M / Q Probe power supply protection with failure monitoring Interface for the SP600 overtravel unit...
  • Page 38 SP600 installation and user's guide www.renishaw.com Detection of a connected SP600/M/Q This is carried out automatically by the AC2. When the AC2 recognises that it is connected to an SP600 / M / Q probe, it applies power to the probe.  Software can inspect whether a probe is fitted by first writing a “1” to the REQUEST SET PROBE PRESENT bit (bit “10” of register “13”), then reading the PROBE PRESENT bit will be reset to “0” automatically.  This feature is included so that software can detect that a probe has been disconnected, then reconnected since the PROBE PRESENT bit was last inspected.

  • Page 39: Ac2 Software Interface

    Bit 5 - TIMER OVERFLOW This bit is set to “1” when the timer has overflowed. It is reset to “0” when the timer has been reset. Bit 4 - PROBE PRESENT This bit is set to “1” if an SP600 / M / Q probe has been connected to the AC2 and the REQUEST SET PROBE PRESENT bit has been written to with a “1” (see 'Detection of a connected SP600 / M / Q section'). If the probe is disconnected from the AC2, then the bit automatically resets to “0”. Bit 3 - OVERTRAVEL ERROR This bit is set to “1” if the overtravel unit is overtravelled or not connected. It is set to zero if the overtravel unit is connected, not overtravelled, and the REQUEST RESET OVERTRAVEL bit has been written to with a “1” (see 'Interface for the SP600 overtravel...

  • Page 40: Pics And Interrupt Status Register Definitions

    SP600 installation and user's guide www.renishaw.com AC2 I/O map Register name Base address offset Bit reference Data Read / write X axis LO byte 7 to 0 2's complement 12 bit count 8000H to 7FFFH Read only X axis HI byte...

  • Page 41: Command Register Definitions

    SP600 installation and user's guide www.renishaw.com Command register definitions Not used (set to logic 0) BUSY TIMER OVERFLOW PROBE PRESENT OVERTRAVEL 5 V OVERCURRENT -12 V OVERCURRENT +12 V OVERCURRENT Acquisition mode register definitions Interrupt line select bit 2 Interrupt line select bit 1...

  • Page 42: Command Register (Base Address + 13)

    SP600 installation and user's guide www.renishaw.com Command register (base address + 13) This write­only register allows the software to control the AC2.  Functions are commanded by writing a “1” to the appropriate bit.  When a “0” is written to a bit, nothing happens.  This allows the software to control individual functions by writing to selected bits with a “1”, while leaving the other bits set to “0”. The command bits are shown below: Bits 15 to 12 Not used Bit 11 - ACQUIRE data and latch timer count Writing a “1” to this bit causes the AC2 to acquire the SP600 axis deflections and latch the time stamp. The data is presented in registers “5” to “0”, and the time stamp is latched into registers “7” and “6”. While the data acquisitions process takes place, its progress can be monitored by inspecting the BUSY bit in the status register. Writing a “1” to this bit can take place in any of the AC2 operating modes and will result in data acquisition.

  • Page 43: Acquisition Mode Select Register (Base Address + 12)

    SP600 installation and user's guide www.renishaw.com Acquisition mode select register (base address + 12) This read/write register allows the software to set the AC2 to the required acquisition mode, with a selected interrupt (if required). The command bits are shown below: Bits 7 to 5 - INTERRUPT SELECTION Writing the data pattern shown in the table below will select the interrupt shown in the table.
  • Page 44 SP600 installation and user's guide www.renishaw.com Acquisition mode bit select Acquisition mode bit 210 Mode Mode type ISA bus acquire without PICS SYNC (default) ISA bus acquire with PICS SYNC and HALT PICS READ without interrupt PICS READ with interrupt...
  • Page 45 SP600 installation and user's guide www.renishaw.com Mode 4 Reversed direction interrupt without PICS SYNC (used by some CMM controllers) In this mode the AC2 responds as in mode 0 when to bit “11” of the command register is written to with a “1”. In addition, when the AC2 sees a rising edge on the interrupt selected by bits “7”, “6” and “5” of the acquisition mode selection register, the timer value is latched, the BUSY bit is set and the conversion of the three measurement channels begins. The BUSY bit is lowered in the same way as for mode 0. A second conversion will not occur until after the selected interrupt has gone to logic “0” again. Bit “4” of the acquisition mode register is...
  • Page 46 SP600 installation and user's guide www.renishaw.com PICS and interrupt status register (base address + 10) This read only register returns the status of the AC2 card. The status bits are shown below: Bits 7 to 4 Not used Bit 3 - PICS READ This bit is set to “1” when PICSREAD is asserted (pulled low) by a device connected to the PICS interface. It is reset to “0” when...
  • Page 47 SP600 installation and user's guide www.renishaw.com Timer count LO and HI bytes (base address +7 and +6) These read-only registers return the latched LO and HI byte of the AC2 internal timer. The latched timer value is updated each time axis deflections are required.

  • Page 48: Sp600 Probe Connector

    SP600 installation and user's guide www.renishaw.com SP600 probe connector Probe connector signal definitions The probe connector is a 15­way high density ‘D' socket. Its pin­out is shown in the table below. Connector pin no. Description Type +5 V Power output High impedence 0 V_POWER Power return Signal input Signal input +12 V Power output -12 V Power output...

  • Page 49: Sp600 Overtravel / Pics Connector

    SP600 overtravel / PICS connector Overtravel / PICS connector signal definitions This 26­pin high­density ‘D' type plug replaces the 9­pin ‘D' type overtravel connector on the AC1. Adaptor cables are available to allow connection to an existing overtravel cable (PL113) and to standard Renishaw PICS cables (PL112). Its pin-out are shown in the table below: Connector pin no. Description Type...
  • Page 50 SP600 installation and user's guide www.renishaw.com Connector pin no. Description Type 150R PULL UP Signal input PROBE SIGNAL High impedence LEDA (IN) Signal output 0 V (IN) Power return ______ Signal input PPOFF (IN) _____ Signal output STOP (IN) Shell...

  • Page 51: Modes Of Operation

    CMM, and additionally that the probe does not need calibration. Static point measurement mode: Static averaging method. SP600 can be used to take single points to give increased accuracy whilst reducing the effects of machine vibration by performing static averaging.

  • Page 52: Probe Deflections

    A value below the maximum probe deflection. When this deflection is reached, the CMM recognises that the stylus is close to the limits of the probe's range and that it must take action to re-centre the probe. Renishaw recommends that this limit is set 0.25 mm (0.01 in) below the maximum probe deflection, although this may not always be possible and may be altered depending upon the CMM control characteristics, scanning speed etc.

  • Page 53: Return To Zero

    Reorientation The SP600M probe may be used in different orientations when mounted on a Renishaw PH10M PLUS motorised head. The design has been optimised to allow this but it will have some effect on the distribution of the measuring ranges available in each axis.

  • Page 54: Sp600 Fault Diagnosis

    If the test program works correctly but the probe axis outputs have failed or the probe present signal is not given, check system connections and the probe cable (either by replacement or for continuity). If the fault persists please contact Renishaw, as the system must be returned for repair.

  • Page 55: Appendix 1 - Probe Signals

    Appendix 1 - Probe signals It is strongly recommended that the Renishaw AC2 card is used to interface the SP600M probe. However, should you wish to attempt to power the probe and deal with its outputs by your own means, the following information is necessary.
  • Page 56 SP600 installation and user's guide www.renishaw.com HDD pin no. Wire colour Signal description Signal type Orange Analogue signal Violet Analogue signal Yellow Analogue signal + 12 V Power output Blue - 12 V Power output Blue/White 0 V-reference Power output...

  • Page 57: Appendix 2 - Cables

    SP600 installation and user's guide www.renishaw.com Appendix 2 - Cables The following are standard Renishaw multiwired probe signal cables suitable for use with the SP600M system between probe head and AC2 card. Cable Length (m) Connectors Part number PL38V Micro 'D' 15-way high-density...

  • Page 58: Appendix 3 - Multiple Renishaw Probe Type Installations

    The IS1-2 has four separate outputs and is fully compatible with Renishaw's autochange system and motorised heads via the Renishaw product interconnection system (PICS). This allows any combination of the following Renishaw probes:...
  • Page 59 Renishaw plc +44 (0)1453 524524 New Mills, Wotton-under-Edge, +44 (0)1453 524901 Gloucestershire, GL12 8JR United Kingdom www.renishaw.com/cmmsupport For worldwide contact details, please visit our main website at www.renishaw.com/contact Issued 01 2018...
