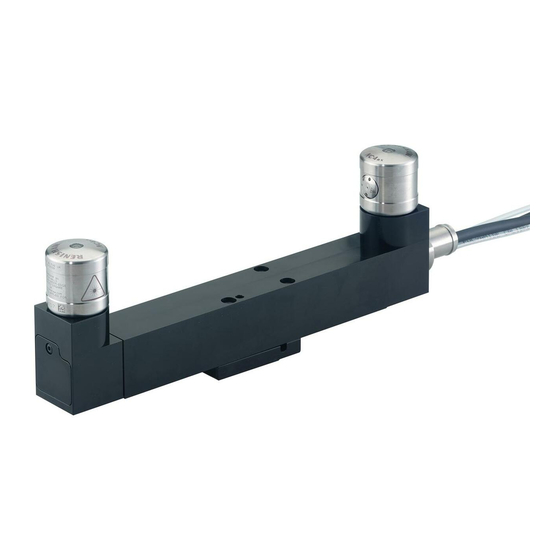

Summary of Contents for Renishaw NC4

  • Page 1 Cleaning instructions H-2000-4098-03-B Întretinere NC4 - Curatare sistem optic NC4 Servicing - Cleaning the optics Entretien NC4 - Nettoyage des composants optiques Limba romana English Français...
  • Page 2 RO LIMITE GARANTIE RENISHAW FACE EFORTURI SUSŢINUTE PENTRU A ASIGURA CORECTITUDINEA DATELOR CONŢINUTE ÎN ACESTI DOCUMENT LA DATA PUBLICĂRII - DAR NU O POATE GARANTA. RENISHAW NU IŞI ASUMĂ NICI O RESPONSABILITATE CA URMARE A UNOR EVENTUALE ERORI EXISTENTE ÎN ACEST DOCUMENT.
  • Page 3 RO ATENŢIE – RADIAŢII LASER în cazul în care panoul de acces este înlăturat există pericolul de expunere la radiaţii laser de clasa 3R. Opriţi alimentarea cu energie electrică înainte de a efectua orice operaţii de verificare sau întreţinere. EN WARNING - LASER RADIATION Class 3R laser radiation is accessible when the access panel is removed.
  • Page 4 Cleaning instructions NC4 servicing - cleaning the optics De ce veti avea nevoie… Pentru mai multe detalii vezi si H-2000-5230 You will need … For further information refer to H-2000-5230 Il vous faut… Pour de plus amples renseignements, consultez H-2000-5230 www.renishaw.com...
  • Page 5 Cleaning instructions NC4 servicing - cleaning the optics 0 bar Această imagine reprezintă un filtru de aer obișnuit şi este prezentată în scopuri ilustrative. Filtrul de aer montat pe maşina poate diferi de cel din imagine. This figure shows a typical air filter and is shown for illustrative purposes.
  • Page 6 Cleaning instructions NC4 servicing - cleaning the optics Demontati capacul protector Remove access panel Retirez le bouchon d’accès...
  • Page 7 Cleaning instructions NC4 servicing - cleaning the optics Montati dispozitivul de curatire si rotiti-l cu 70 - 80 de grade Insert cleaning tool and rotate 70 to 80 degrees Introduisez l’outil de nettoyage et faites-le tourner sur 70 à 80°...
  • Page 8 Cleaning instructions NC4 servicing - cleaning the optics Curatati folosind spray-ul degresant si betisoare înmuiate în solutie de sapun Clean with solvent and soaked swab Nettoyez avec du solvant et avec un bâtonnet trempé...
  • Page 9 Cleaning instructions NC4 servicing - cleaning the optics Stergeti folosind un betisor uscat Clean with dry swab Nettoyez avec un bâtonnet sec...
  • Page 10 Cleaning instructions NC4 servicing - cleaning the optics Uscati sistemul optic cu un jet de aer comprimat Dry optics with clean air Séchez les composants optiques à l’air propre...
  • Page 11 Cleaning instructions NC4 servicing - cleaning the optics   Controlati si re-curatati pâna ce orificiul este perfect curat Clean and inspect Nettoyez et inspectez...
  • Page 12 Cleaning instructions NC4 servicing - cleaning the optics Re-montati capacul protector Assemble access panel Remontez le bouchon d’accès...
  • Page 13 Cleaning instructions NC4 servicing - cleaning the optics Repetati operatiile pentru celalalt capat Repeat Répétez l’opération...
  • Page 14 Cleaning instructions NC4 servicing - cleaning the optics Porniti alimentarea cu aer comprimat si curent electric Restore electrical power and air supply Rétablissez les alimentations électrique et pneumatique...
  • Page 15 Cleaning instructions NC4 servicing - cleaning the optics   Verificati fascicolul laser Check laser beam Vérifiez le faisceau laser...
  • Page 16 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge, uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, please visit our main website at www.renishaw.com/contact *H-2000-4098-03*...
