8 SYSTEM DESCRIPTION

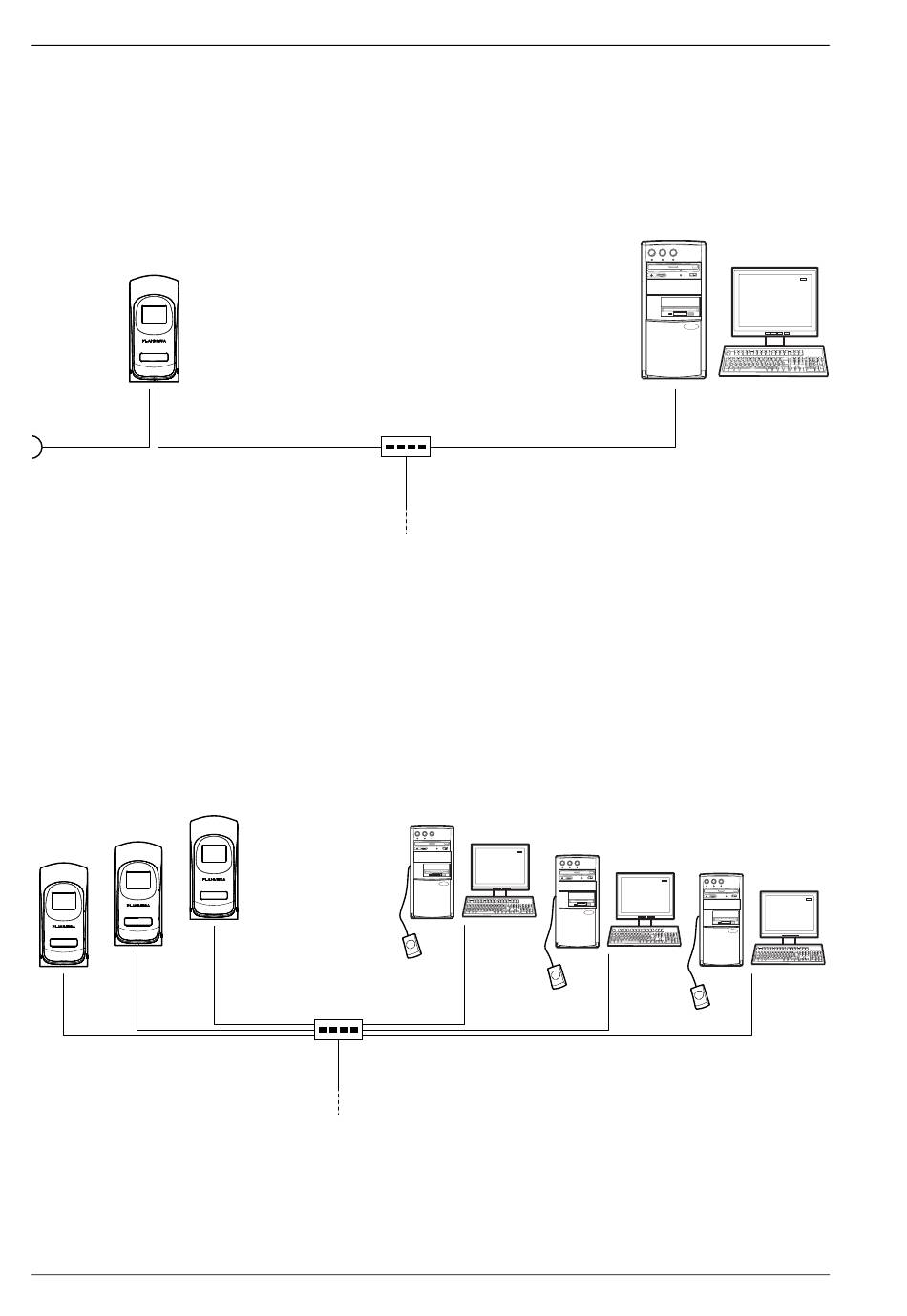

8.2 1-to-1 Ethernet network configuration

Planmeca
ProScanner
Ethernet cable Max. 100m
100 - 240 VAC
CAT.5E, RJ45 FTP
Cross / Direct Type Cable

8.3 N-to-N Ethernet

Planmeca
ProScanner
Ethernet cable Max. 100m
CAT.5E, RJ45 FTP
Cross / Direct Type Cable
14 Planmeca ProScanner
Planmeca ProScanner is attached to a HUB/
switch using Ethernet connection. Crossed or
straight Ethernet cable can be used depending
on the HUB/switch type.
Hub
Ethernet cable Max. 100m
CAT.5E, RJ45 FTP
Cross / Direct Type Cable
Planmeca ProScanner can be shared in the
network between several treatment rooms.
Planmeca ProScanner is attached to a HUB/
Switch using Ethernet connection. Planmeca
ProID readers are attached to the PC in the
treatment rooms with mini USB cable.
Hub
Ethernet cable Max. 100m
CAT.5E, RJ45 FTP
Cross / Direct Type Cable
Romexis PC
Romexis PC
User's & installation manual
