Summary of Contents for Kramer TP-780T
- Page 1 USER MANUAL MODELS: TP-780T HDMI Line Transmitter + POE TP-780R HDMI Line Receiver + POE P/N: 2900-300575 Rev 2 www.kramerAV.com...
-
Page 4: Table Of Contents
Figure 2: TP-780R HDMI Line Receiver + POE Figure 3: Connecting the TP-780T/ TP-780R Transmitter/Receiver Pair Figure 4: Controlling a DVD Player via the TP-780T/R Figure 5: Controlling an LCD Display via the TP-780T/R Figure 6: RS-232 Control via the TP-780T/R Figure 7: TP PINOUT TP-780T/R –... -
Page 5: Introduction
• Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios • Rental and staging Note that TP-780T and TP-780R are purchased separately, and can be connected to other HDBaseT certified transmitters and receivers, respectively. TP-780T/R - Introduction... -
Page 6: Getting Started
Avoid interference from neighbouring electrical appliances that may adversely influence signal quality • Position your TP-780T/R away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 7: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 8: Overview
This allows a single HDBT LAN cable to provide both data and electrical power to compatible devices. The TP-780T and the TP-780R can form a transmission and reception system either together or each device separately with another certified HDBaseT device. -
Page 9: About Hdbaset™ Technology
100 meters (320 feet). Beyond this range, a 12V DC power supply must be connected to the PoE receiver. The TP-780T is a PoE injector. It cannot receive power from another PoE injector but only from a 48V DC power supply. -
Page 10: Using Twisted Pair Cable
Using Twisted Pair Cable Kramer engineers have developed special twisted pair cables to best match our BC−HDKat6a digital twisted pair products; the Kramer (CAT 6 23 AWG cable) significantly outperforms regular CAT 5 / CAT 6 cables. We strongly recommend that you use shielded twisted pair cable. -

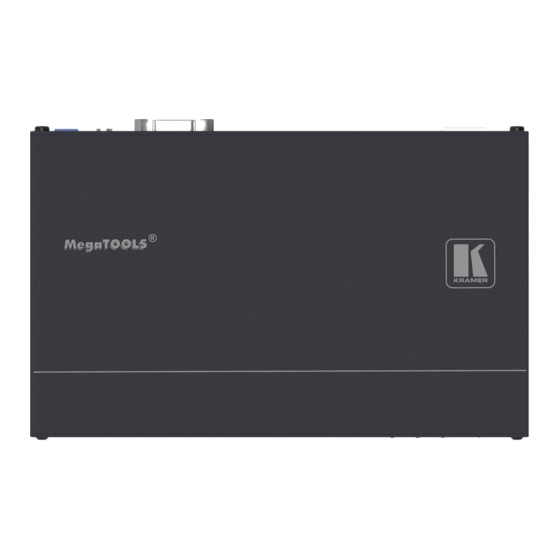

Page 11: Defining The Tp-780T Hdmi Line Transmitter + Poe
Defining the TP-780T HDMI Line Transmitter + POE Figure 1: TP-780T HDMI Line Transmitter + POE Feature Function IN LED Lights green when an HDMI input device is connected OUT LED Lights green when an HDMI output device is detected... -
Page 12: Defining The Tp-780R Hdmi Line Receiver + Poe
HDMI OUT Connector Connects to the HDMI acceptor PROG/NORMAL Button Slide to PROG to upgrade to the latest Kramer firmware via RS-232, or slide to NORMAL for normal operation RS-232 9-pin D-sub Connects to an RS-232 port for firmware upgrade and... -
Page 13: Connecting The Tp-780T/R
Transmitter and Receiver. After connecting your Transmitter and Receiver, connect their power and then switch on the power to each device. You can use the TP-780T/R HDMI Line Transmitter/Receiver + POE to configure an HDMI transmitter/receiver system, as shown in the example in Figure To connect the TP-780T, connect the: 1. -
Page 14: Figure 3: Connecting The Tp-780T/ Tp-780R Transmitter/Receiver Pair
Figure 3: Connecting the TP-780T/ TP-780R Transmitter/Receiver Pair TP-780T/R - Connecting the TP-780T/R... -
Page 15: Controlling Av Equipment Via An Ir Transmitter
DVD player) to send commands (to the AV equipment) from either end of the transmitter /receiver system. To do so, you must use the Kramer external IR sensor on one end (P/N: 95-0104050) and the Kramer IR emitter cable on the other end (P/N: C-A35/IRE-10) Two IR emitter extension cables are also available: a 15 meter and 20 meter cable. -
Page 16: Figure 4: Controlling A Dvd Player Via The Tp-780T/R
DVD player that is connected to TP-780T using a remote control, via the TP-780R. In this example, the external IR sensor is connected to the IR connector of the TP-780R and an IR emitter is connected between the TP-780T and the DVD player. -
Page 17: Figure 5: Controlling An Lcd Display Via The Tp-780T/R
In this example, the external IR sensor is connected to the IR connector of the TP-780T and an IR emitter is connected between the TP-780R and the LCD display. The LCD display remote control sends a command while pointing towards the external IR sensor. -
Page 18: Connecting To A Pc
5 to pin 5 need to be connected) to the RS-232 9-pin D-sub port on your Figure 6 shows RS-232 bidirectional control of the projector that is connected to TP-780R, via a PC connected to the TP-780T: Figure 6: RS-232 Control via the TP-780T/R TP-780T/R - Connecting the TP-780T/R... -
Page 19: Wiring The Rj-45 Connectors
Note, that the cable ground shielding must be connected / soldered to the connector shield. Figure 7: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown TP-780T/R - Wiring the RJ-45 Connectors... -
Page 20: Technical Specifications
Power supply 12V/2A Bracket installation kit Bracket installation kit OPTIONS: RK-T2B 19” rack mount; Kramer external IR sensor (P/N: 95-0104050), Kramer IR emitter cable (P/N: C-A35/IRE-10); Kramer BC−HDKat6a cable Specifications are subject to change without notice For the most updated resolution list, go to our Web site at http://www.kramerelectronics.com... - Page 22 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site to find updates to this user manual. We welcome your questions, comments, and feedback.
