Summary of Contents for Kramer TP-210
- Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Model: TP-210 XGA Line Transmitter/DA...
-
Page 2: Table Of Contents
Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP) Recommendations for Achieving the Best Performance Your TP-210 XGA Line Transmitter/DA Installing the TP-210 XGA Line Transmitter/DA in a Rack Connecting the TP-210 XGA Line Transmitter/DA Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors... -
Page 3: Introduction
2 We recommend that you use only the power cord supplied with this device 3 Download up-to-date Kramer user manuals from our Web site at www.KramerAV.com 4 The complete list of Kramer cables is on our Web site at www.KramerAV.com... -
Page 4: Quick Start
Getting Started Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Each output on the TP-210 can supply up to 500mA/12V, but no more than 2.5A in total (for all the outputs). Before using this feature, be sure that the TP-210 is capable of providing the current requirements of the CAT 5 receivers. -
Page 6: Shielded Twisted Pair (Stp)/Unshielded Twisted Pair (Utp)
We recommend that you use Shielded Twisted Pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. For cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. -
Page 7: Figure 1: Tp-210 Xga Line Transmitter/Da

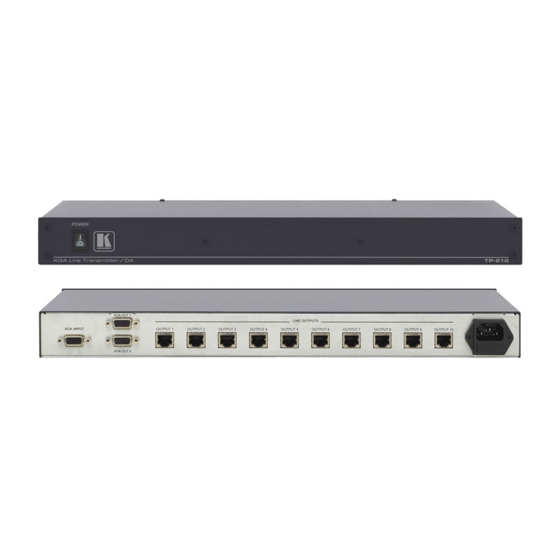

Your TP-210 XGA Line Transmitter/DA Figure 1: TP-210 XGA Line Transmitter/DA... -
Page 8: Figure 2: Tp-210 Xga Line Transmitter/Da Underside View
Your TP-210 XGA Line Transmitter/DA Table 1: Front Panel TP-210 XGA Line Transmitter/DA Features Feature Function POWER Switch Illuminated switch for turning the unit ON or OFF XGA INPUT 15-pin HD Connector Connects to the video source XGA OUT 2 15-pin HD Connector... -
Page 9: Installing The Tp-210 Xga Line Transmitter/Da In A Rack
Installing the TP-210 XGA Line Transmitter/DA in a Rack Installing the TP-210 XGA Line Transmitter/DA in a Rack This section provides instructions for rack mounting the unit. -
Page 10: Connecting The Tp-210 Xga Line Transmitter/Da
1 You do not have to connect all the LINE OUTPUTS 2 Alternatively, you can use a different Kramer receiver, for example, the Kramer PT-120 3 We recommend that you use only the power cord that is supplied with this machine... -
Page 11: Figure 3: Connecting The Tp-210 Xga Line Transmitter/Da
Connecting the TP-210 XGA Line Transmitter/DA Figure 3: Connecting the TP-210 XGA Line Transmitter/DA... -
Page 12: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
7 and 8 Technical Specifications Table 4 defines the technical specifications Table 4: Technical Specifications of the TP-210 INPUTS: 1 XGA on an 15-pin HD (F) connector OUTPUTS: 2 XGA on 15-pin HD (F) connectors; 10 CAT 5 on RJ-45 connectors MAX. - Page 13 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.KramerAV.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
