- Page 1 USER MANUAL MODEL: TP‑580TD, TP‑580RD DVI Line Transmitter / Receiver P/N: 2900-300868 Rev 1 www.KramerAV.com...
-
Page 2: Table Of Contents
Kramer Electronics Ltd. Contents Introduction Getting Started Overview Typical Applications Defining the TP‑580TD DVI Line Transmitter Defining the TP‑580RD DVI Line Receiver Connecting the TP‑580TD, TP‑580RD DVI Line Transmitter / Receiver Wiring the HDBT RJ 45 Connectors Controlling A/V Equipment via an IR Remote Control Connecting to TP‑580TD, TP‑580RD via RS-232... -
Page 3: Introduction
Safety Instructions Caution: There are no operator serviceable parts inside the unit Warning: Use only the Kramer Electronics power supply that is provided with the unit Warning: Disconnect the power and unplug the unit from the wall before installing Recycling Kramer Products... -
Page 4: Overview
Kramer Electronics Ltd. arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling. Overview Congratulations on purchasing your Kramer TP‑580TD DVI Line Transmitter and/or TP‑ 580RD DVI Line Receiver. -
Page 5: Typical Applications
Kramer Electronics Ltd. Typical Applications TP‑580TD TP‑580RD are ideal for the following typical applications: • Medical operation rooms and other critical AV extension applications. • Highly reliable, long-distance extension of high-quality professional AV signals via lockable cable connections. • Governmental high-reliability AV extension applications. -

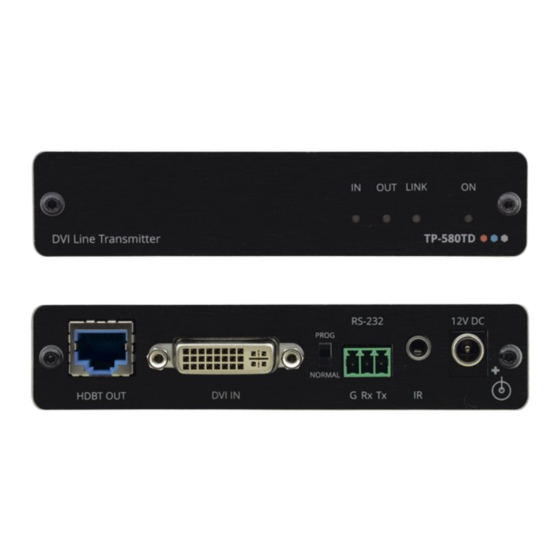

Page 6: Defining The Tp-580Td Dvi Line Transmitter
Connect to the HDBT IN connector on a receiver (for example, TP‑580RD). Connector DVI IN Connector Connect to a DVI source. PROG/NORMAL Slide to PROG to upgrade to the latest Kramer firmware via RS-232 or slide to Switch NORMAL for normal operation. RS-232 3-pin Connect to a laptop to control TP‑580TD... -
Page 7: Defining The Tp-580Rd Dvi Line Receiver
Connector 580TD). DVI OUT Connect to a DVI acceptor. Connector PROG/NORMAL Slide to PROG to upgrade to the latest Kramer firmware via RS-232 or slide to Switch NORMAL for normal operation. RS-232 3-pin Connect to a laptop to control TP‑580RD or perform firmware upgrade. -
Page 8: Connecting The Tp-580Td, Tp-580Rd Dvi Line Transmitter / Receiver
2. Connect the DVI OUT connector to the DVI acceptor, (for example, a display). 3. On the TP‑580TD, connect the RS-232 3-pin terminal block connector to the RS-232 port of a controller device (for example, the Kramer SL-240C). 4. On the TP‑580RD, connect the RS-232 3-pin terminal block to the device to be... -
Page 9: Wiring The Hdbt Rj 45 Connectors
Blu-ray disk player) to send commands from the receiver system to the transmitter or to send commands from the transmitter system to the receiver. To use an IR remote-control transmitter, connect the Kramer IR sensor cable at one end, and the Kramer IR emitter cable at the other end. -
Page 10: Connecting To Tp-580Td, Tp-580Rd Via Rs-232
Kramer Electronics Ltd. Connecting to TP‑580TD, TP‑580RD via RS-232 TP‑580TD TP‑580RD each feature an RS-232 3-pin terminal block connector that can be used to: • Extend serial communication data between serial-enabled devices that are connected to TP‑580TD and TP‑580RD. •... -
Page 11: Technical Specifications
Kramer Electronics Ltd. Technical Specifications TP‑580TD Input DVI-D/HDMI On a DVI-I female connector Output HDBaseT On an RJ-45 female connector TP‑580RD Input HDBaseT On an RJ-45 connector Output DVI-D/HDMI On a female DVI-I connector General Ports On a 3.5mm mini jack for IR link... - Page 12 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
- Page 13 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
