- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: TP-205A XGA / Audio / RS-232 Line Transmitter / DA...
-
Page 2: Table Of Contents
Figure 4: Looping the TP-205A Figure 5: CAT 5 PINOUT Figure 6: RS-232 PINOUT Connection Tables Table 1: TP-205A Features Table 2: Features of the TP-205A Underside Table 3: CAT 5 PINOUT Table 4: RS-232 PINOUT Connection Table 5: Technical Specifications of the TP-205A... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview

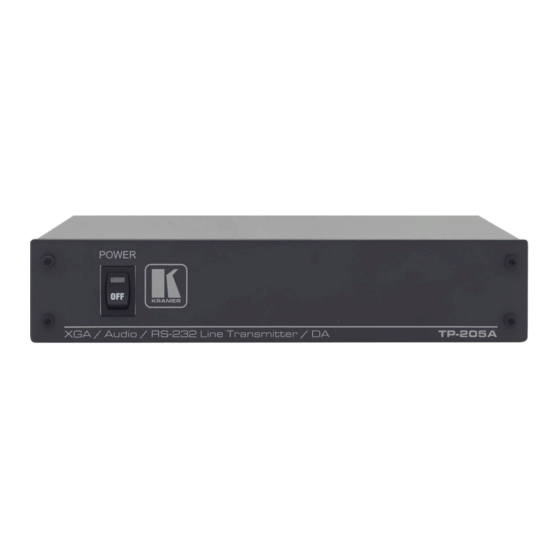

Overview Overview This section describes: The TP-205A XGA / Audio / RS-232 Line Transmitter / DA, see section The power connect feature, see section 3.2 Using shielded twisted pair (STP) / unshielded twisted pair (UTP), see section 3.3 Recommendations for achieving the best performance, see section 3.4 3.1 Your TP-205A... -
Page 6: Shielded Twisted Pair (Stp) / Unshielded Twisted Pair (Utp)
We recommend that you use shielded twisted pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our UTP skew-free cable, Kramer BC-XTP, is intended for transmitting VGA signals and recommended for this pair of machines. -
Page 7: Your Tp-205A
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 5) 2 For example, the Kramer TP-124, the Kramer TP-46, and so on 3 RS-232 can be embedded only when the S/PDIF ANALOG Selector Button is set to the analog state... -
Page 8: The Tp-205A Underside
Your TP-205A 4.1.1 The TP-205A Underside Figure 2 and Table 2 define the underside of the TP-205A Figure 2: TP-205A Underside Table 2: Features of the TP-205A Underside Feature Function HS Switch Slide the switch up, to set the H SYNC to negative polarity (NEGATIVE) -
Page 9: Configuring The Tp-205A
3 If the digital audio input is selected, release the SELECT button 4 The two right pins (GND and LOOP) can be connected to the GND and IN connectors on an additional TP-205A unit 5 As defined in Figure 6 and Table 4 (see section 5.4) 6 You do not have to connect all the outputs 7 Refer to the separate user manual, which can be downloaded from the Internet at http://www.kramerelectronics.com... -
Page 10: Figure 3: Connecting The Xga / Audio / Data Line Transmitter / Receiver System
Configuring the TP-205A 5. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity. 6. If necessary, set the H SYNC and V SYNC switches on the underside. Figure 3: Connecting the XGA / Audio / Data Line Transmitter / Receiver System... -
Page 11: Looping The Tp-205A
Figure 4: Looping the TP-205A 1 The number of TP-205A units that can be looped depends upon the quality of the input signal that you require and the distance between the machines. We do not recommend cascading more than five TP-205A units... -
Page 12: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 2 PIN terminal block connector at the other end, as defined in Figure 6 and Table 4: Table 4: RS-232 PINOUT Connection PC (Controller) to TP-205A PIN 5 Connected to GND Attach the 9-pin... -
Page 13: Technical Specifications
Technical Specifications Technical Specifications Table 5 includes the technical specifications of the TP-205A: Table 5: Technical Specifications of the TP-205A INPUTS: VIDEO: 1 VGA / UXGA on an 15-pin HD connector AUDIO: 1 audio ANALOG 3.5mm mini jack, 1 audio S/PDIF RCA connector... - Page 14 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
