Kramer Electronics, Ltd.
Preliminary
USER MANUAL
Model:
TP-114
1:4 XGA/HD DA/CAT 5 Transmitter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-114 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer TP-114

Summary of Contents for Kramer TP-114

  • Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Model: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter...

  • Page 2: Table Of Contents

    Table 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter Features   Table 2: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter (Underside Panel) Features   Table 3: CAT 5 PINOUT   Table 4: Technical Specifications of the TP-114 (with 100m CAT 5 cable)

  • Page 3: Introduction

    GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com...

  • Page 4: Getting Started

    Getting Started Getting Started This quick start chart summarizes the basic setup and operation steps. Step 1: Connect the inputs and outputs - see section 5 On the TP-114, connect: On the TP-114, connect: TP-120 A computer graphics A computer graphics...

  • Page 5: Overview

    1 The terminology XGA is used throughout this manual, where this implies any RGBHV signal on an 15-pin HD connector having a resolution from VGA up to UXGA 2 The TP-114 accepts high definition resolutions: 480p, 576p, 720p, 1080i, and 1080p 3 Note that the CAT 5 connectors exclude audio...

  • Page 6: Recommendations For Achieving The Best Performance

    Overview cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. Bear in mind, though, that we advise using STP cables where possible, since the compliance to electromagnetic interference was tested using those cables. Although Unshielded Twisted Pair (UTP) cable might be preferred for long range applications, the UTP cable should be installed far away from electric cables, motors and so on, which are prone to create electrical interference.

  • Page 7: Your Tp-114 1:4 Xga/Hd Da/Cat 5 Transmitter

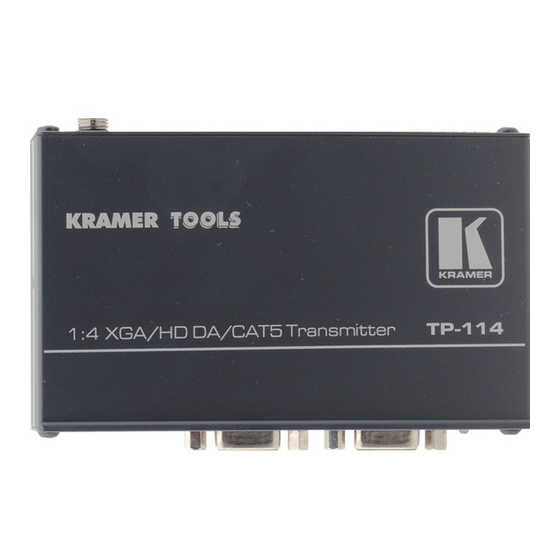

    Your TP-114 1:4 XGA/HD DA/CAT 5 Transmitter Figure 1 Table 1 define the TP-114: Figure 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter Table 1: TP-114 1:4 XGA/HD DA/CAT 5 Transmitter Features Feature Function LINE OUT 1 RJ-45 Connector Connects to...

  • Page 8: Configuring A Tp-114 Xga/Hd Line Transmitter - Da System

    DA/CAT 5 Transmitter system. This will let you transmit a computer graphics/HD signal to four displays via long line CAT 5 UTP cabling. To connect the TP-114 to four TP-120 units, as the example in Figure 3 illustrates, do the following:...
  • Page 9 XGA OUT 15-pin HD connector of the fourth TP-120 unit to the XGA/HD acceptor (for example, display 4) 3. On each Kramer TOOL, connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.

  • Page 10: Figure 3: Configuring A Tp-114 Xga/Hd Line Transmitter - Da

    Configuring a TP-114 XGA/HD Line Transmitter – DA System TP-120 Display 1 I N E TP-114 I N E Computer Graphics Source Local Display TP-120 Display 4 Figure 3: Configuring a TP-114 XGA/HD Line Transmitter – DA KRAMER: SIMPLE CREATIVE TECHNOLOGY...

  • Page 11: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors

    Technical Specifications Table 4 includes the technical specifications of the TP-114. Table 4: Technical Specifications of the TP-114 (with 100m CAT 5 cable) INPUT: 1 XGA on an 15-pin HD connector OUTPUTS: 1 XGA on an 15-pin HD connector, 4 RJ-45 OUT connectors MAX.

  • Page 12: Controls

    EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
