Summary of Contents for Kramer TP-583Txr
- Page 1 USER MANUAL MODELS: TP-583Txr, TP-583T HDMI Line Transmitter TP-583Rxr, TP-583R HDMI Line Receiver P/N: 2900-301246 Rev 1 www.KramerAV.com...
-
Page 2: Table Of Contents
Typical Applications Defining TP-583Txr and TP-583T Defining TP-583Rxr and TP-583R Mounting TP-583Txr Connecting the extenders Connecting to an Extender via RS-232 Wiring HDBT RJ-45 Connectors Controlling TP-583Txr Technical Specifications TP-583Txr and TP-583Rxr TP-583T and TP-583R TP-583Txr, TP-583Rxr, TP-583T, TP-583R – Contents... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we... -
Page 4: Overview
European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling. -
Page 5: Typical Applications
• Long-distance AV signal extension for multi-room, large dividable auditoriums and lecture hall connectivity. • AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities. TP-583Txr, TP-583Rxr, TP-583T, TP-583R – Introduction... -
Page 6: Defining Tp-583Txr And Tp-583T
(for example, the HDMI OUT acceptor) that is connected to Connector TP-583Rxr/TP-583R. IR 3.5mm Mini Jack Connect to an external infrared emitter / sensor. Connector 12V DC Power 12V DC connector for powering the unit. Connector TP-583Txr, TP-583Rxr, TP-583T, TP-583R – Defining TP-583Txr and TP-583T... -

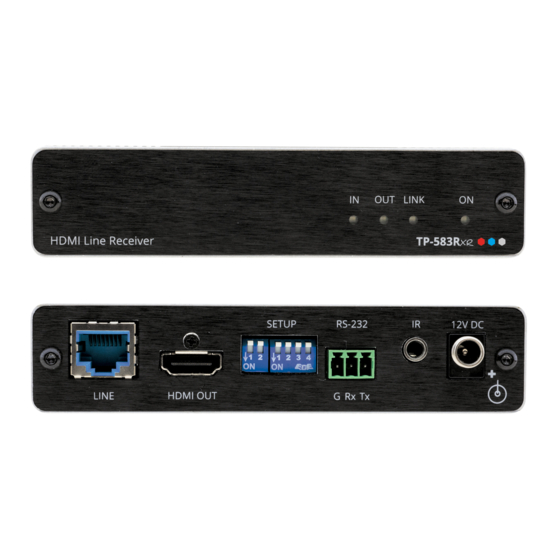

Page 7: Defining Tp-583Rxr And Tp-583R
SL-240C) that is connected to TP-583Txr/TP-583T. IR 3.5mm Mini Jack Connect to an external infrared emitter / sensor. Connector 12V DC Power Connector 12V DC connector for powering the unit. TP-583Txr, TP-583Rxr, TP-583T, TP-583R – Defining TP-583Rxr and TP-583R... -
Page 8: Mounting Tp-583Txr
Kramer Electronics Ltd. Mounting TP-583Txr This section provides instructions for mounting TP-583Txr. Before installing, verify that the environment is within the recommended range: • Operation temperature – 0 to 40C (32 to 104F). • Storage temperature – -40 to +70C (-40 to +158F). -
Page 9: Connecting The Extenders
TP-583T TP-583R are connected in the same way. Figure 3: Connecting the extenders To connect the TP-583Txr and TP-583Rxr as illustrated in the example in Figure 1. On TP-583Txr connect an HDMI source (for example, a Blu-ray player) to the HDMI IN connector 2. -
Page 10: Connecting To An Extender Via Rs-232
Connect the RS-232 terminal block on the rear panel of the extender (for example, TP-583Txr) to an RS-232 9-pin D-sub serial port on a laptop/controller, as follows: • Pin 2 to the TX pin on the... -
Page 11: Controlling Tp-583Txr
IR port is connected to an IR emitter cable). The IR Pass-through DIP-switch setup depends on the IR control configuration. We recommend that you test which position best suits your application. TP-583Txr, TP-583Rxr, TP-583T, TP-583R – Connecting the extenders... -
Page 12: Technical Specifications
High compression level 3840x2160@60Hz (4:4:4) 24bpp Compliance HDCP 2.2, HDR 10 Reach We recommend that you use Kramer shielded cables to achieve optimum extension ranges Extension (see www.kramerav.com/product/TP-583Txr). Standard Compression Up to 100m (330ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0) or... -
Page 13: Tp-583T And Tp-583R
High compression level 3840x2160@60Hz (4:4:4) 24bpp Compliance HDCP 2.2, HDR 10 Reach We recommend that you use Kramer shielded cables to achieve optimum extension ranges Extension (see www.kramerav.com/product/TP-583T). Standard Up to 40m (130ft) at 4K@60Hz (4:4:4) 4K@60Hz (4:2:0) Compression Level... - Page 14 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
- Page 15 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
