Invacare® LiNX

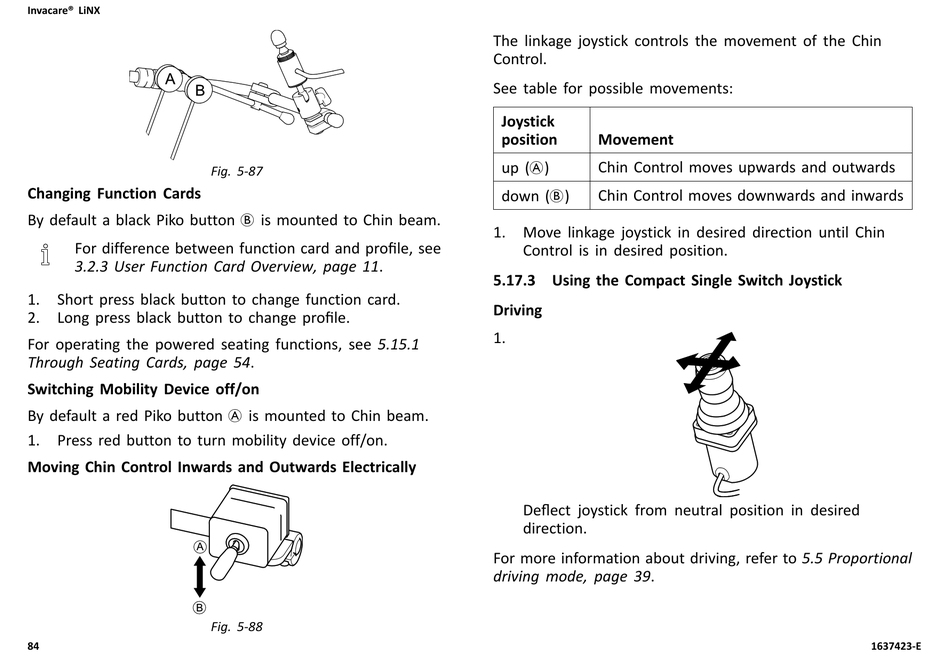

Changing Function Cards
By default a black Piko button B is mounted to Chin beam.
For difference between function card and profile, see
3.2.3 User Function Card Overview, page 11.
1. Short press black button to change function card.
2. Long press black button to change profile.
For operating the powered seating functions, see 5.15.1
Through Seating Cards, page 54.
Switching Mobility Device off/on
By default a red Piko button A is mounted to Chin beam.
1. Press red button to turn mobility device off/on.
Moving Chin Control Inwards and Outwards Electrically
84
Fig. 5-87
Fig. 5-88
The linkage joystick controls the movement of the Chin
Control.
See table for possible movements:
Joystick
position Movement
Chin Control moves upwards and outwards
up (A)
Chin Control moves downwards and inwards
down (B)
1. Move linkage joystick in desired direction until Chin
Control is in desired position.

5.17.3 Using the Compact Single Switch Joystick

Driving
1.
Deflect joystick from neutral position in desired
direction.
For more information about driving, refer to 5.5 Proportional
driving mode, page 39.
1637423-E
