Invacare® LiNX

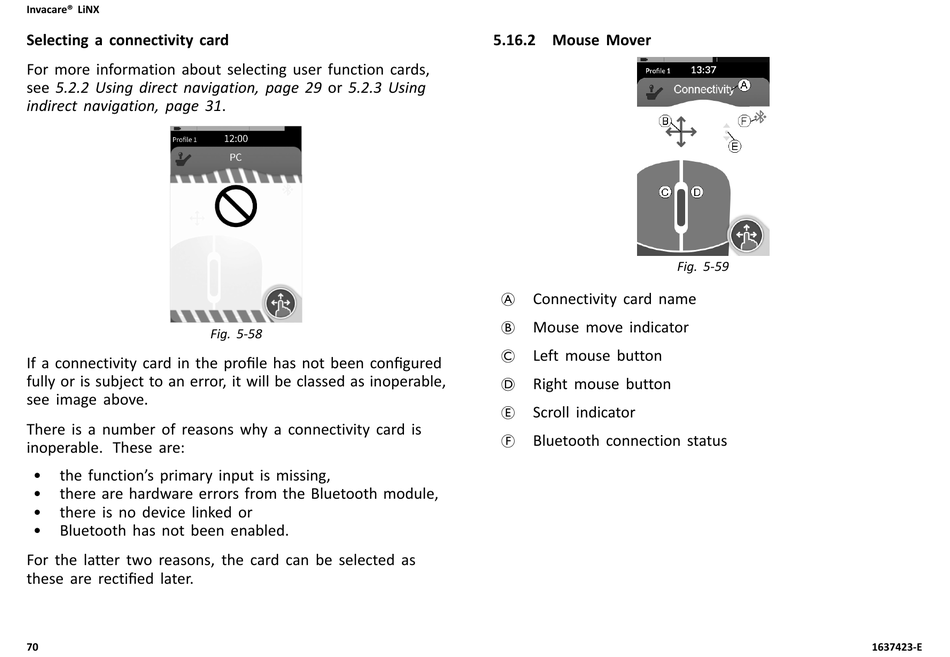

Selecting a connectivity card
For more information about selecting user function cards,
see 5.2.2 Using direct navigation, page 29 or 5.2.3 Using
indirect navigation, page 31.
If a connectivity card in the profile has not been configured
fully or is subject to an error, it will be classed as inoperable,
see image above.
There is a number of reasons why a connectivity card is
inoperable. These are:
• the function's primary input is missing,
• there are hardware errors from the Bluetooth module,
• there is no device linked or
• Bluetooth has not been enabled.
For the latter two reasons, the card can be selected as
these are rectified later.
70
Fig. 5-58

5.16.2 Mouse Mover

A Connectivity card name
B Mouse move indicator
C Left mouse button
D Right mouse button
E Scroll indicator
F Bluetooth connection status
Fig. 5-59
1637423-E
