This notifies you that a fault occurred.
The number indicates the type of fault.
See 7.1.1 Fault Codes and Diagnosis
Codes, page 102 for more information
about fault codes.
This notifies you that a seating lock-out is
active. A seating lock-out is a state that
prevents the wheelchair's seating being
operated. See 5.15.3 Speed Reduction
and Seating Function Inhibits, page 60
for more information about lock-outs
and slow-downs.
This notifies you that Bluetooth
connectivity is disabled. See 5.18
Disabling Bluetooth, page 96 for more
information about disabling Bluetooth.
Three battery alarms are shown on the right-hand side of
the status bar. See 5.19.1 Battery alarms, page 97.

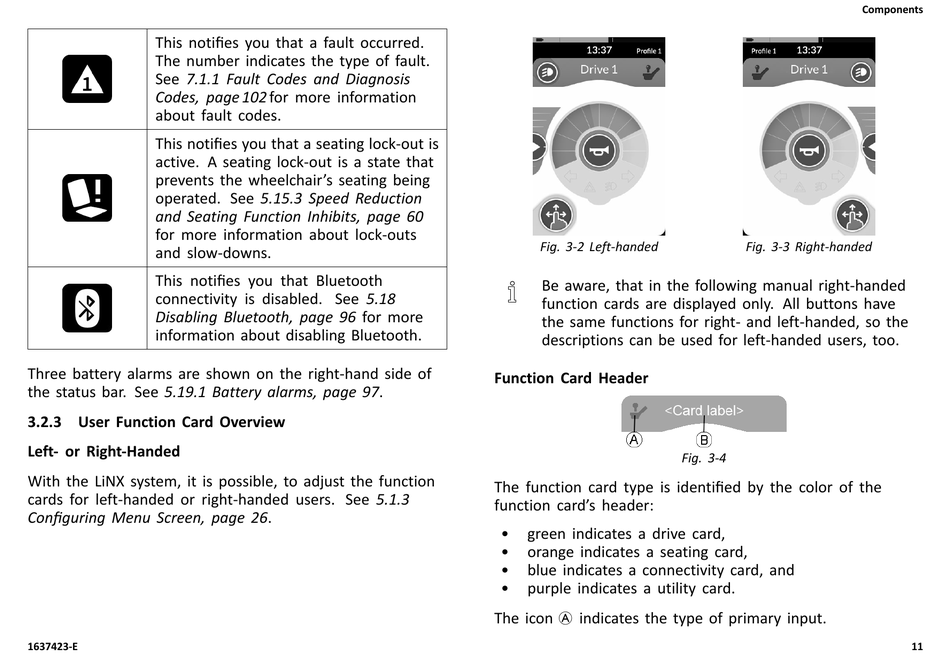

3.2.3 User Function Card Overview

Left- or Right-Handed
With the LiNX system, it is possible, to adjust the function
cards for left-handed or right-handed users. See 5.1.3
Configuring Menu Screen, page 26.
1637423-E
Fig. 3-2 Left-handed
Be aware, that in the following manual right-handed
function cards are displayed only. All buttons have
the same functions for right- and left-handed, so the
descriptions can be used for left-handed users, too.
Function Card Header
The function card type is identified by the color of the
function card's header:
• green indicates a drive card,
• orange indicates a seating card,
• blue indicates a connectivity card, and
• purple indicates a utility card.
The icon A indicates the type of primary input.
Fig. 3-3 Right-handed
Fig. 3-4
Components
