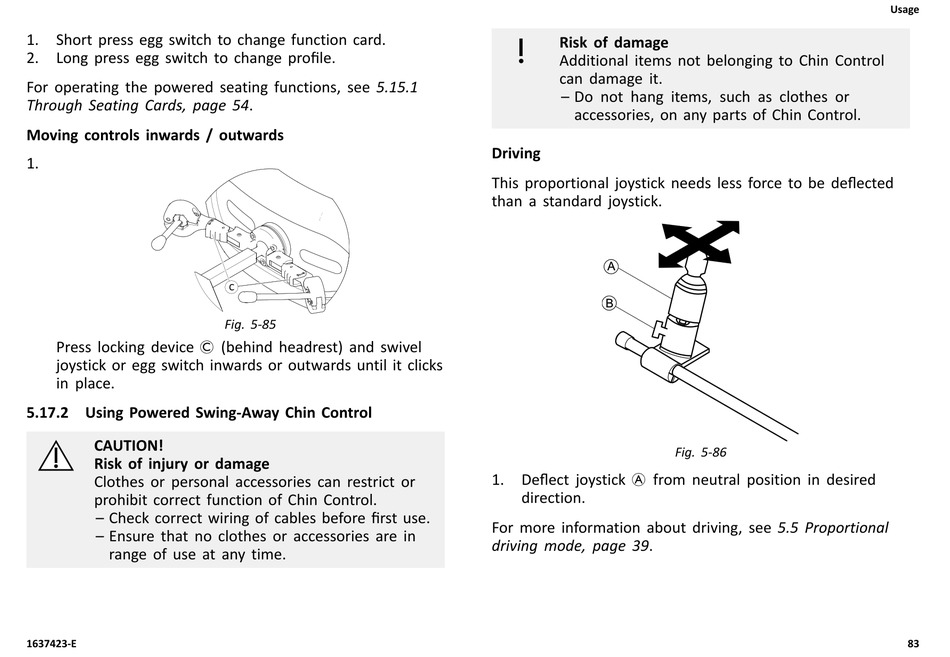

Using Powered Swing-Away Chin Control - Invacare LiNX DLX-REM400 User Manual

1. Short press egg switch to change function card.
2. Long press egg switch to change profile.
For operating the powered seating functions, see 5.15.1
Through Seating Cards, page 54.
Moving controls inwards / outwards
1.
Press locking device C (behind headrest) and swivel
joystick or egg switch inwards or outwards until it clicks
in place.

5.17.2 Using Powered Swing-Away Chin Control

CAUTION!
Risk of injury or damage
Clothes or personal accessories can restrict or
prohibit correct function of Chin Control.
– Check correct wiring of cables before first use.
– Ensure that no clothes or accessories are in
range of use at any time.
1637423-E
Fig. 5-85
Risk of damage
Additional items not belonging to Chin Control
can damage it.
– Do not hang items, such as clothes or
accessories, on any parts of Chin Control.
Driving
This proportional joystick needs less force to be deflected
than a standard joystick.
1. Deflect joystick A from neutral position in desired
direction.
For more information about driving, see 5.5 Proportional
driving mode, page 39.
Fig. 5-86
