USB EXTENDER PLUS D T
USB EXTENDER PLUS D T
A A
B B
C C
Transmitter
Config port
A
Pair button
B

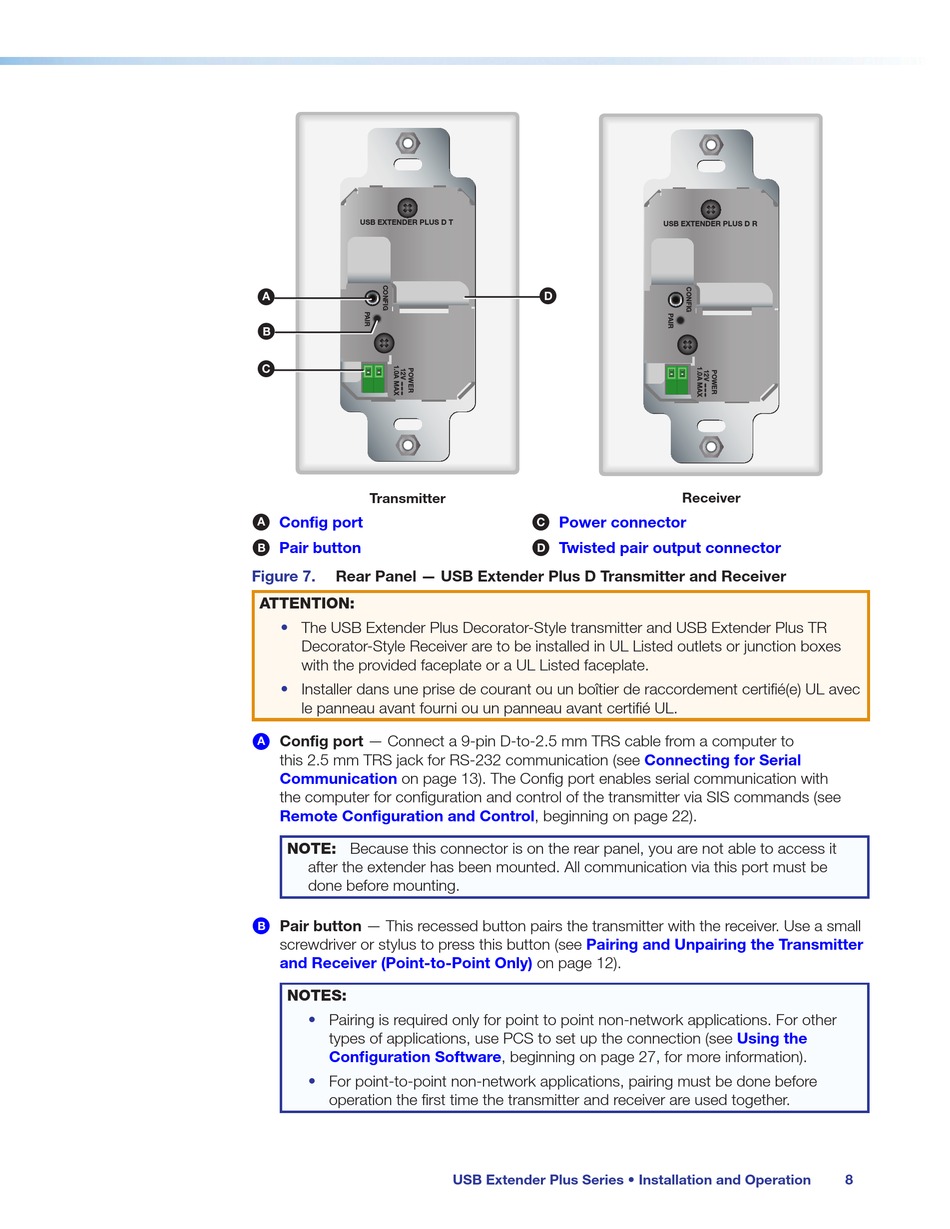

Figure 7. Rear Panel — USB Extender Plus D Transmitter and Receiver
ATTENTION:
• The USB Extender Plus Decorator-Style transmitter and USB Extender Plus TR
Decorator-Style Receiver are to be installed in UL Listed outlets or junction boxes
with the provided faceplate or a UL Listed faceplate.
• Installer dans une prise de courant ou un boîtier de raccordement certifié(e) UL avec
le panneau avant fourni ou un panneau avant certifié UL.
Config port — Connect a 9-pin D-to-2.5 mm TRS cable from a computer to
A
this 2.5 mm TRS jack for RS-232 communication (see
Communication on page 13). The Config port enables serial communication with
the computer for configuration and control of the transmitter via SIS commands (see
Remote Configuration and
NOTE: Because this connector is on the rear panel, you are not able to access it
after the extender has been mounted. All communication via this port must be
done before mounting.
Pair button — This recessed button pairs the transmitter with the receiver. Use a small
B
screwdriver or stylus to press this button (see
and Receiver (Point-to-Point Only)
NOTES:
• Pairing is required only for point to point non-network applications. For other
types of applications, use PCS to set up the connection (see
Configuration
• For point-to-point non-network applications, pairing must be done before
operation the first time the transmitter and receiver are used together.
D D
Power connector
C
Twisted pair output connector
D
Control, beginning on page 22).
Pairing and Unpairing the Transmitter
on page 12).
Software, beginning on page 27, for more information).
USB Extender Plus Series • Installation and Operation
USB EXTENDER PLUS D R USB EXTENDER PLUS D R
Receiver
Connecting for Serial
Using the
8
