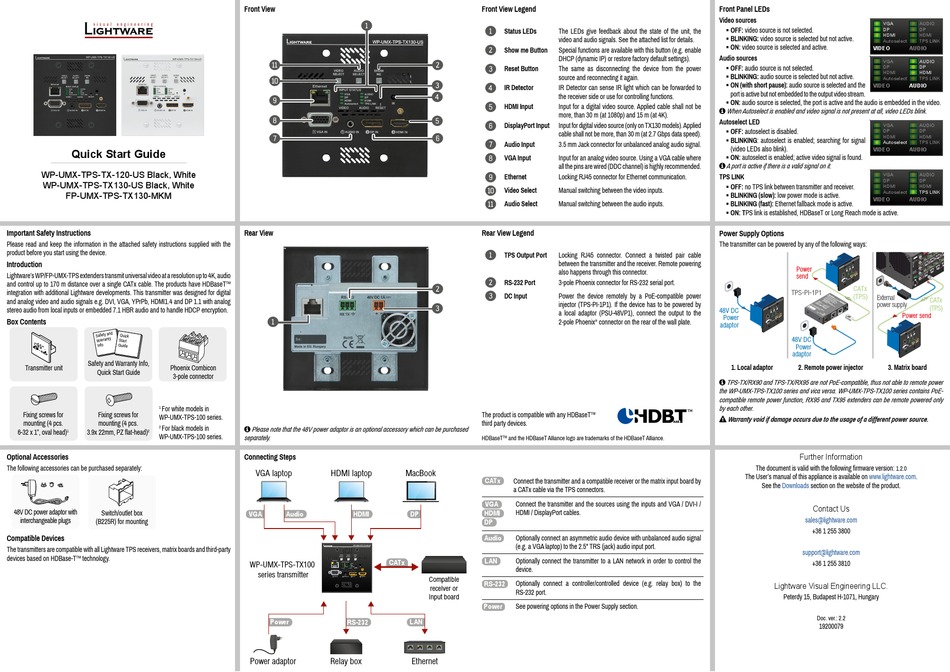

Quick Start Guide
WP-UMX-TPS-TX-120-US Black, White
WP-UMX-TPS-TX130-US Black, White
FP-UMX-TPS-TX130-MKM
Important Safety Instructions
Please read and keep the information in the attached safety instructions supplied with the
product before you start using the device.
Introduction
Lightware's WP/FP-UMX-TPS extenders transmit universal video at a resolution up to 4K, audio
and control up to 170 m distance over a single CATx cable. The products have HDBaseT
integration with additional Lightware developments. This transmitter was designed for digital
and analog video and audio signals e.g. DVI, VGA, YPrPb, HDMI1.4 and DP 1.1 with analog
stereo audio from local inputs or embedded 7.1 HBR audio and to handle HDCP encryption.
Box Contents
Safety and Warranty Info,
Transmitter unit
Phoenix Combicon
Quick Start Guide
3-pole connector
1
For white models in
Fixing screws for
Fixing screws for
WP-UMX-TPS-100 series.
mounting (4 pcs.
mounting (4 pcs.
2
For black models in
6-32 x 1", oval head)
1
3.9x 22mm, PZ flat-head)
2
WP-UMX-TPS-100 series.
Optional Accessories
The following accessories can be purchased separately:
48V DC power adaptor with
Switch/outlet box
interchangeable plugs
(B225R) for mounting
Compatible Devices
The transmitters are compatible with all Lightware TPS receivers, matrix boards and third-party
devices based on HDBase-T
technology.
TM
Front View
1
w
q
9
8
7
Rear View
TM
1
Please note that the 48V power adaptor is an optional accessory which can be purchased
separately.
Connecting Steps
VGA laptop
HDMI laptop
MacBook
VGA
Audio
HDMI
W W P P - - U U M M X X - - T T P P S S - - T T X X 1 1 3 3 0 0 - - U U S S
VIDEO
AUDIO
SHOW
SELECT
SELECT
ME
CATx
WP-UMX-TPS-TX100
Ethernet
INPUT STATUS
VGA
AUDIO
DP
DP
HDMI
HDMI
Autoselect
TPS LINK
IR
VIDEO
AUDIO
RESET
series transmitter
VGA IN
AUDIO IN
DP IN
HDMI IN
Power
RS-232
Power adaptor
Relay box
Front View Legend
1
Status LEDs
The LEDs give feedback about the state of the unit, the
video and audio signals. See the attached list for details.
2
Show me Button
Special functions are available with this button (e.g. enable
DHCP (dynamic IP) or restore factory default settings).
2
3
Reset Button
The same as disconnecting the device from the power
source and reconnecting it again.
3
4
IR Detector
IR Detector can sense IR light which can be forwarded to
4
the receiver side or use for controlling functions.
5
HDMI Input
Input for a digital video source. Applied cable shall not be
more, than 30 m (at 1080p) and 15 m (at 4K).
5
6
DisplayPort Input
Input for digital video source (only on TX130 models). Applied
cable shall not be more, than 30 m (at 2.7 Gbps data speed).
6
7
Audio Input
3.5 mm Jack connector for unbalanced analog audio signal.
8
VGA Input
Input for an analog video source. Using a VGA cable where
all the pins are wired (DDC channel) is highly recommended.
9
Ethernet
Locking RJ45 connector for Ethernet communication.
q
Video Select
Manual switching between the video inputs.
w
Audio Select
Manual switching between the audio inputs.
Rear View Legend
1
TPS Output Port
Locking RJ45 connector. Connect a twisted pair cable
between the transmitter and the receiver. Remote powering
also happens through this connector.
2
RS-232 Port
3-pole Phoenix connector for RS-232 serial port.
2
3
DC Input
Power the device remotely by a PoE-compatible power
injector (TPS-PI-1P1). If the device has to be powered by
3
a local adaptor (PSU-48VP1), connect the output to the
2-pole Phoenix
The product is compatible with any HDBaseT
third party devices.
HDBaseT
and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
TM
CATx
Connect the transmitter and a compatible receiver or the matrix input board by
a CATx cable via the TPS connectors.
VGA
Connect the transmitter and the sources using the inputs and VGA / DVI-I /
HDMI
HDMI / DisplayPort cables.
DP
DP
Audio
Optionally connect an asymmetric audio device with unbalanced audio signal
(e.g. a VGA laptop) to the 2.5" TRS (jack) audio input port.
LAN
Optionally connect the transmitter to a LAN network in order to control the
device.
Compatible
RS-232
Optionally connect a controller/controlled device (e.g. relay box) to the
receiver or
RS-232 port.
input board
Power
See powering options in the Power Supply section.
LAN
Ethernet
Front Panel LEDs
Video sources
OFF: video source is not selected.
BLINKING: video source is selected but not active.
ON: video source is selected and active.
Audio sources
OFF: audio source is not selected.
BLINKING: audio source is selected but not active.
ON (with short pause): audio source is selected and the
port is active but not embedded to the output video stream.
ON: audio source is selected, the port is active and the audio is embedded in the video.
When Autoselect is enabled and video signal is not present at all, video LEDs blink.
Autoselect LED
OFF: autoselect is disabled.
BLINKING: autoselect is enabled; searching for signal
(video LEDs also blink).
ON: autoselect is enabled; active video signal is found.
A port is active if there is a valid signal on it.
TPS LINK
OFF: no TPS link between transmitter and receiver.
BLINKING (slow): low power mode is active.
BLINKING (fast): Ethernet fallback mode is active.
ON: TPS link is established, HDBaseT or Long Reach mode is active.
Power Supply Options
The transmitter can be powered by any of the following ways:
48V DC
Power
®
connector on the rear of the wall plate.
adaptor
1. Local adaptor
TPS-TX/RX90 and TPS-TX/RX95 are not PoE-compatible, thus not able to remote power
the WP-UMX-TPS-TX100 series and vica versa. WP-UMX-TPS-TX100 series contains PoE-
compatible remote power function, RX95 and TX95 extenders can be remote powered only
by each other.
TM
Warranty void if damage occurs due to the usage of a different power source.
The document is valid with the following firmware version:
The User's manual of this appliance is available on www.lightware.com.
See the
VGA
AUDIO
DP
DP
HDMI
HDMI
Autoselect
TPS LINK
VIDEO
AUDIO
VGA
AUDIO
DP
DP
HDMI
HDMI
Autoselect
TPS LINK
VIDEO
AUDIO
VGA
AUDIO
DP
DP
HDMI
HDMI
Autoselect
TPS LINK
VIDEO
AUDIO
VGA
AUDIO
DP
DP
HDMI
HDMI
Autoselect
TPS LINK
VIDEO
AUDIO
Power
send
CATx
TPS-PI-1P1
(TPS)
External
CATx
power supply
(TPS)
Power send
48V DC
Power
adaptor
2. Remote power injector
3. Matrix board
Further Information
1.2.0
Downloads
section on the website of the product.
Contact Us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 2.2
19200079
