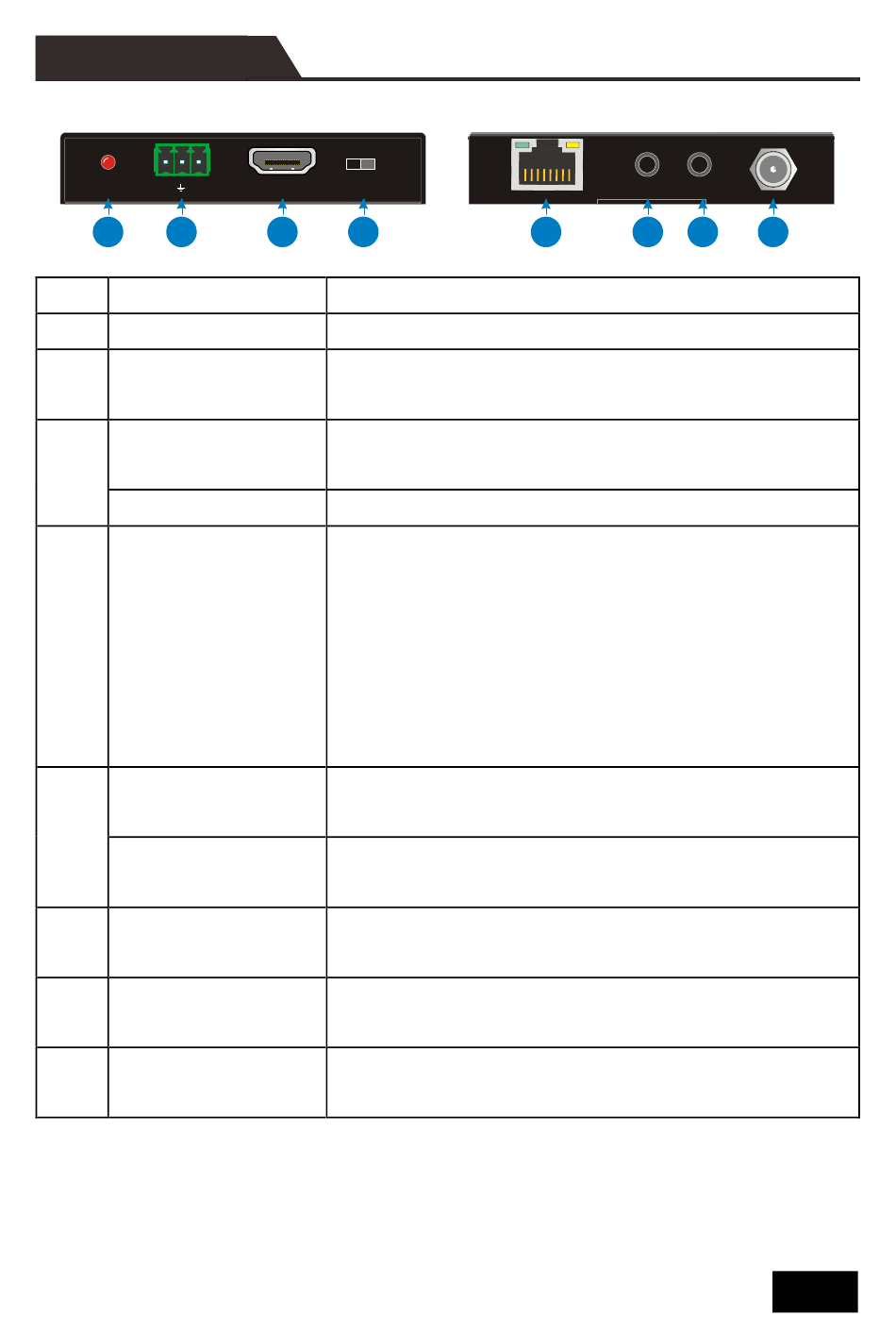

PANEL DESCRIPTION

Front
Tx Rx
2
1
No. Name
① Power LED
② RS232
HDMI IN (TX)
③
HDMI OUT (RX)
④ CTRL/UPDATE
HDBT OUT (TX)
⑤
HDBT IN (RX)
⑥ IR IN
⑦ IR OUT
⑧ DC 12V
3
4
Description
Illuminates red when power is applied.
Euroblock/Phoenix connector for connecting an
RS232 data device.
HDMI port for connecting the video source device
(e.g. Blu-ray DVD)
HDMI port for connecting the video display.
Switch for determining the behavior of the RS232
connection.
When in the CTRL position, it serves as an RS232
serial extender.
When in the UPDATE position, it allows you to
update the Valens IC program by connecting to a
PC and running the batch file.
RJ45 jack for connecting the Cat5e/6 cable to the
Receiver.
RJ45 jack for connecting the Cat5e/6 cable to the
Transmitter.
3.5mm jack for connecting an IR Receiver (not
included).
3.5mm jack for connecting an IR Emitter (not
included).
DC barrel connector for connecting the included
AC power adaptor.
Rear
HDCP LINK
5 6 8
7
