PANEL DESCRIPTION

Transmitter Panel Description
CATx OUT
1
EDID BYPASS
EDID COPY Tx/3s
7

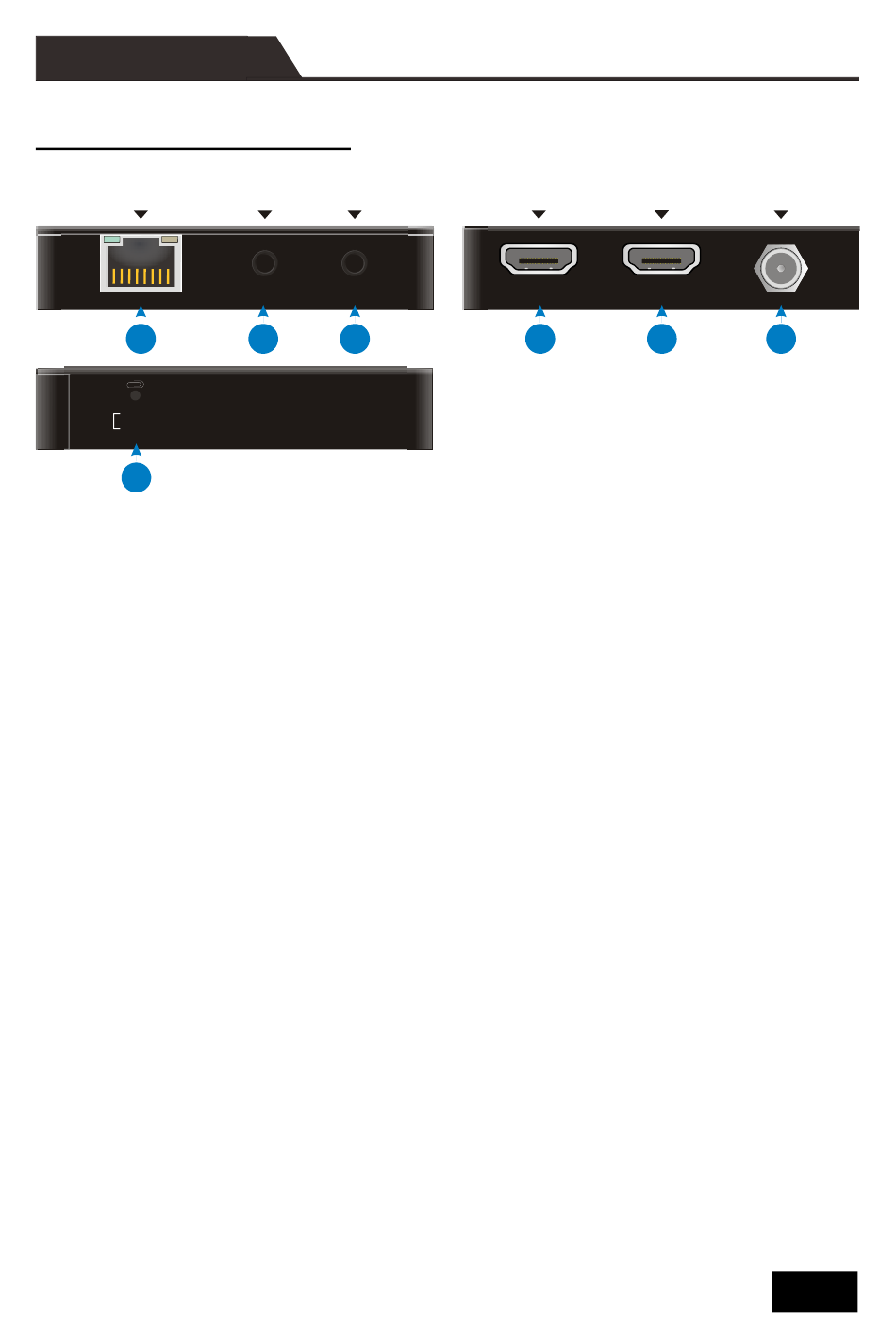

① CATx OUT: RJ45 port to connect the CATx IN port of receiver by CATx cable. It
supports 12V PoC to power the receiver. The orange LED illuminates when
there is a valid HDMI signal input. The green LED illuminates when power is
applied.
② IR IN: 3.5mm mini jack to connect IR receiver for IR pass-through.
③ IR OUT: 3.5mm mini jack to connect IR emitter for IR pass-through.
④ DISPLAY: Type-A female HDMI port to connect HDMI display device.
⑤ SOURCE: Type-A female HDMI port to connect HDMI source device.
⑥ DC 12V: DC connector for the power adapter connection.
⑦ EDID Management: Press the button with paper clip or other sharp tool to set
EDID bypass mode, or press and hold it for 3 seconds to copy the EDID from
the display device.
Note: Press and hold the button while powering off, and then release it after 5
seconds of power on to restore the default setting: The source device learns
EDID from the TV which has the lowest resolution.
IR IN IR OUT
2
3
DISPLAY SOURCE
4 5
DC 12V
6
