APP pump instruction APP 11-13 and APP 16-22
If alternative mounting is desired, please contact
the Danfoss RO Solutions Sales Organisation.
Choose proper tolerances to ensure an easy
mounting of the elastic coupling without use of
tools.
Please take care to observe the recommended
length tolerances of the chosen coupling, as an
axial force on the pump will damage the pump.

3.2 Direction of rotation

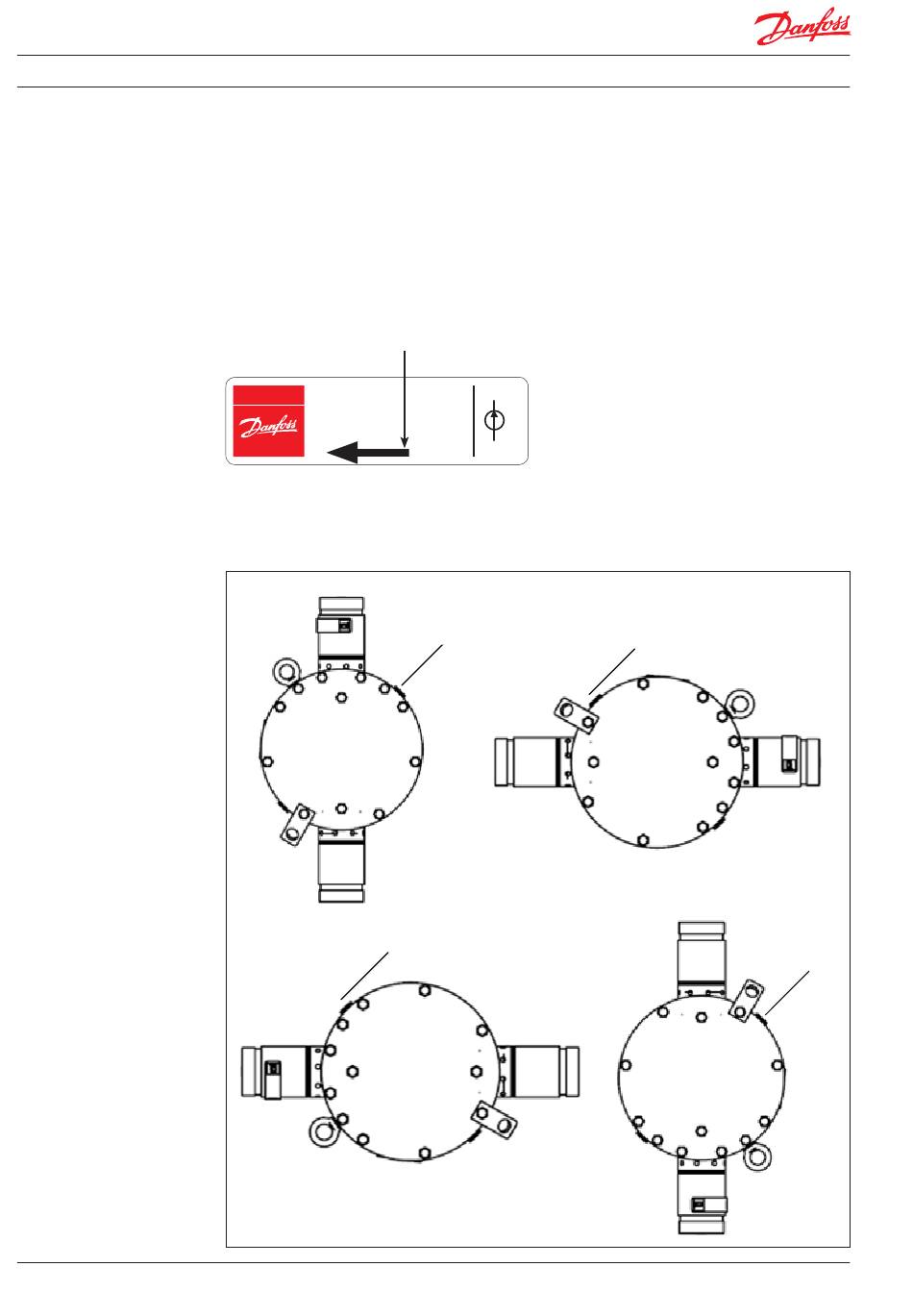

Is indicated by means of an arrow on the pump
label.
Pump
©
NESSIE
Type APP
Serial no.
Code no.
MADE IN DENMARK

3.3 Orientation

The pump can be mounted/orientated in any
horizontal direction with the inlet and the outlet
pointing upwards, downwards or to either side.
C
C
