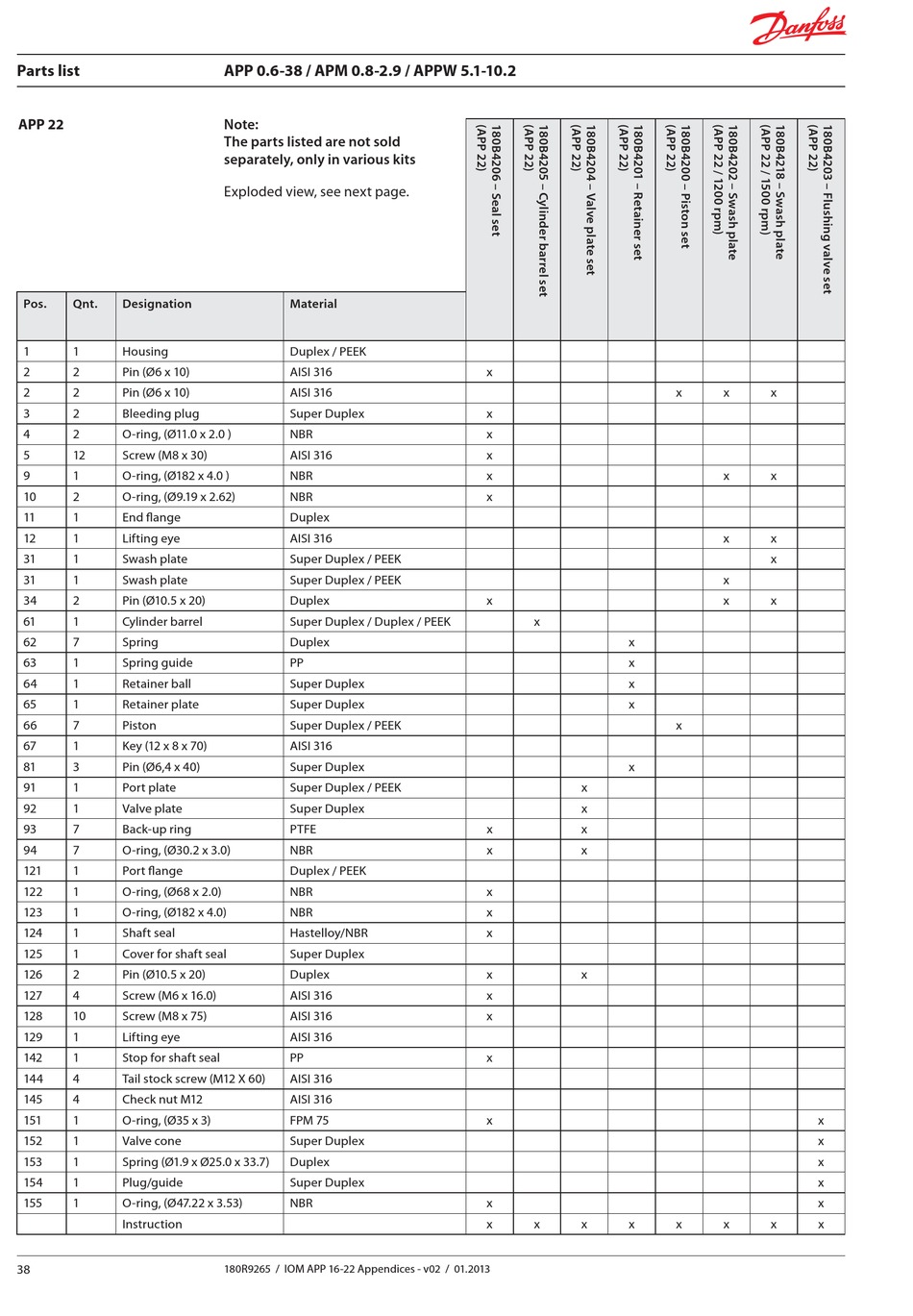

Danfoss APP series User Manual page 56

Parts list
17. APP 22 APP 22
Pos. Qnt. Designation
1 1 Housing
2 2 Pin (Ø6 x 10)
2 2 Pin (Ø6 x 10)
3 2 Bleeding plug
4 2 O-ring, (Ø11.0 x 2.0 )
5 12 Screw (M8 x 30)
9 1 O-ring, (Ø182 x 4.0 )
10 2 O-ring, (Ø9.19 x 2.62)
11 1 End flange
12 1 Lifting eye
31 1 Swash plate
31 1 Swash plate
34 2 Pin (Ø10.5 x 20)
61 1 Cylinder barrel
62 7 Spring
63 1 Spring guide
64 1 Retainer ball
65 1 Retainer plate
66 7 Piston
67 1 Key (12 x 8 x 70)
81 3 Pin (Ø6,4 x 40)
91 1 Port plate
92 1 Valve plate
93 7 Back-up ring
94 7 O-ring, (Ø30.2 x 3.0)
121 1 Port flange
122 1 O-ring, (Ø68 x 2.0)
123 1 O-ring, (Ø182 x 4.0)
124 1 Shaft seal
125 1 Cover for shaft seal
126 2 Pin (Ø10.5 x 20)
127 4 Screw (M6 x 16.0)
128 10 Screw (M8 x 75)
129 1 Lifting eye
142 1 Stop for shaft seal
144 4 Tail stock screw (M12 X 60)
145 4 Check nut M12
151 1 O-ring, (Ø35 x 3)
152 1 Valve cone
153 1 Spring (Ø1.9 x Ø25.0 x 33.7)
154 1 Plug/guide
155 1 O-ring, (Ø47.22 x 3.53)
