Flow at different rpm

6
APP 16-22
Available as ATEX certified. Category 2,
zone 1 and category 3, zone 2.
Available with material certificates on
wetted parts
For more details on the variants, please contact
the Danfoss RO Solutions Sales Organisation

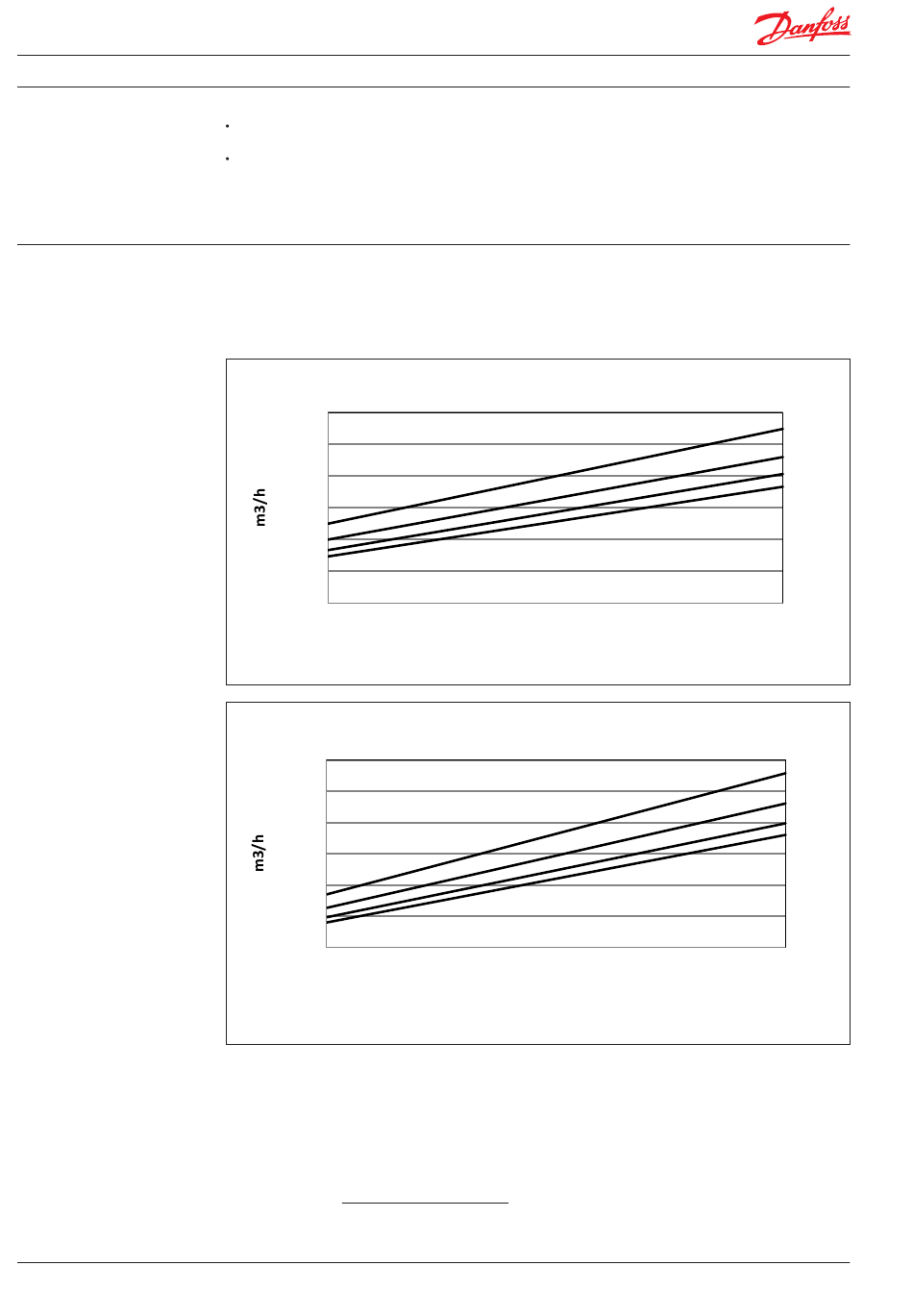

When using the diagrams shown below, it is easy
to select the pump which fits the application
best if the flow required and the rotation speed
(rpm) of the pump are known.
23,00
20,00
17,00
14,00
11,00
8,00
5,00
700
23,00
20,00
17,00
14,00
11,00
8,00
5,00
700 800
Furthermore, these diagrams shows that the flow
can be changed by changing the rotation speed
of the pump. The flow/rpm ratio is constant, and
the "required " flow can be obtained by changing
the rotation speed to a corresponding value.
Thus, the required rpm can be determined as:
Required flow × Rated rpm
Required rpm =
Rated flow
180R9265 / IOM APP 16-22 Appendices - v02 / 01.2013
1200 rpm version
800 900
rpm
1500 rpm version
900 1000 1100
rpm
1000 1100
1200 1300 1400
APP 22
APP 19
APP 17
APP 16
1200
APP 22
APP 19
APP 17
APP 16
1500
