IR/serial output ports (see figure 7, on page 13) — An IPL Pro Series controller
G
with these ports can use infrared signals or unidirectional RS-232 serial signals to
control various devices (up to four per port for IR) via these ports. Set output signal type
(IR or serial) during configuration. The figure below shows wiring examples.
Rear Panel
IR/SERIAL
1 2 7 8 7
S G S G S G S G S
3/16"
(5 mm)
To a Projector,
max.
Panel Display,
or the Wired IR or RS-232
Output
IR Remote or
Ground
RS-232 Port of
a Source Device

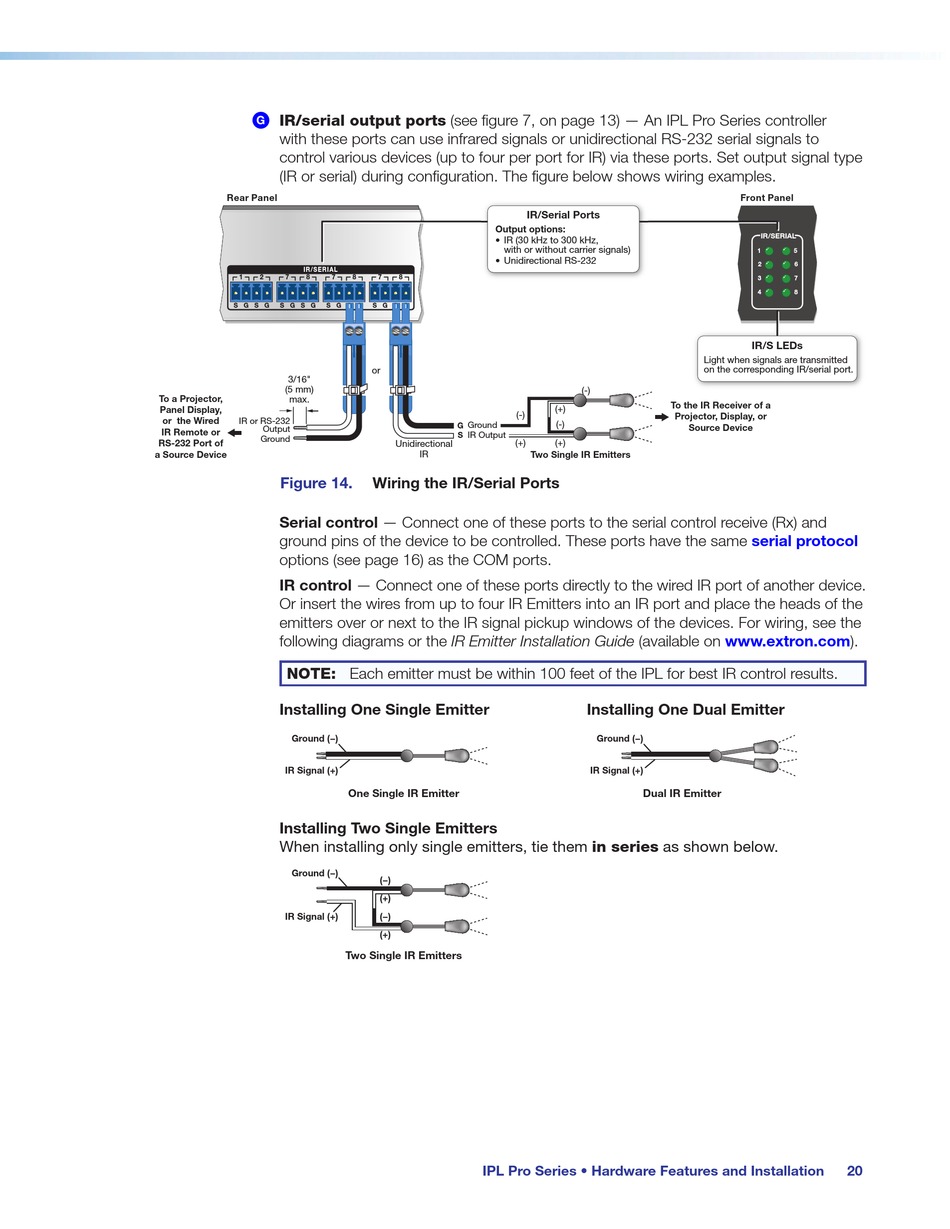

Figure 14.
Serial control — Connect one of these ports to the serial control receive (Rx) and
ground pins of the device to be controlled. These ports have the same
options (see page 16) as the COM ports.
IR control — Connect one of these ports directly to the wired IR port of another device.
Or insert the wires from up to four IR Emitters into an IR port and place the heads of the
emitters over or next to the IR signal pickup windows of the devices. For wiring, see the
following diagrams or the IR Emitter Installation Guide (available on www.extron.com).
NOTE: Each emitter must be within 100 feet of the IPL for best IR control results.
Installing One Single Emitter
Ground (−)
IR Signal (+)
Installing Two Single Emitters
When installing only single emitters, tie them in series as shown below.
Ground (−)
IR Signal (+)
Output options:
• IR (30 kHz to 300 kHz,
with or without carrier signals)
• Unidirectional RS-232
8 7 8
G S G S G S G
or
G Ground
S IR Output
(+)
Unidirectional
IR
Wiring the IR/Serial Ports
One Single IR Emitter
(−)
(+)
(−)
(+)
Two Single IR Emitters
IPL Pro Series • Hardware Features and Installation
IR/Serial Ports
(-)
To the IR Receiver of a
(+)
(-)
Projector, Display, or
(-)
Source Device
(+)
Two Single IR Emitters
Installing One Dual Emitter
Ground (−)
IR Signal (+)
Dual IR Emitter
Front Panel
IR/SERIAL
1 5
2 6
3 7
4 8
IR/S LEDs
Light when signals are transmitted
on the corresponding IR/serial port.
