Bidirectional Control and Communication Connections and Features

B
Rear Panels
COM 1
Tx Rx G RTSCTS
COM 4
Tx Rx G RTSCTS
To 5-pole
COM port
Heat Shrink
Over Shield Wires
NOTE: If you use cable that has a drain wire, tie the drain wire to ground at both ends.
5-pole COM ports, RS-232/RS-422*/RS-485* (see
— Use COM ports for serial control of a display
or other device and to receive status messages
from the connected devices. These ports can
send commands from a driver file. RS-232 is
the default mode of operation.
IPL Pro Series serial protocol:
300 to 115200 baud (9600 baud = default)
•
8 (default) or 7 data bits
•
1 (default) or 2 stop bits
•
No parity (default), even, or odd parity
•
Flow control support (default = none):
•
hardware and software (XON, XOFF)
*Supported serial formats vary depending on
the model and the COM port, as shown at
right.
Use the following diagram as a wiring guide to
cable the IPL to other devices.
Serial (COM) Ports
5-pole COM
Select protocol via software.
(RS-232, RS-422*, RS-485*)
COM port default protocol:
*See the Serial Options
• 9600 baud
table for which port
• 8 data bits • 1 stop bit
supports which standards.
• no parity
NOTE: The 5-pole COM ports support both
hardware and software ow control.
CTS Clear to send
RTS Request to send
G Ground
Rx Receive
Tx Transmit
Heat Shrink

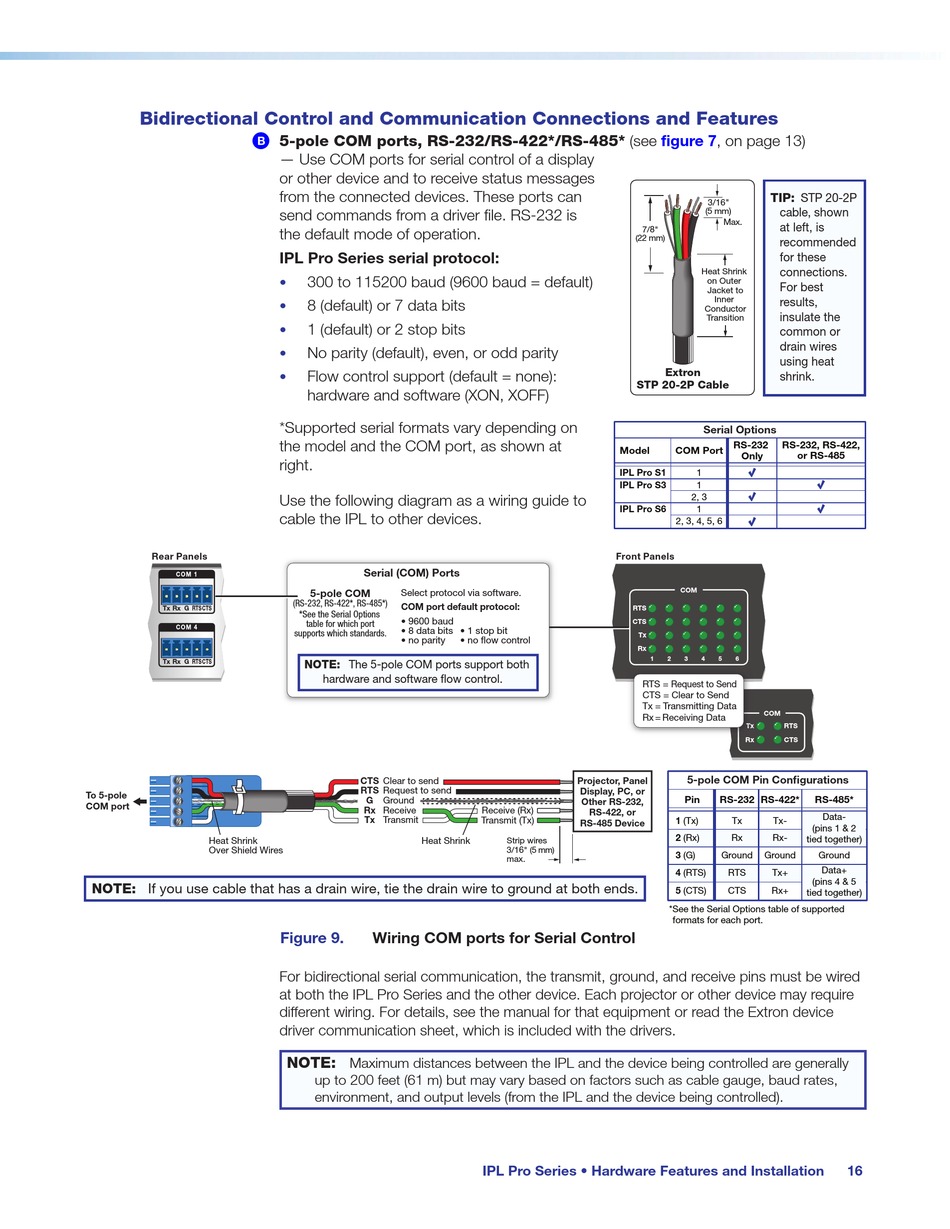

Figure 9. Wiring COM ports for Serial Control
For bidirectional serial communication, the transmit, ground, and receive pins must be wired
at both the IPL Pro Series and the other device. Each projector or other device may require
different wiring. For details, see the manual for that equipment or read the Extron device
driver communication sheet, which is included with the drivers.
NOTE:
Maximum distances between the IPL and the device being controlled are generally
up to 200 feet (61 m) but may vary based on factors such as cable gauge, baud rates,
environment, and output levels (from the IPL and the device being controlled).
(22 mm)
STP 20-2P Cable
Model
IPL Pro S1
IPL Pro S3
IPL Pro S6
Front Panels
RTS
CTS
Tx
• no ow control
Rx
Projector, Panel
Display, PC, or
Other RS-232,
Receive (Rx)
RS-422, or
Transmit (Tx)
RS-485 Device
Strip wires
3/16" (5 mm)
max.
IPL Pro Series • Hardware Features and Installation
figure 7, on page 13)
TIP: STP 20-2P
3/16"
cable, shown
(5 mm)
Max.
at left, is
7/8"
recommended
for these
connections.
Heat Shrink
on Outer
For best
Jacket to
Inner results,
Conductor
insulate the
Transition
common or
drain wires
using heat
Extron
shrink.
Serial Options
RS-232, RS-422,
RS-232
COM Port
or RS-485
Only
1
1
2, 3
1
2, 3, 4, 5, 6
COM
1 2 3 4 5 6
RTS = Request to Send
CTS = Clear to Send
Tx = Transmitting Data
COM
Rx = Receiving Data
Tx T T T T x RTS
Rx R CTS
5-pole COM Pin Configurations
Pin RS-232 RS-422* RS-485*
1 (Tx) Tx Tx-
(pins 1 & 2
2 (Rx) Rx Rx-
tied together)
3 (G)
Ground Ground Ground
Data+
4 (RTS) RTS Tx+
(pins 4 & 5
5 (CTS) CTS Rx+
tied together)
*See the Serial Options table of supported
formats for each port.
Data-
