1.4. Technical specifications

Each detector is constructed as follows:
•
A wall-mounted support secured by three screws and including cable gland (M20)
(optional). There are 2 standard entries and an optional one.
•
A stainless steel (316L) explosion-proof housing containing:
•
A set of tropicalized electronic cards
•
A display and infrared communication electronic card allowing the
communication with the remote control (TLU600)
•
The sensor cartridge contains the flame detection circuitry. So, it is possible to
change the cartridge easily. The multispectrum IR detector is also available in a high
sensitivity version.
•
An IR communication head is located below the detector housing. It is used for
communication with the maintenance hand-held terminal (TLU).
•
A metallic support cable (optional) connects the wall mounting support and the
housing, making the maintenance easier.
MultiFlame DF-TV7

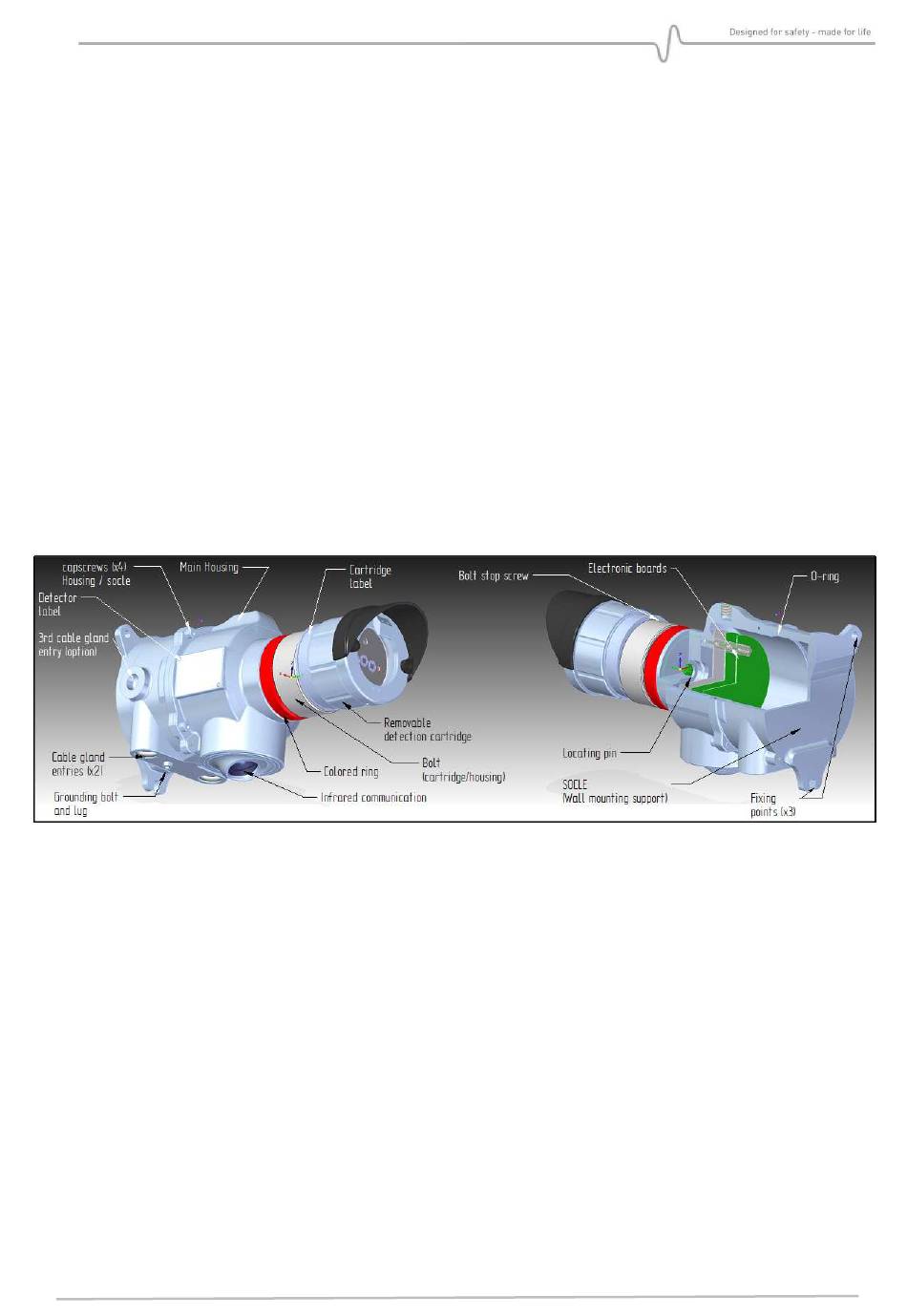

Figure 1 : Detector presentation
(Overall dimension drawings, see
Page 8 / 56
Figure 2
)
