4.2. Mounting

Use the two 7 mm diameter holes and the half slotted hole to secure the support.
It is highly recommended to install the support with cable-gland downward in order to avoid
water infiltrations. In case of horizontal position, it is advised to make one or two loops with
the cable at the entry of the cable-gland.
4.2.1. Multi-position support
4.2.1.1.
In this configuration, the support is
made by two brackets connected each
other by two CHC M6 screws.
The main bracket is fixed on the wall,
allowing the detector
horizontal position, perpendicular to
the wall. The vertical angle is adjusted
using one of the 4 top holes of bracket.
MultiFlame DF-TV7

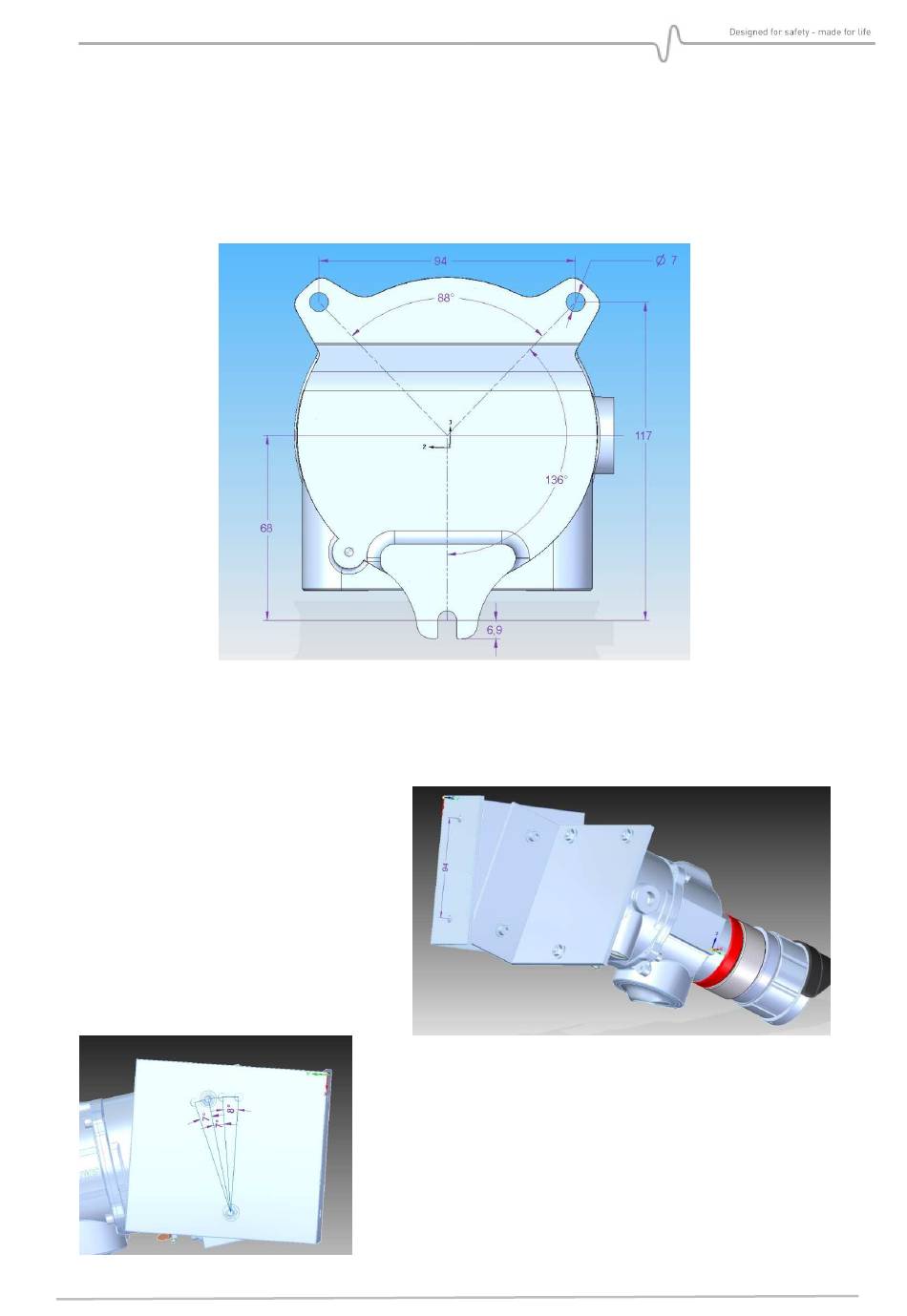

Figure 3 : Drilling dimensions for support fixing.
Multi-position wall mount bracket AS054
to be in
Start by fixing the base support. The adjustment and
termination of cables are performed into the base only.
This limits the exposure of the electronic components in
the housing to a minimum.
