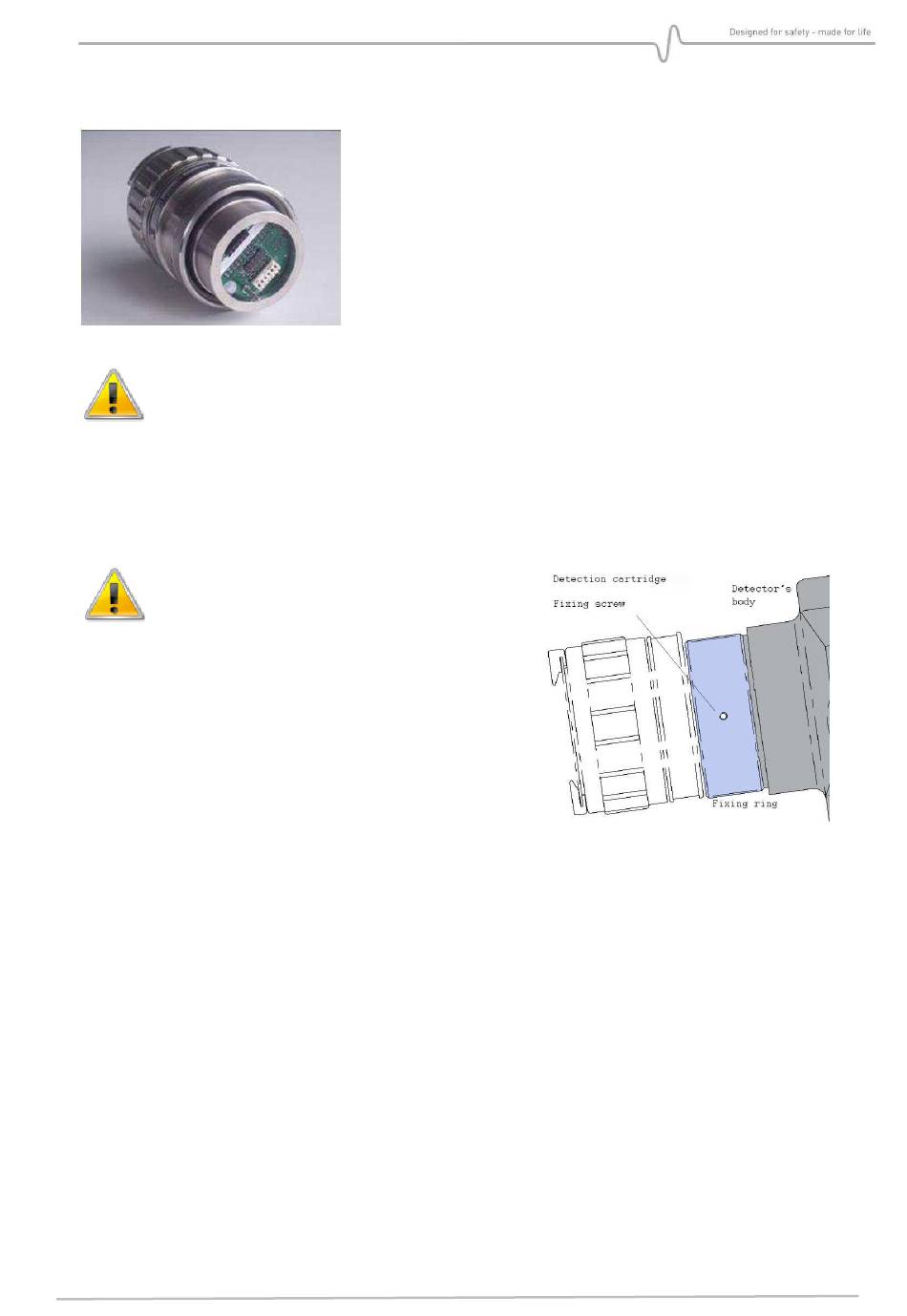

4.4. Detection cartridge

Be careful when plugging or removing the detection cartridge.
•
Align the centring pin of the cartridge with the corresponding hole in the
housing.
•
Insert the cartridge in the bell, holding the two parts as parallel as
possible.
•
Introduce the pin in the hole without damaging the cartridge bottom
connector when tightening the two parts.
These interventions imperatively requires
power to be off.
The Cartridge is fixed with a threaded fixing ring.
Loosen the fixing screw in order to unscrew the
cartridge.
MultiFlame DF-TV7
The cartridge is separated from the detector to enable its
replacement. Its dismantling is extremely easy and does
not need to touch the rest of the unit.
