6.6.1.

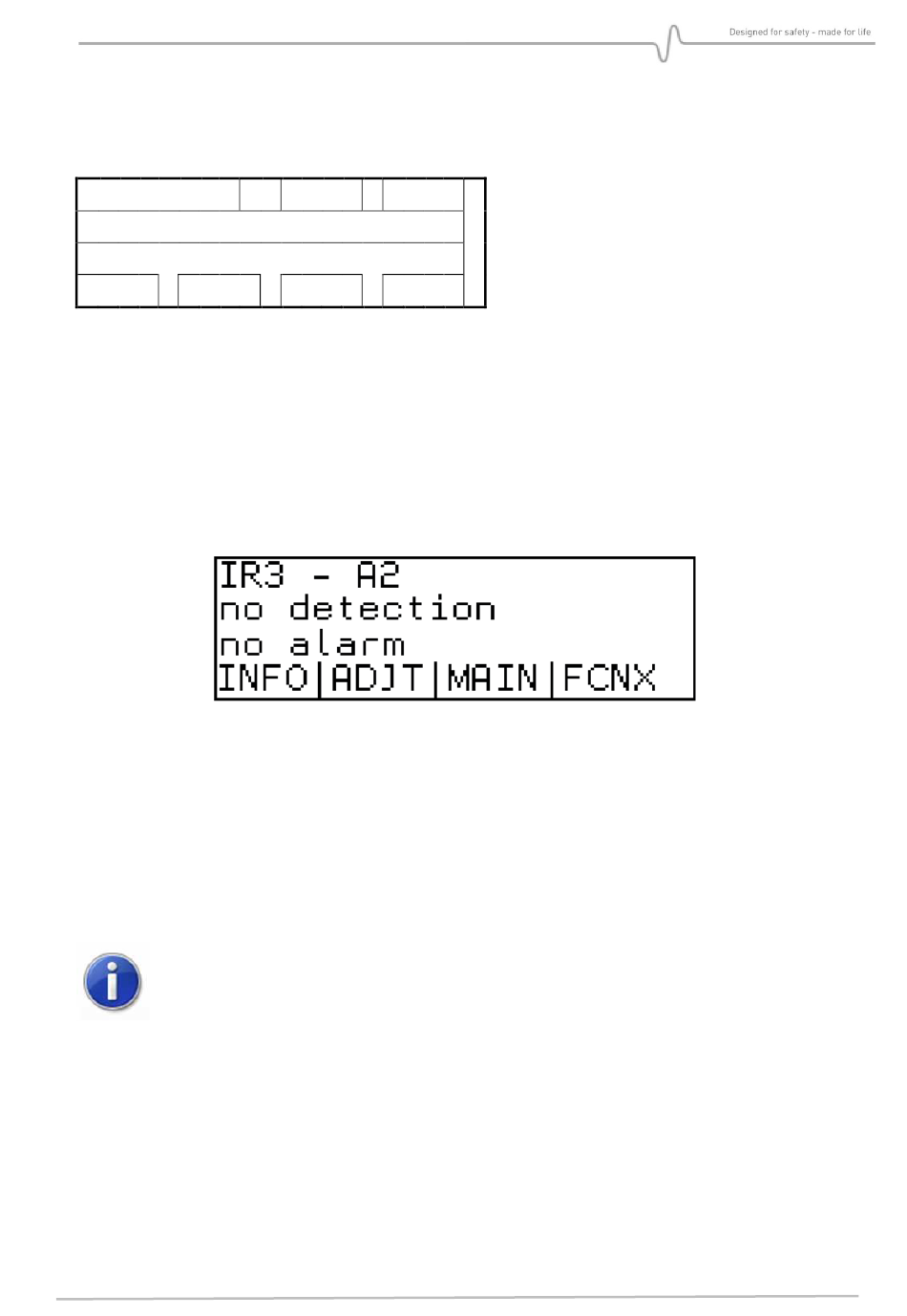

Main screen
The main screen is composed into several data fields.
C 1
C 4
C 5
C 6
|
C 7
C1: Detector name field
C2: Field blank if normal operation; INH- if inhibited
C3: Field blank if normal operation; FLT- if at least one fault has occurred
C4: State of detection: no detection, cartridge fault
C5: State of alarm: alarm, no alarm
C6, C7, C8 and C9: Name of keys F1, F2, F3 and F4
C10: Wireless communication tool pictograms
Main screen displays identity and state of the detector.
6.6.2.
General operation
The user can navigate through the menu with the F1 to F4 keys, whose functions change
depending on the fields displayed above each key. Standard functions:
>>>>
Scroll function / next screen.
ESC
Exit the current menu and return to the previous one.
CHG
Changing displayed value.
VAL
The changed value must be confirmed by pressing [VAL] key, otherwise the old
value will be kept when leaving the menu.
MultiFlame DF-TV7
C 2
C 3
|
C 8
|
C 9
Validation and Check-in of the changed value.
Page 34 / 56
C
1
0
NOSP16358-03 [04/2016]
