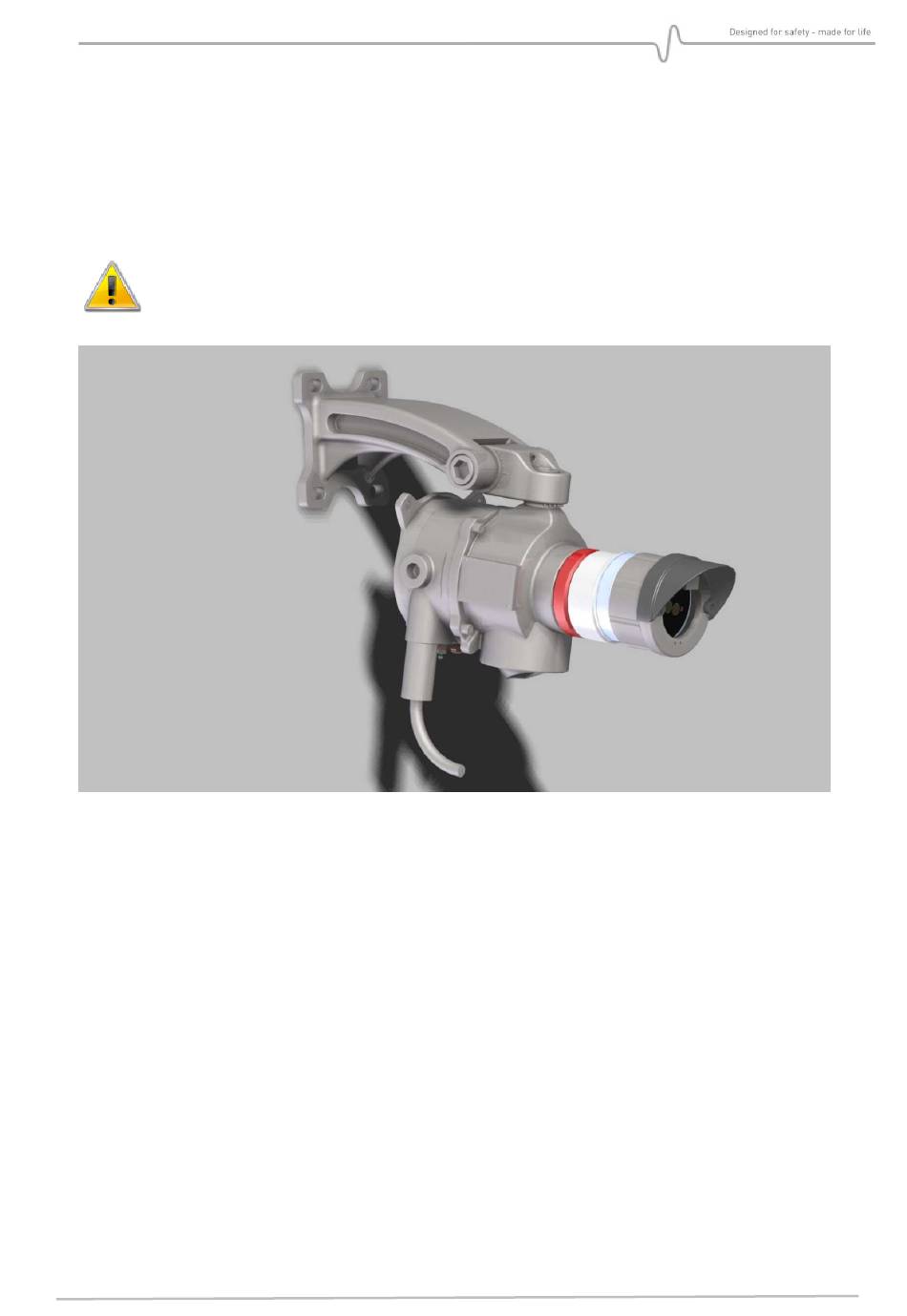

4.2.1.2. Ball pivot bracket – AS048
The detector is supported by a completely adjustable support. The assembly of the bracket
with the device is done by a CHC M14 x 24 screw. These one is used to set the lateral
orientation.
4 fixations (M8) fix the support to the wall or on a tube (2 inch or 2.5 inch). Tighten two CHC
M14 screws allows the vertical orientation.
The whole weigh approximately 7 Kg.
4.2.2. Detector assembly
Check the presence of the O-ring on explosion proof seal, make sure that it is correctly
greased and has no visible damage.
Plug connectors to the base, as described in paragraph "Electric connection".
Fit the main housing on the base, placing the cable excess in the base. Put in place and
tighten the four M5 screws with their grower rings.
It is possible to set up a suspension cable (not supplied) between the base and the housing
(at the lower part) with the two threaded holes (M4 x 6).
