Simtronics MultiFlame DF-TV7-T Operating Manual page 22

Point JP12 & JP13
1 T2
2 C2
3 T1
4 C1
Point
1 V-
2 V+
3 V+
4 V-
5 L+
6 L-

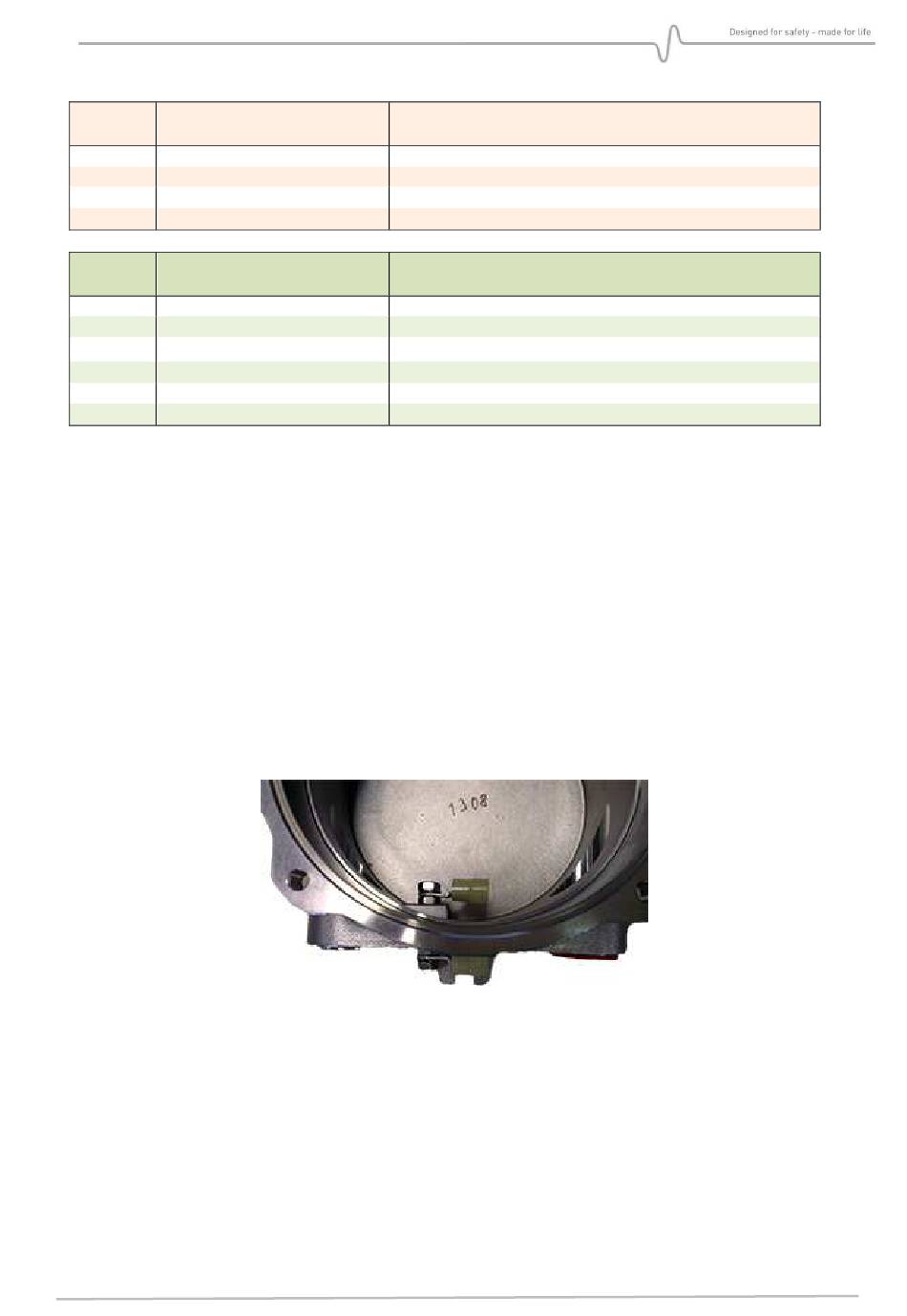

4.3.2. Connection of the electrical ground braid
Use a shield connection clamp (not supplied) to connect the shielding of the cable to the
electric ground of the housing (see below).
4.3.3. Grounding
A M4 screw passes through the body of the enclosure, enabling the electronic ground of the
housing to be connected to the local ground.
It is recommended to use a yellow / green wire with a ring lug (minimum diameter 1.5 mm).
The armour of the power cable is normally connected to the ground of the detector, but it
may depend on site practices.
MultiFlame DF-TV7
Figure 4 : Terminal blocks
Relay 2
Relay 2
Relay 1
Relay 1
JP11
0 V
+24VDC power supply
+24VDC power supply loop (connected to point 2)
0 V, Connected to point 1
20mA Current loop: entry
20mA Current loop: output
