4.3.8. Syntel connection
In this network version, an electronic board is inserted in the detector body and is used for
electric connection.
Connecting the ground terminal should be performed thanks to 3-wire shielded cables.
The connection of power supply wires (4 on side A and 4 on side B).
•
Two red wires on V +: +24 V
•
Two white wires on V-: 0 V
Connexion of the media wires (2 on side A and 2 on side B)
•
A red wire on one of the N
•
A white wire on the other N (no specific edge)

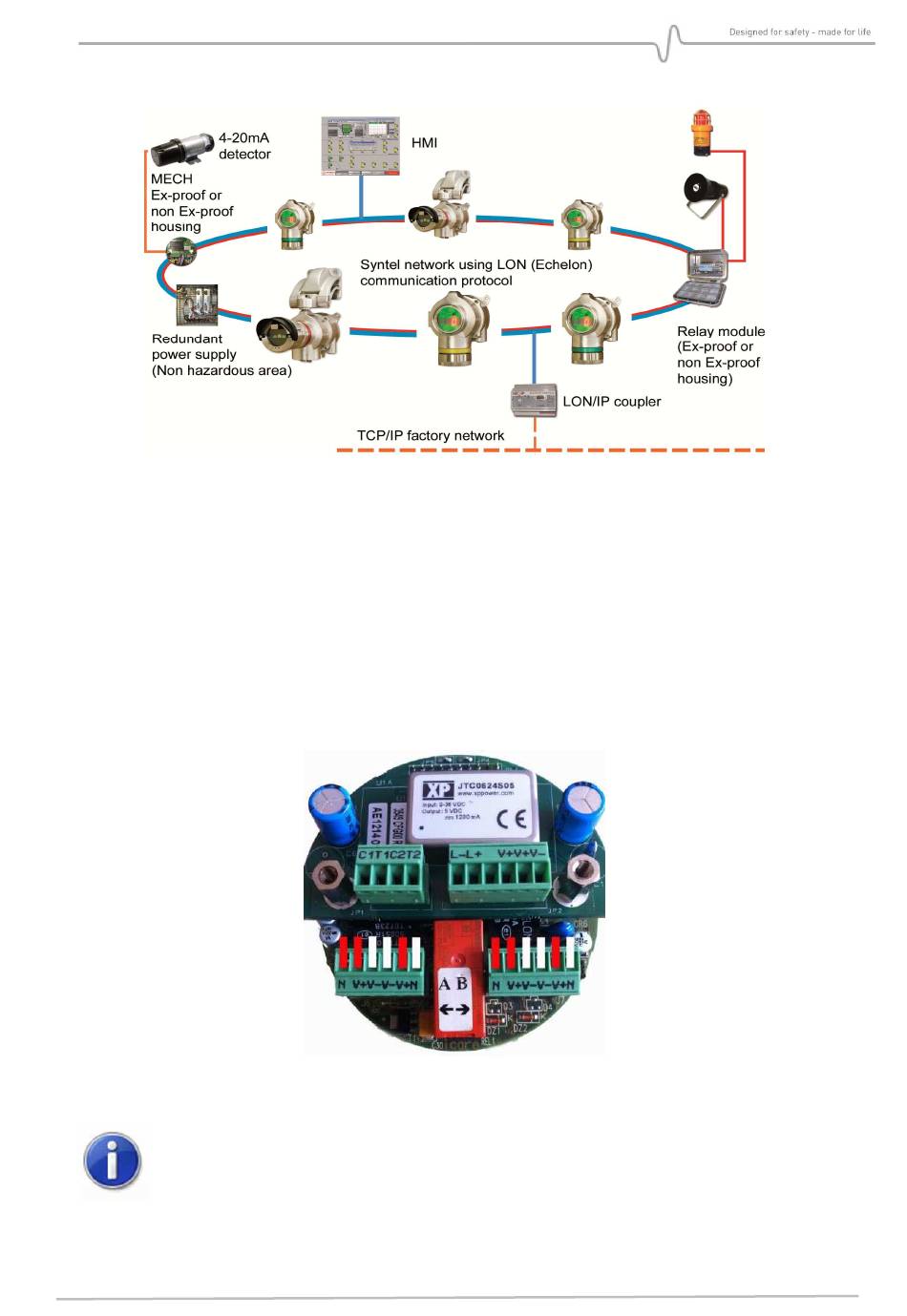

Figure 5 : Connecting drawing of the network versions
For more detail, thanks to refer to the operating manual NOSP 15251
