Simtronics MultiFlame DF-TV7-T Operating Manual page 28

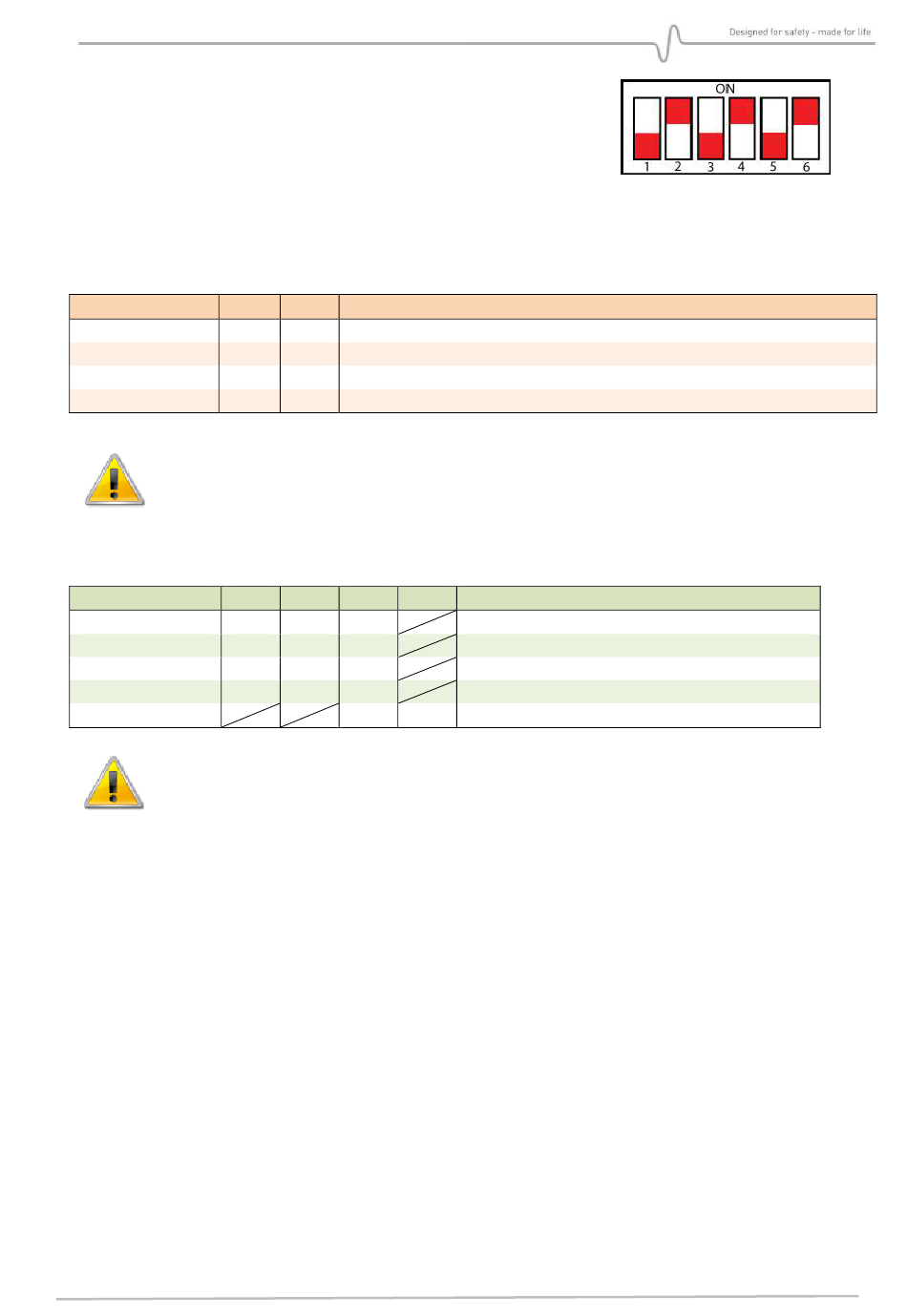

Default detection mode of the XVA0 (UVIR²) may be changed
using DIP switches at the back of the cartridge
Switches S1 and S2 are used for the UV/IR detection mode as shown in the table below. The
configuration is frozen, and cannot be changed with the TLU. Switches S1 and S2 are not
used for the multispectrum sensor cartridges (3IR).
Detector mode S1
UV + 2xIR ON
UV + 2xIR OFF
UV only ON
IR only OFF
UV only and IR only configurations are not compliant with CE DPC certificate.
Moreover, those configurations are more susceptible to trigger false alarms.
Switches 3 and 4 sets the sensitivity. However, it is overwritten by the software and can be
changed with the TLU600.
Detector mode S3
100% sensitivity ON
100% sensitivity OFF
75% sensitivity OFF
50% sensitivity ON
5 sec delay
S5 always on ON
MultiFlame DF-TV7
S2 Comments
ON Factory setting
OFF
OFF The detector is now a single UV flame detector.
ON The detector is now a 2xIR flame detector
S4 S5 S6
ON ON
OFF ON
ON ON
OFF ON
ON ON
Page 28 / 56
Comments
Default
OFF = 2 sec delay
NOSP16358-03 [04/2016]
