Cascade Power Supply
I N S TALL AT ION
The PSU slides in the 5th slot from the left of the CASCADE subrack (see Figure 6). The PSU is
fastened with four Phillips screws in the front.
P O WER C ON N E C T I ON S
The PSU requires a DC power source providing a voltage between the operational ranges specified in
the product specifications. The connector MUST BE CONNECTED WITH THE RIGHT POLARITY.
A ground connection is required on the back of the PSU using an M5 x 12 screw already installed
(see Figure 7).
Cascade System Modules Operation Guide
OG-CASC-SYS-MOD-1-0-0P

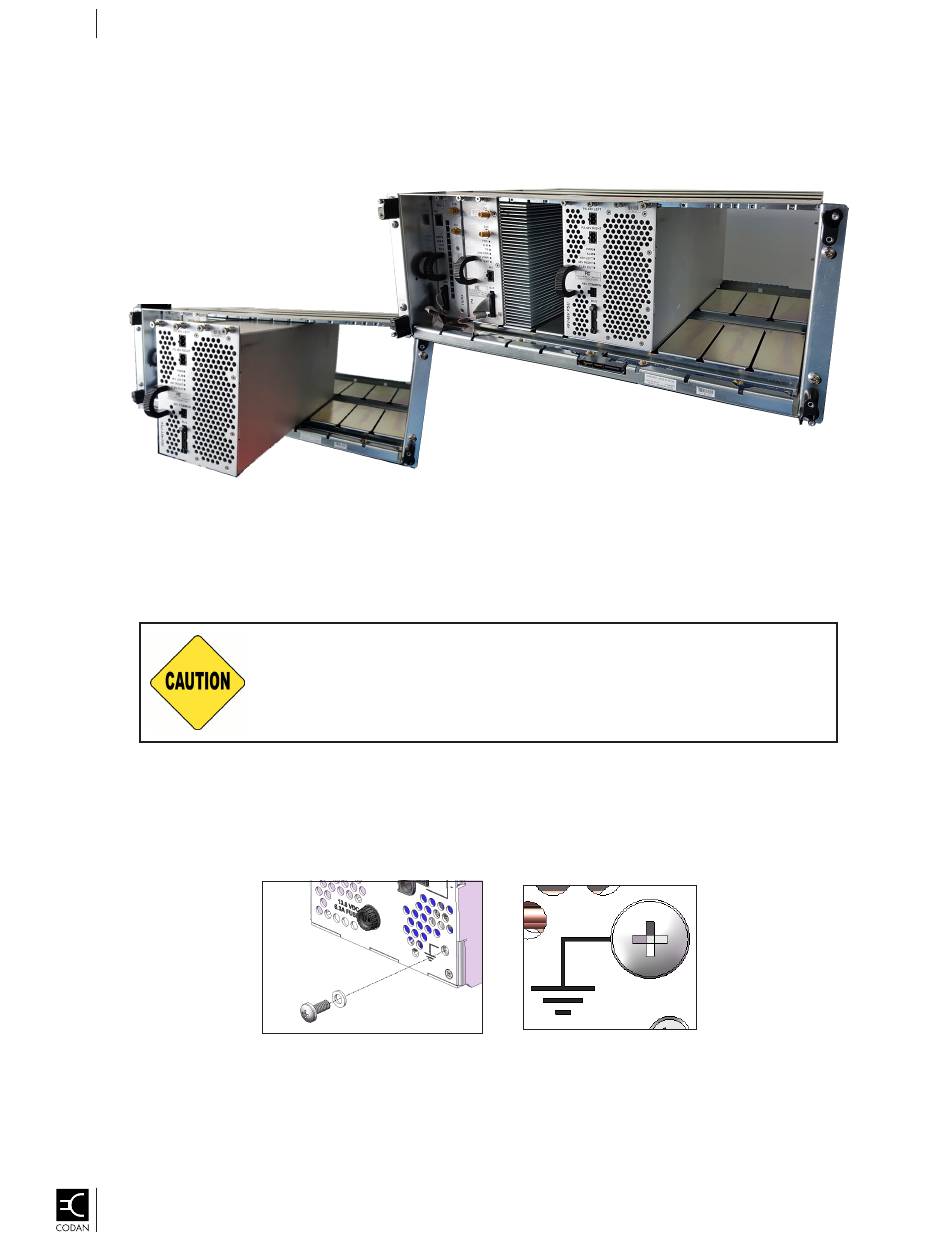

FIGURE 6: PSU Installed in Subrack
The power supply is NOT protected against reverse polarity and may get
damaged, overheat and/or cause fire if not connected properly. The metal
enclosure is labeled showing the positive and the negative polarity.
FIGURE 7: Ground Connection – Screw Installed
