Cascade Theory Of Operation - Codan Cascade Operation Manual

The CASCADE product is capable of acting as an RF repeater or base station with up to
two "Simultaneous Receive Channels" and up to two 125W "Simultaneous Transmit
Channels".
The CASCADE product is comprised of the following:
• A Subrack which houses all of the CASCADE Components (see Figure 4)
• A Power Supply, either AC to DC or DC to DC which supplies electrical power to all the
modules
• Up to two RF Transceiver modules
• Up to two RF Power Amplifier modules
• A Front Panel which contains cooling fans and control circuitry
• A Front Interface Board which handles all the module to module communication

CASCADE THEORY OF OPERATION

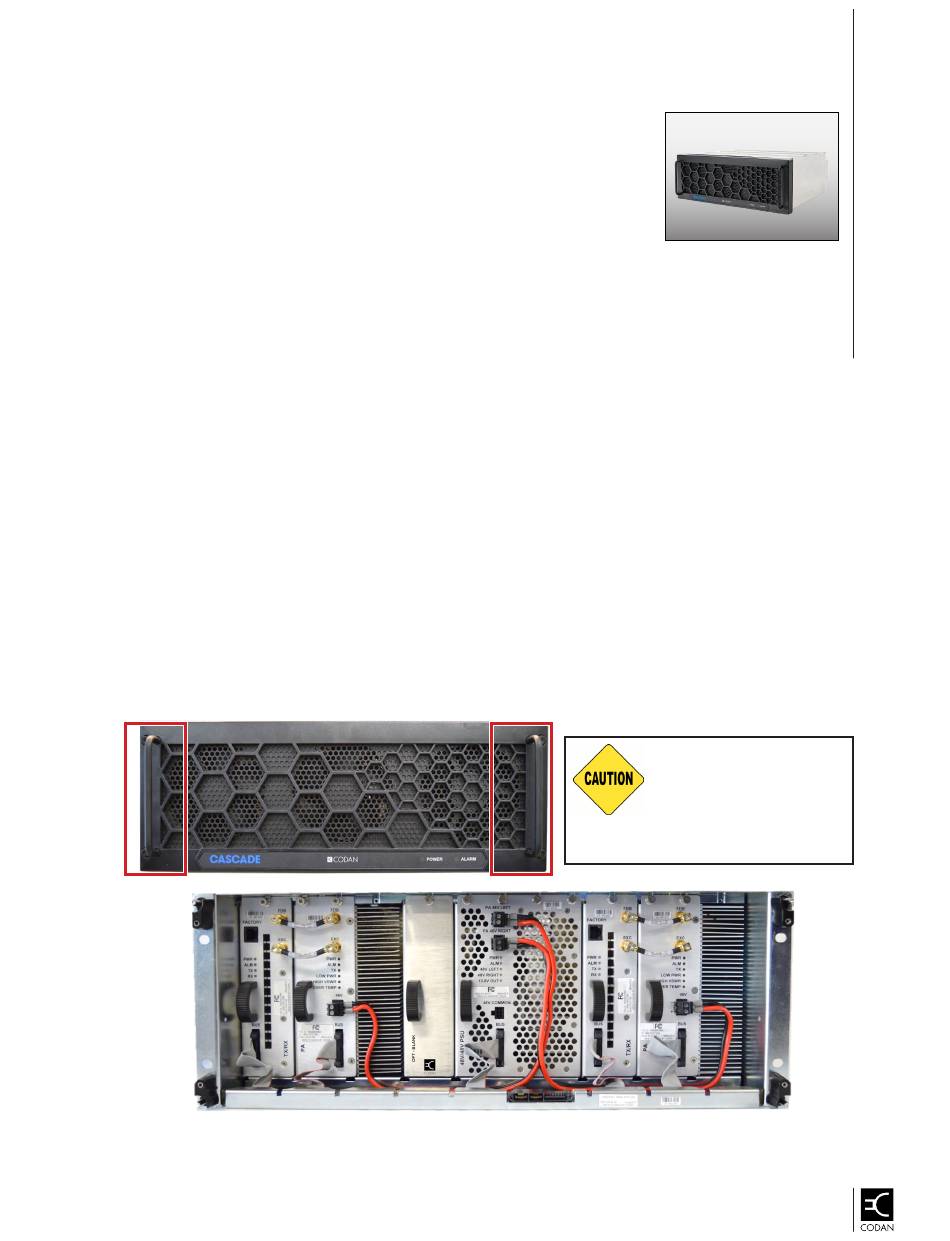

FIGURE 4: CASCADE Front Panel and Installed Modules
DO NOT LIFT the system
by these handles. The
handles are designed to
remove and install the
front panel, not to bear
weight.
Cascade System Modules Operation Guide
OG-CASC-SYS-MOD-1-0-0P
