A 13.8V auxiliary connection is also located on the back of the enclosure. The connection polarity is
labeled on the back of the enclosure (see Figure 8).
Polarity Labels
FIGURE 8: Power Supply Rear Panel – Connection Polarity

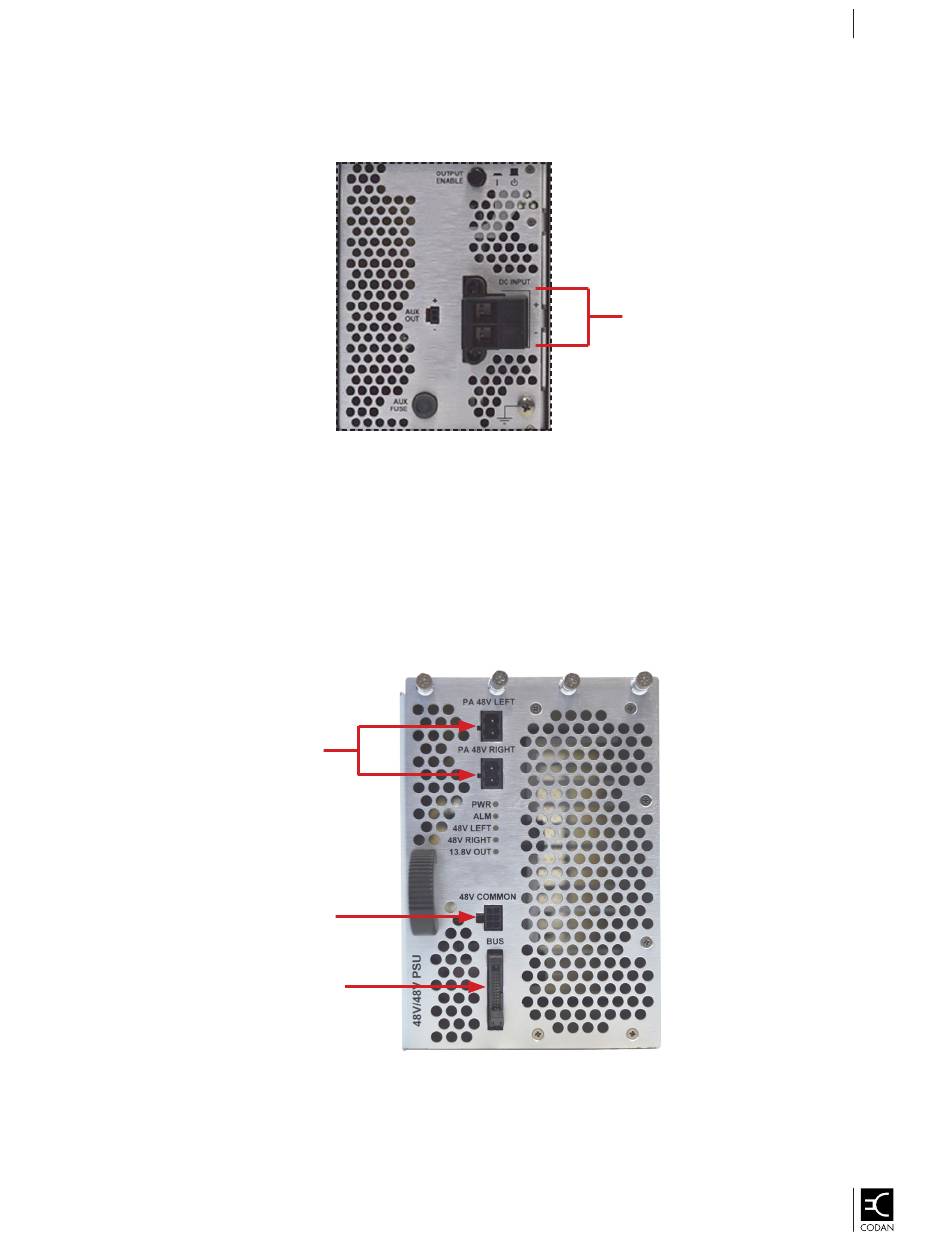

On the front the power supply are four connectors (see Figure 9). The top two connectors are
intended for connection to the two power amplifiers. The six-pin 48V Common connection must be
connected to the Front Interface Board (FIB) using the appropriate cable.
The last connector on the front bottom is used to communicate with the other CASCADE components
The connector uses a ribbon cable and is connected to the FIB in the connector (J5).
Power Amplifier Connectors
Six-Pin FIB Connector
Locking Jaw Connector
FIGURE 9: Power Supply Front panel Connectors
